CNC Guru
Posts: 396
Joined: Mon 20 Nov , 2006 18:19 pm
Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
Location: East Midlands, UK
CNC Guru
Here is the first part of the drawing - end view
Attachments:
- 280 lathe cross slide end view
- 280VS cross slide end view.jpg (166.97 KiB) Viewed 6387 times
CNC Guru
Posts: 396
Joined: Mon 20 Nov , 2006 18:19 pm
Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
Location: East Midlands, UK
The other 2 views.
Tolerances unless otherwise stated are:
0 & 1 decimal place +/- 0.25
2 d.p. +/- 0.1
3 d.p. +/- 0.01
Andy
Tolerances unless otherwise stated are:
0 & 1 decimal place +/- 0.25
2 d.p. +/- 0.1
3 d.p. +/- 0.01
Andy
Attachments:

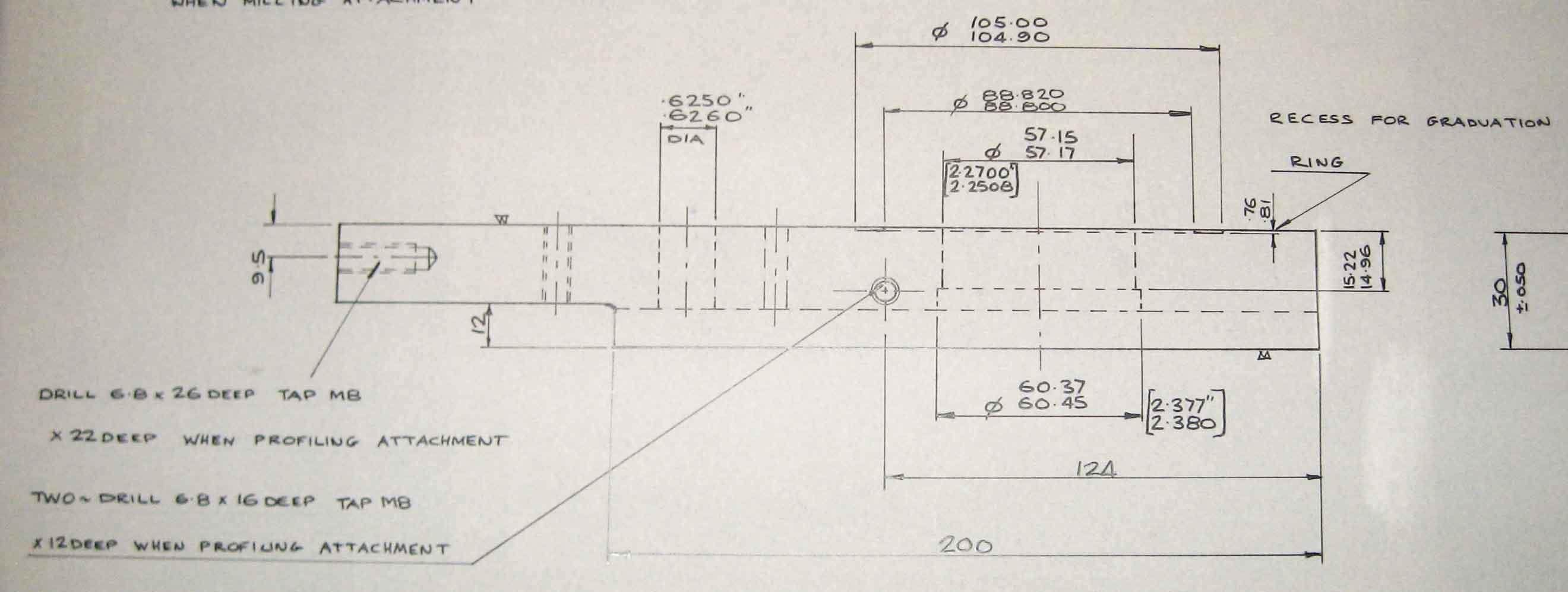

- MVS100/506 side view
- 280VS cross-slide side view.jpg (88.08 KiB) Viewed 6379 times

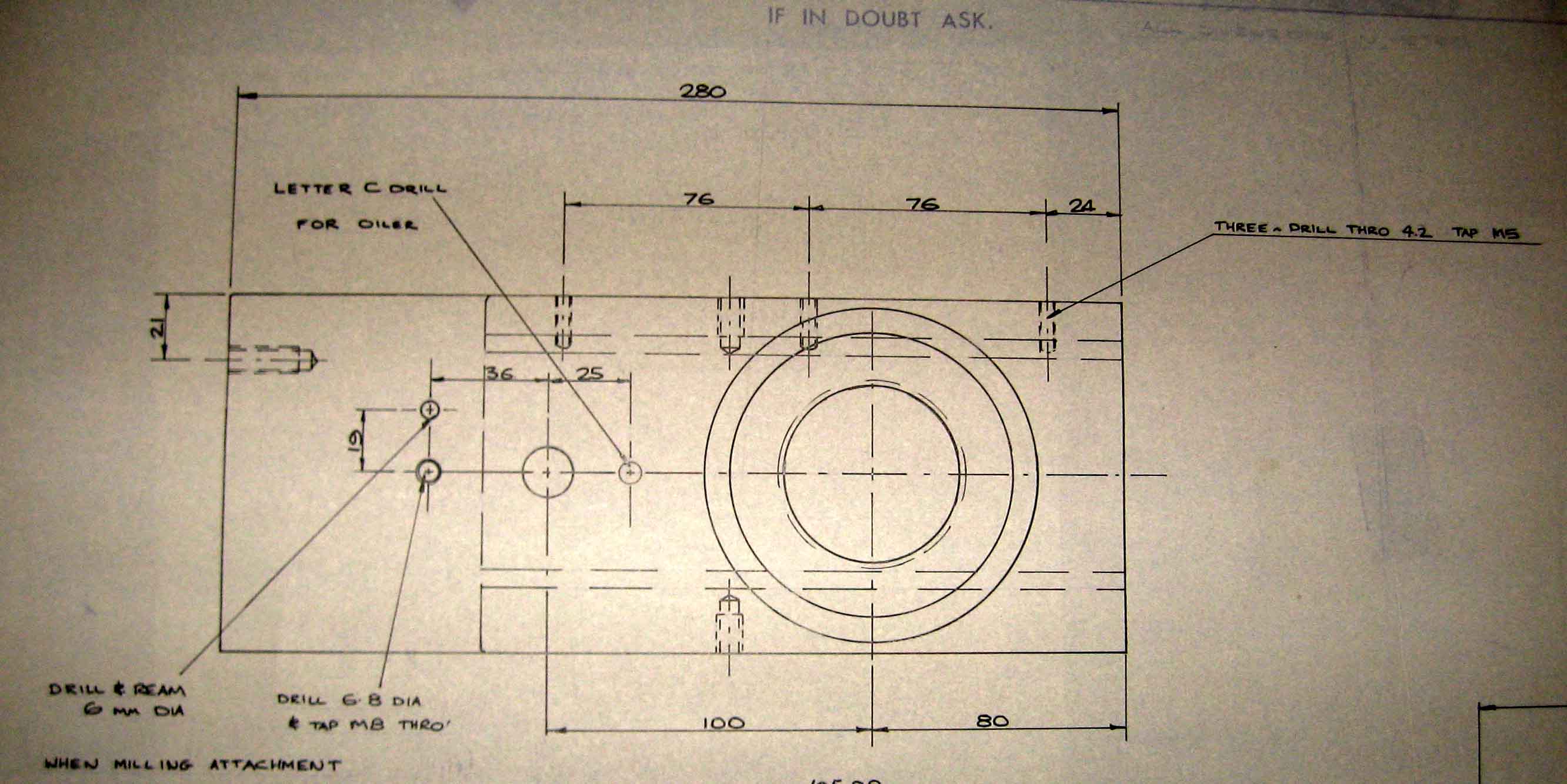

- MVS100/506 top view
- 280VS cross-slide top view.jpg (170.33 KiB) Viewed 6379 times
