Cable Diagrams

Roy · Mon 05 Feb , 2007 20:55 pm

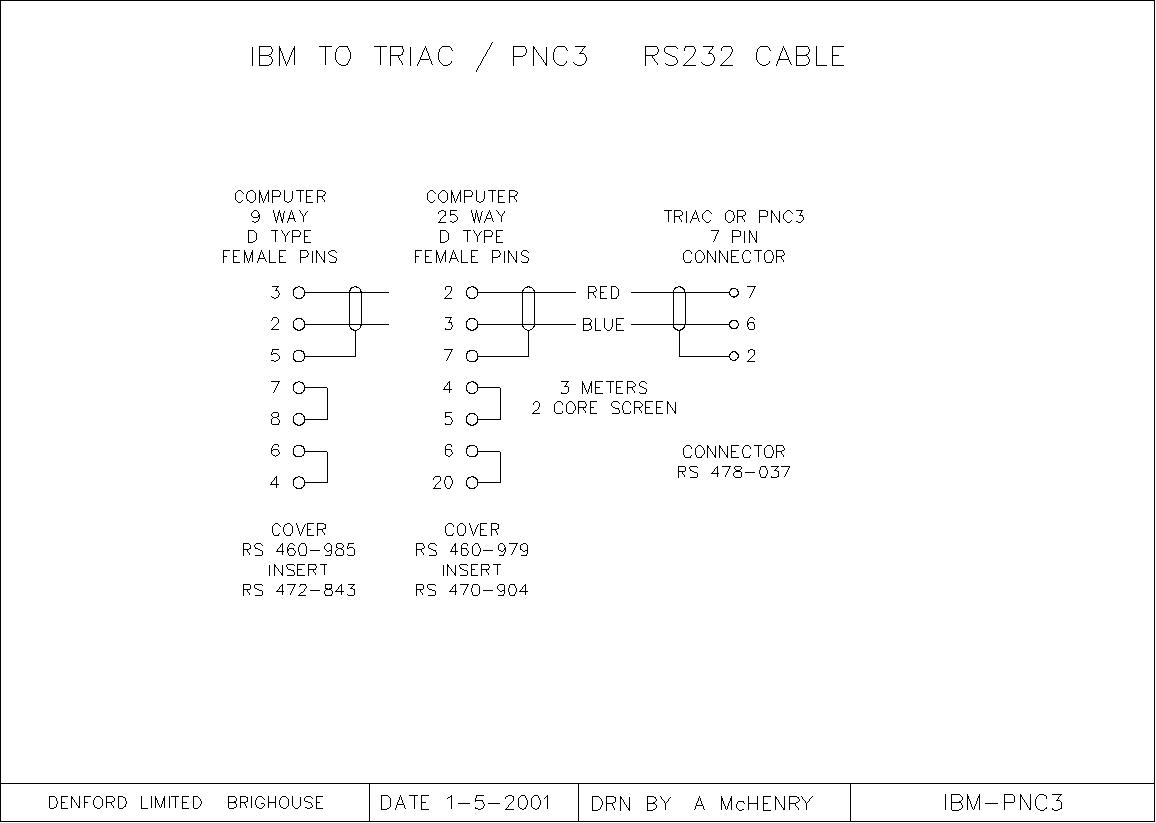

As i am not fully up to speed with wiring diagrams, could some one tell me on the 'IBM to TRIAC' drawing below.
What the 'loop' symbol from pin 2 on the 7 pin connector stands for.

Cheers
Roy

bradders · Tue 06 Feb , 2007 8:23 am

Roy,

Its the interwoven metal screen wire that surrounds the other plastic coated cables. Therefore you want "Screened cable" to make up the final cable

Tue 06 Feb , 2007 9:55 am

There was a bit of a discussion on this cable here:

viewtopic.php?t=596

Roy · Tue 06 Feb , 2007 20:23 pm

Thanks, I was thinking that possibly could be the case. But best to check with you experts!

Cheers
Roy

Roy · Fri 09 Feb , 2007 18:12 pm

Hi I have got some cable which has a foil shield, will this do the job?

Cheers
Roy
