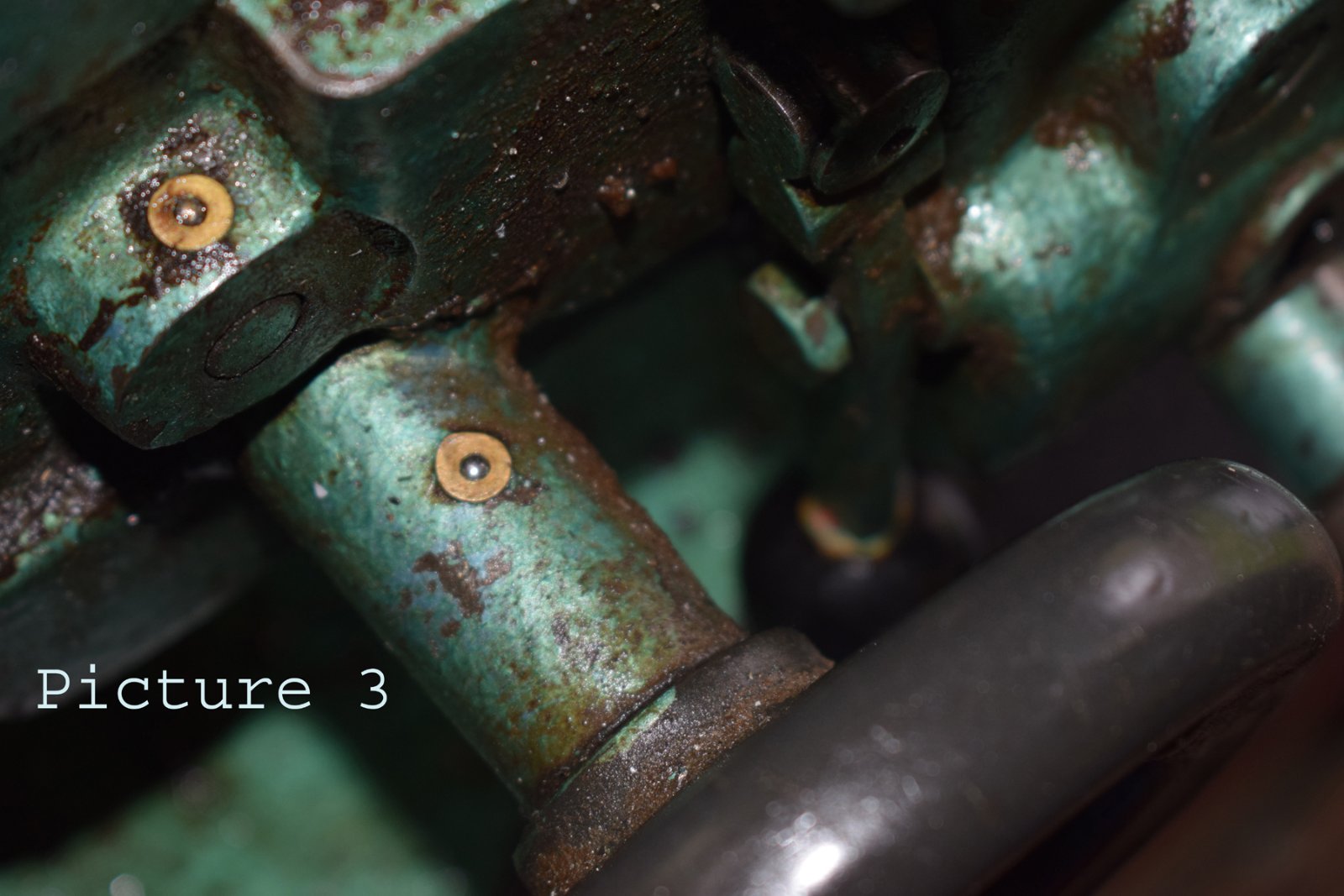

Is this lever just for disabling the gearbox. If I change to other position then the lead screw stops turning

DSC_1100 copy.jpg (223.21 KiB) Viewed 5559 times

For closing the half nuts. Does this work the x feed as well as longitudinal

DSC_1105 copy.jpg (179.35 KiB) Viewed 5559 times

What function does this leaver have. Is it for swapping between x feed and longitudinal. The upper position doesnt seem to do any thing.

DSC_1104 copy.jpg (164.43 KiB) Viewed 5558 times

What function does this leaver have. Is it for swapping between x feed and longitudinal. The upper position doesnt seem to do any thing.

DSC_1104 copy.jpg (164.43 KiB) Viewed 5558 times

[Artysmarty]

Hi all forgot to say this is my viceroy TDS 1.1 Gb.
I am a newbie just feeling my way round this mc. any help would be greatly appreciated.

Regards

[LesT]

Hi,

Some comments on your posted pictures:

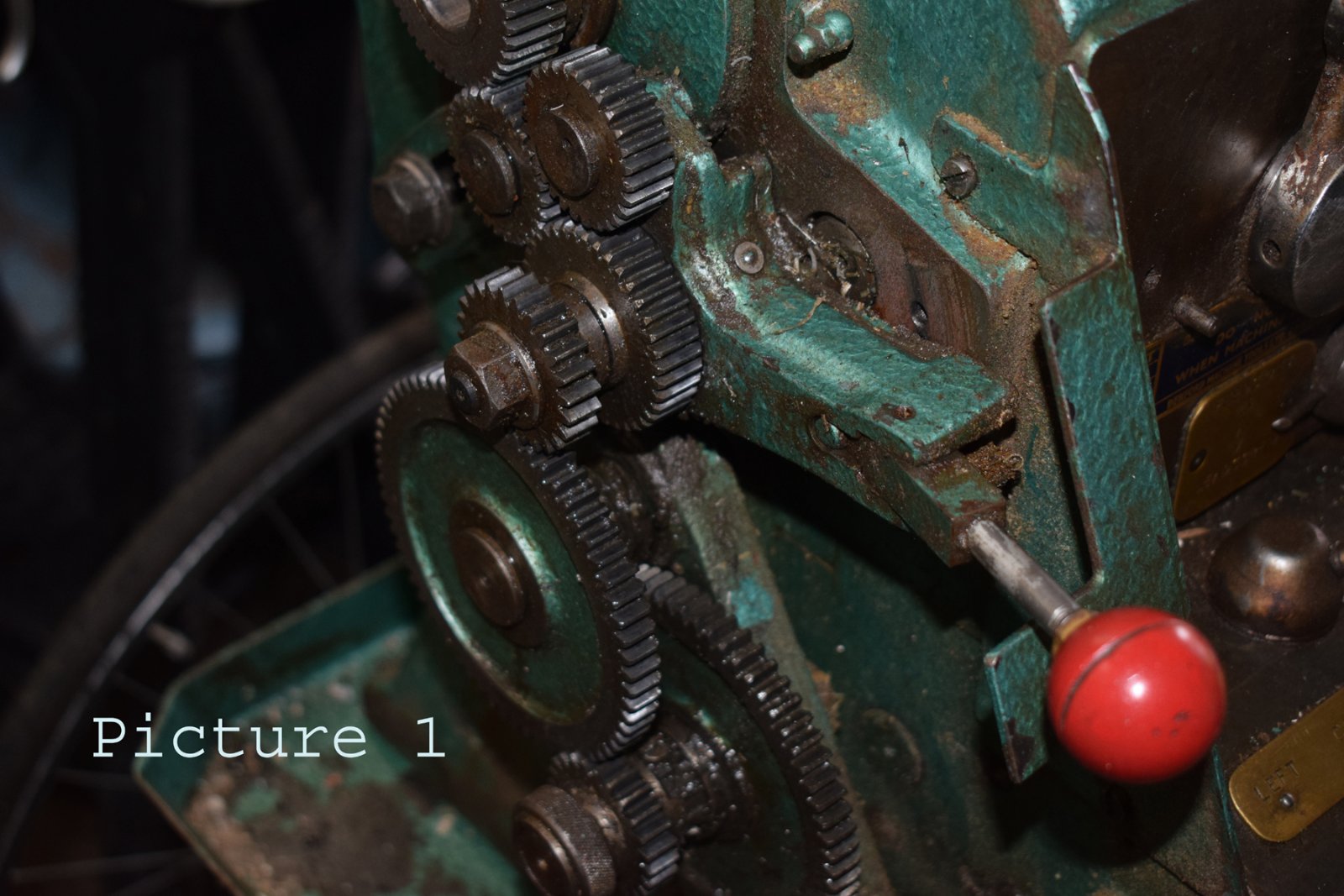

Pic 1: This is the tumbler reverse for changing the rotation direction of the leadscrew or feedscrew.

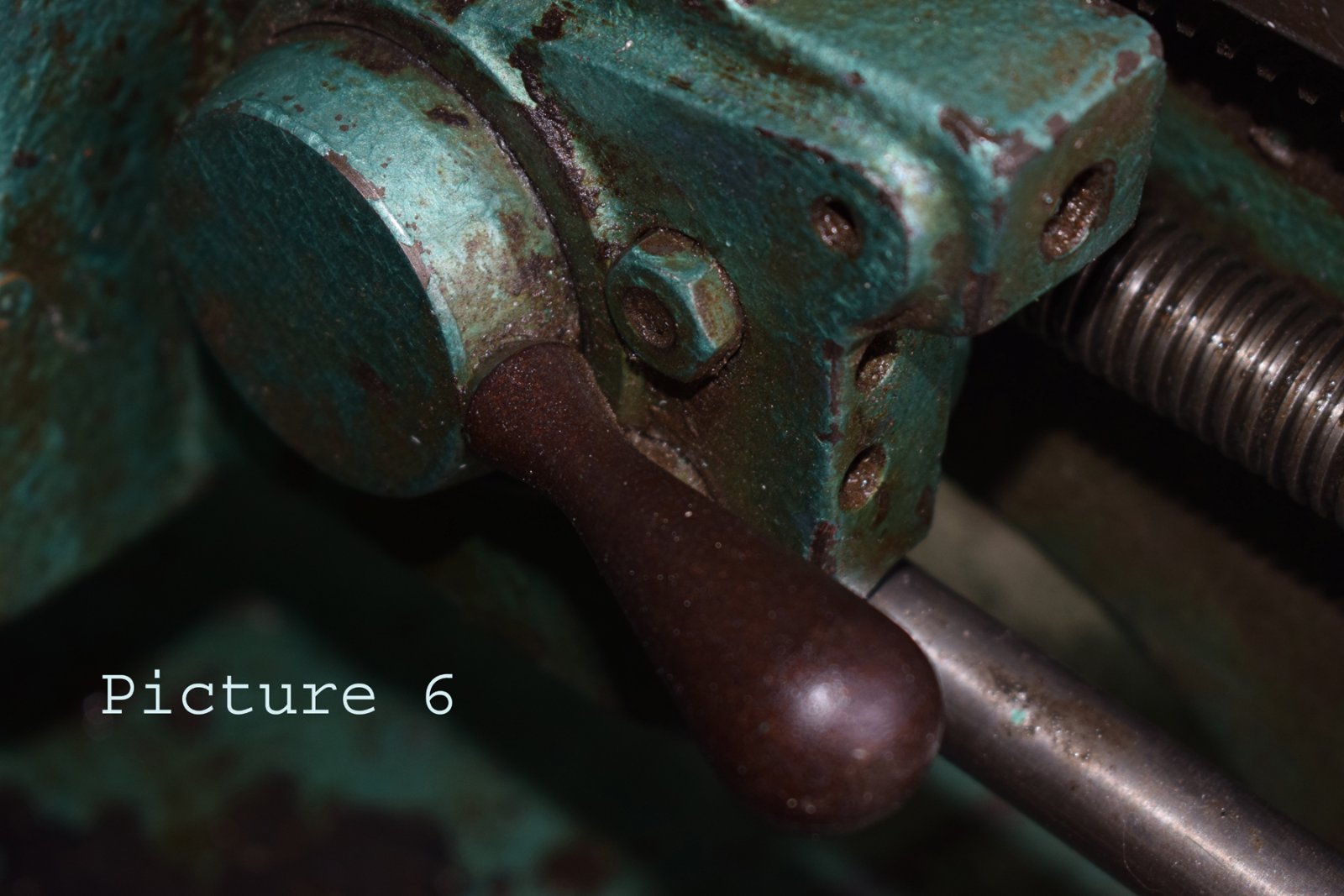

Pic 6: This lever closes the half nuts for threading. You can't do cross feed and threading at the same time. Only one shaft can be driven at a time.

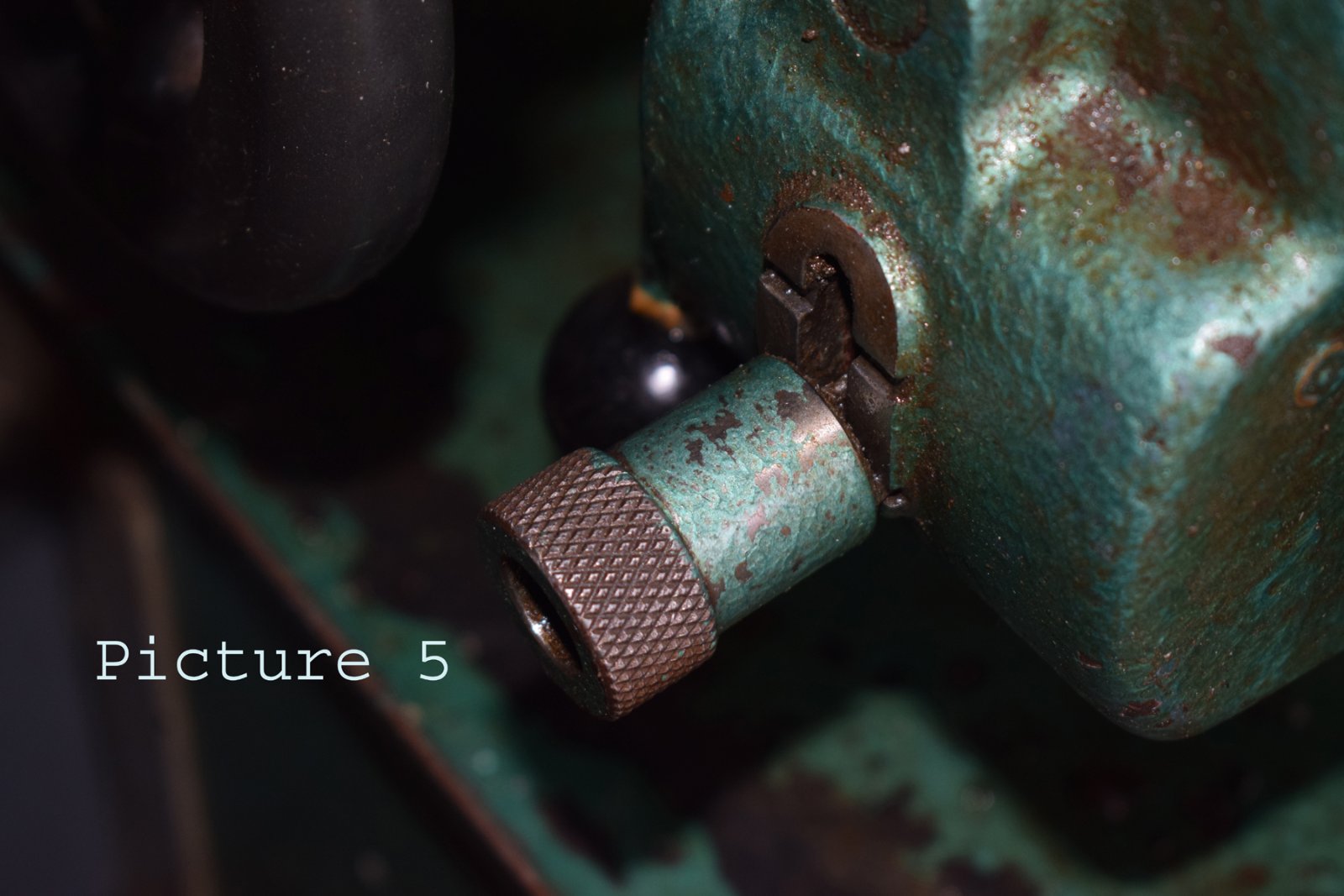

Pic 5: not sure.

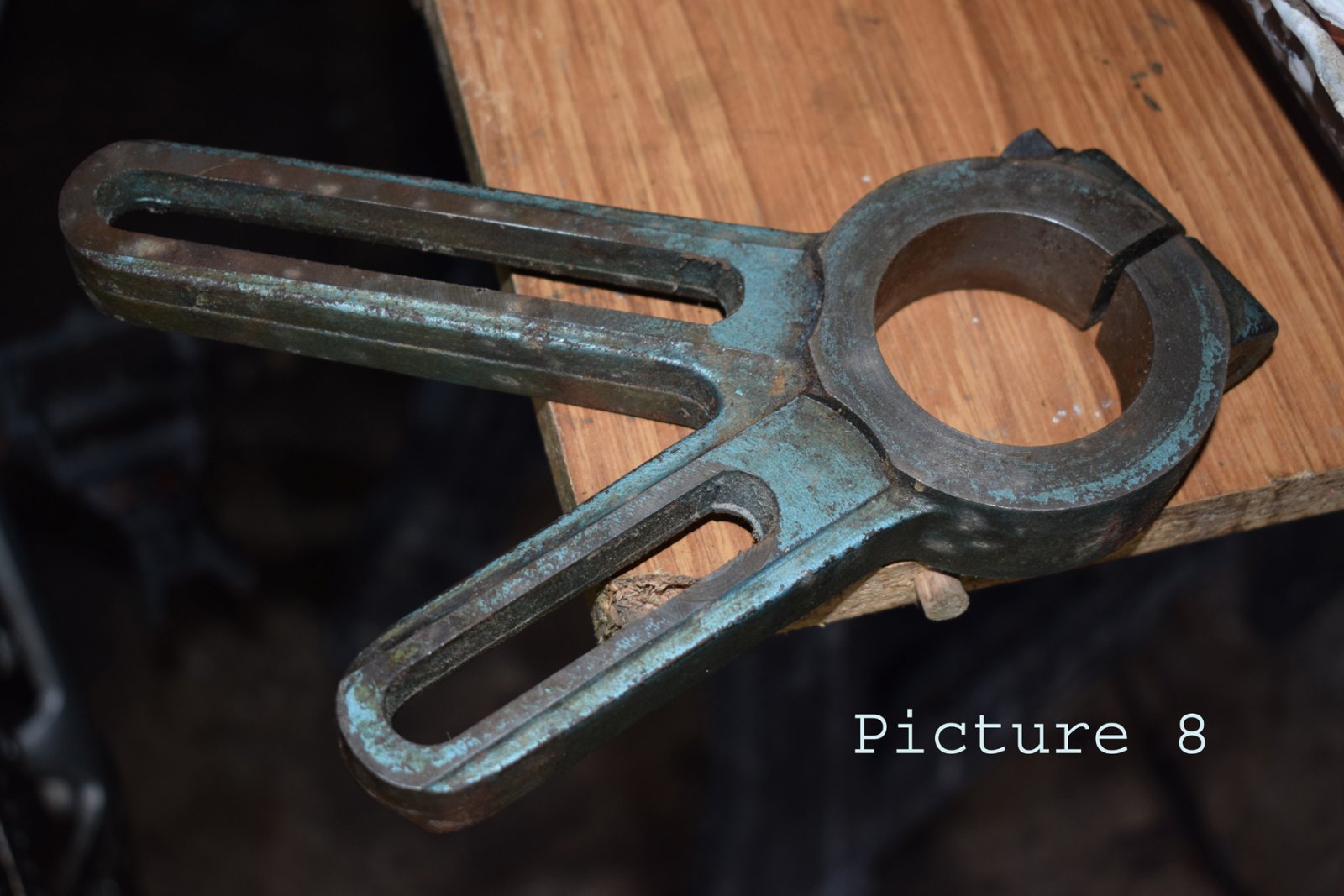

Pic 8: Banjo for change gears.

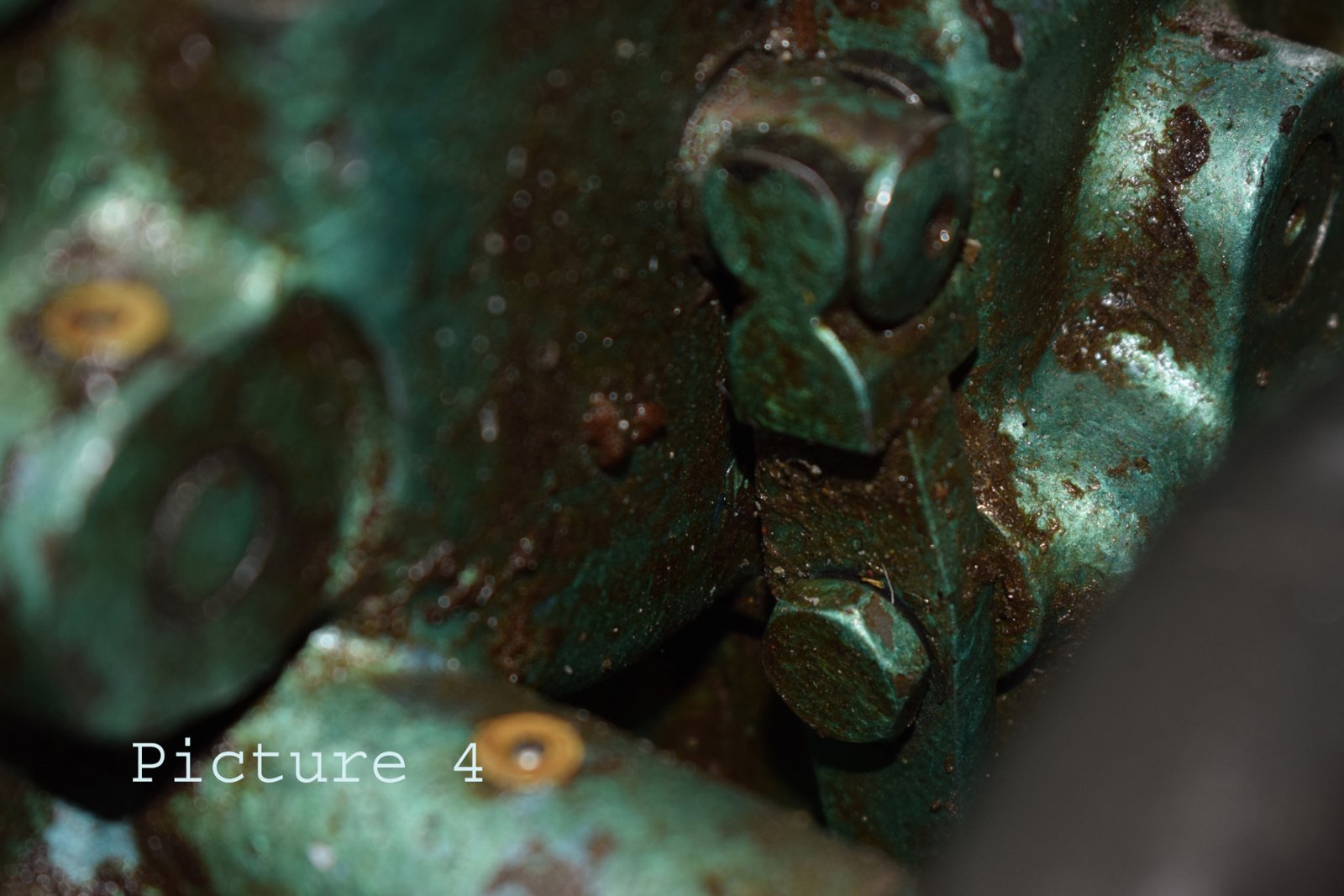

Pic 4: Cross feed selector.
Pic 2: Gearbox gear selector lever. (see chart for different thread selections)

There is a manual available for download here which might help you a bit:

https://cncmanual.com/viceroy-lathe/

Yours looks like an earlier version.

Regards,

Les.T.

[Artysmarty]

Hi Les
Thanks for your input it's much appreciate.
Art
