Customer writes in....
We have an old Microrouter Compact and need to replace the "old style" Emergency Stop Switch with the new style Emergency Stop Switch that has 4 prongs. Please tell us how to switch out from the old style to the new style. Thank you.
Emergency Stop -Old Style to New Style -Microrouter Compact
Moderators: Martin, Steve, Mr Magoo
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Keep the wire pairs together (which are connected to the same block) - if there is more than one pair on the old estop (?)
Then wire them to 11-12 and 21-22 as pairs.
It does not matter which wire of the pairs goes to 11, just as long as the other wire of the matching pair goes to 12
Then wire them to 11-12 and 21-22 as pairs.
It does not matter which wire of the pairs goes to 11, just as long as the other wire of the matching pair goes to 12
- Attachments
-

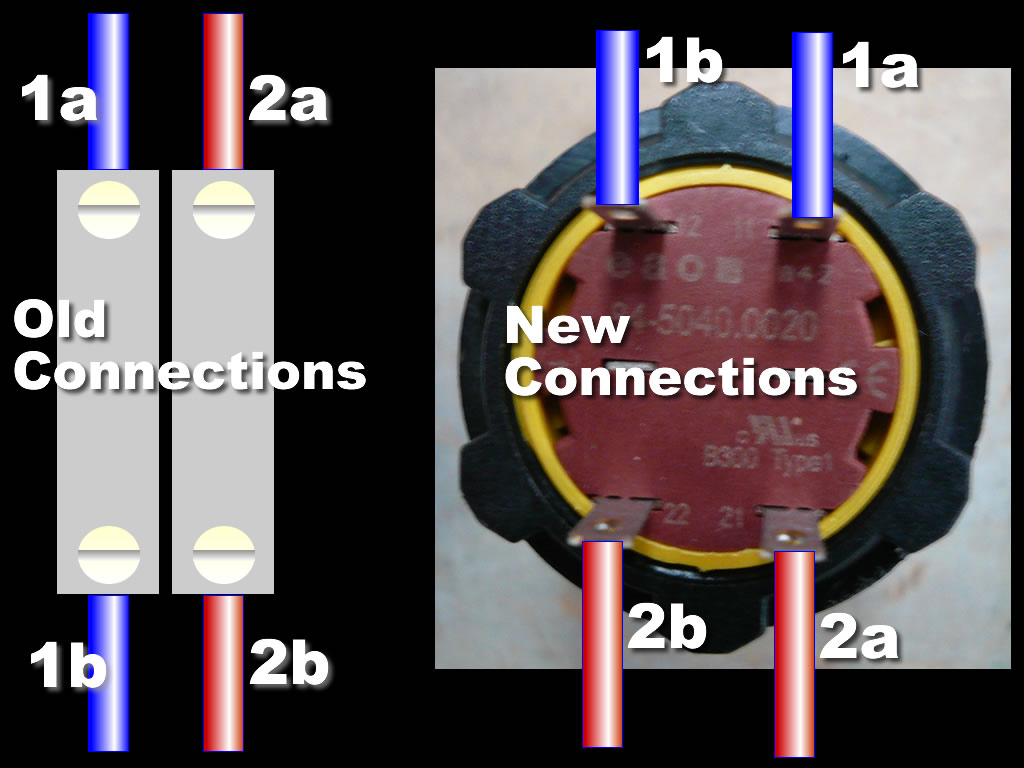

- NewEstopConnections.jpg (103.5 KiB) Viewed 12927 times
