Denford cyclone E

Post by malutki69 » Mon 26 Sep , 2016 13:39 pm

Hello
Does anyone have a wiring diagram for denford cyclon E. Please help i can not find it anywhere. Regards

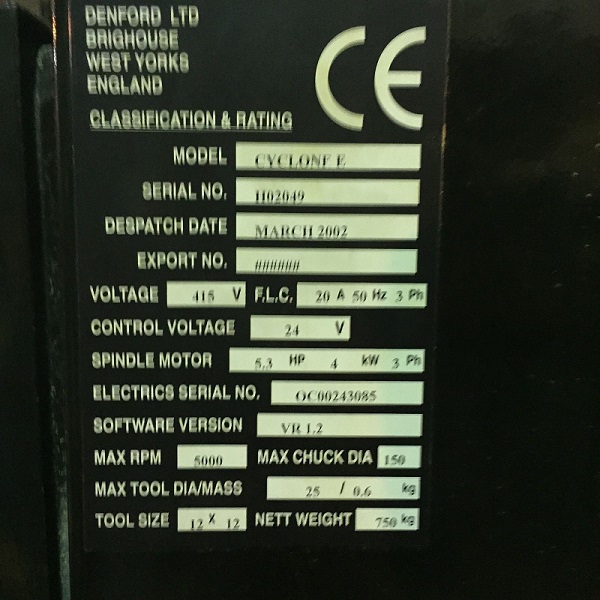

Attachments
Top
Martin
CNC Guru
CNC Guru
Posts: 1916
Joined: Fri 24 Feb , 2006 17:09 pm
Location: Brighouse

Re: Denford cyclone E

Post by Martin » Tue 27 Sep , 2016 9:19 am

These drawings are from Jan 1997.

DM8 Toolpost & KEB Inverters.
Attachments
CYCLONE.pdf
(6.07 MiB) Downloaded 898 times
Top
malutki69
CNC Apprentice
CNC Apprentice
Posts: 54
Joined: Sat 10 May , 2014 22:35 pm

Re: Denford cyclone E

Post by malutki69 » Tue 27 Sep , 2016 13:01 pm

Hello
Martin thank you very much for your help :D . Maybe you have also manual for the machine?. Regards
Top
Martin
CNC Guru
CNC Guru
Posts: 1916
Joined: Fri 24 Feb , 2006 17:09 pm
Location: Brighouse

Re: Denford cyclone E

Post by Martin » Tue 27 Sep , 2016 15:13 pm

I can only find a copy of the TU150E which was made for Harrisons. It's the same as the CycloneE but is painted differently & the software has a darker background than the CyloneE.
Attachments
TU150E-Harrison-CNC-Lathe.pdf
(3.21 MiB) Downloaded 578 times
