Converting my 280synchro to single phase.

Post by Pete. » Sat 31 Jan , 2009 23:38 pm

I recently bought a Viceroy 280 synchro which was fitted with a 3-phase motor and pump. Since I don't have 3-phase power and didn't want to run a 3-phase converter and lose the stock buttons I decided to convert the machine to single phase.

Before you start, make sure you take photos and notes of all the wiring for triggering the contactors, because you need this to rebuild them and it's no mean feat for a novice. I took many photos and still struggled.

Firstly I found that the pull-in coils in the contactors would not work on 240V. After searching for 240V coils then researching the cost of new contactors I set-about seeing if I could convert my coils to work the contactors on 240V. I figured if I could remove a good number of turns from the coils they should pull about the same current on the lower voltage and hopefully work the contactors ok. I tried this, and found it worked. The pictures below show exactly what I did.
Attachments

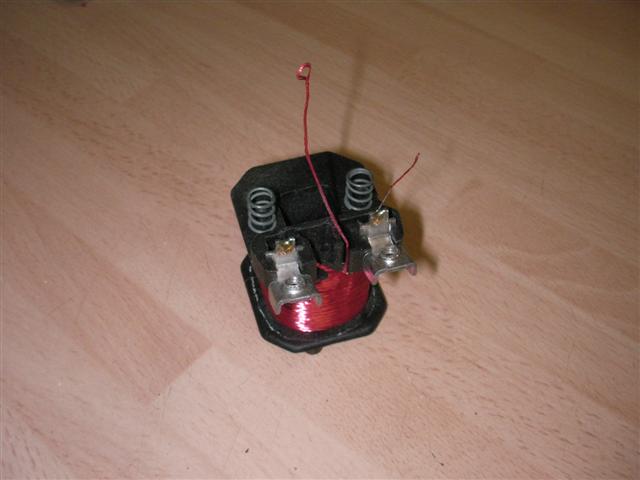

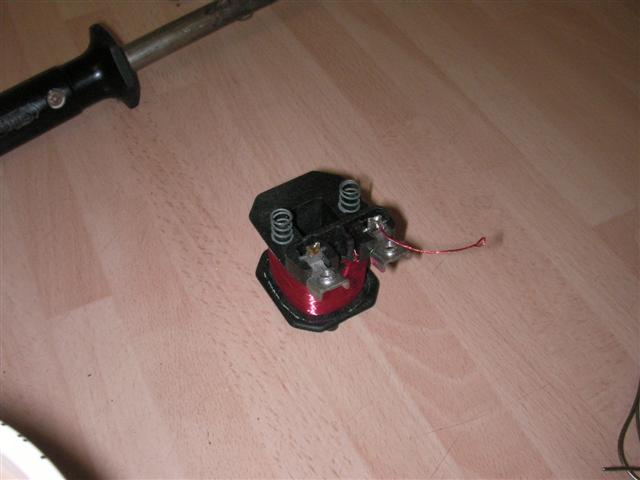

Stock winding

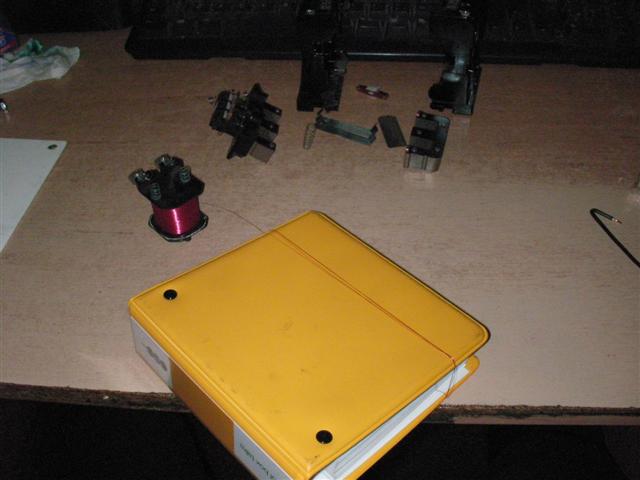

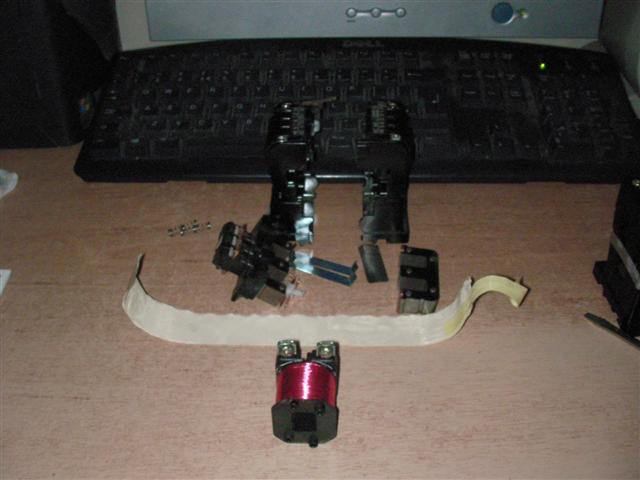

Split the contacotor to remove the coil

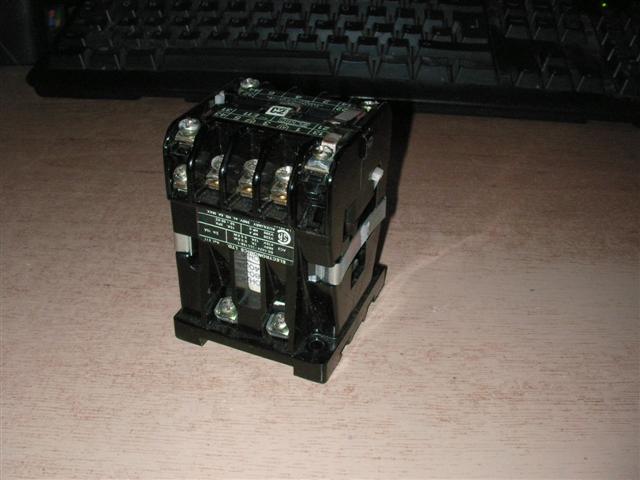

Remove the contactor
Last edited by Pete. on Sat 31 Jan , 2009 23:57 pm, edited 1 time in total.

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Post by Pete. » Sat 31 Jan , 2009 23:42 pm

Now I un-wound the contactor. I didn't count the turns I removed but there must have been a thousand or more. I then reinforced the tail for soldering by making half a dozen loops and twisting them together.
Attachments

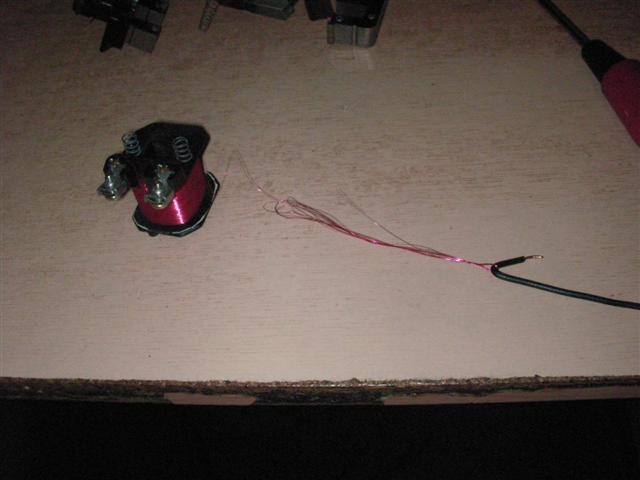

Make a hook tool to wind the end-loops together
Wind the end round a suitable card - this is about 5" wide

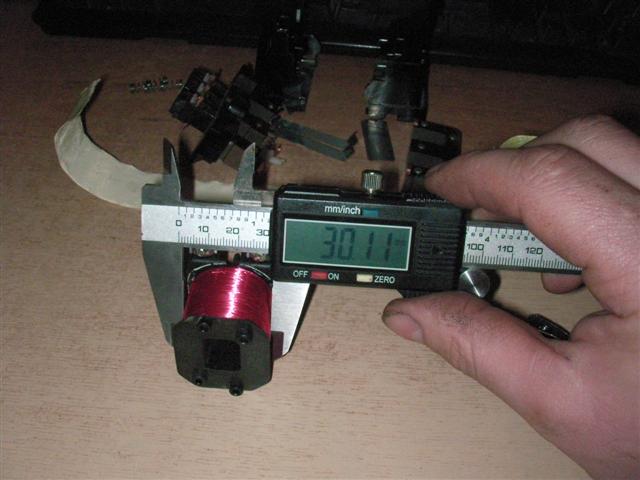

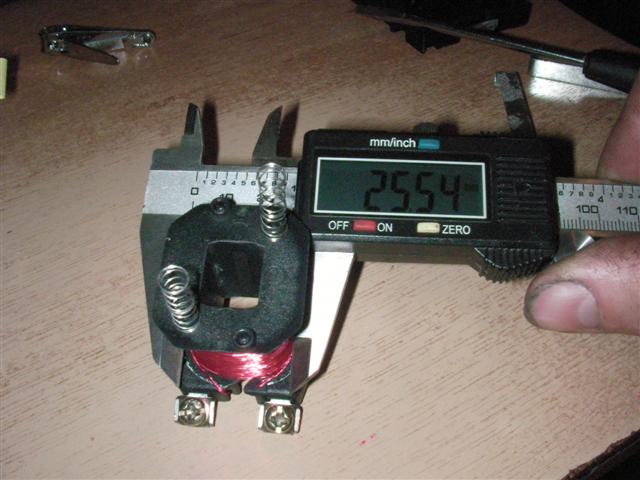

Coil is now un-wound to the size shown. Takes some time.

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Post by Pete. » Sat 31 Jan , 2009 23:45 pm

I twisted the wire, turned it around the coil a couple of turns and scraped the insulation off it for soldering:
Attachments
Soldered winding - ready for taping & re-assembly.
wind it round and then scrape the insulation off with a stanley blade

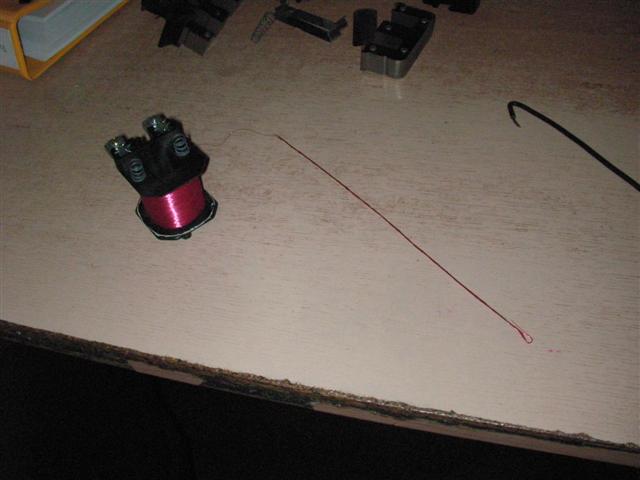

Twist the wire up to give it some strength. If you don't do this sooner or lateer it will break in use.

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Post by Pete. » Sat 31 Jan , 2009 23:55 pm

Now all is left is to re-wind the tape over the coil that you initially removed and re-build the contactor. You should do all three contactors if you want to use all the stock buttons and use a 240V coolant pump too.

The wiring also has to be changed. You cannot use the overload feature on the stop button any more because the single-phase motor will make it trip right away as it draws more current. What I did was to put the supply in the other side and run the motor directly out of the contactor and just use the stop button as, well a stop button.

My single phase motor has a start winding with a capacitor on it and a centrifugal switch, and a run winding wired in parallel with the start winding. In order to reverse the motor I needed to simply reverse the connections of the run winding. To do this I made the fllowing diagram. Note that not all single phase motors will reverse using this method and you should do some research if you plan to do this yourself.
Attachments

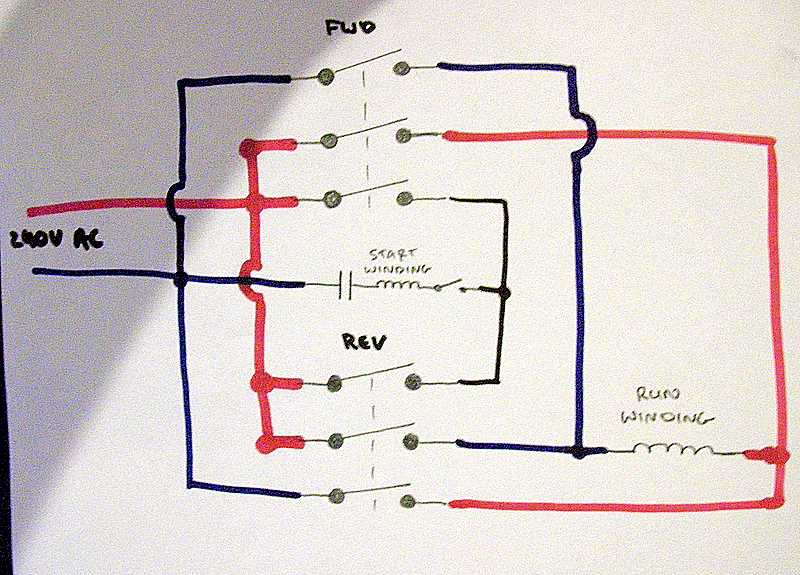

Wiring for reversing single-phase motor.

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Post by Pete. » Sun 01 Feb , 2009 0:11 am

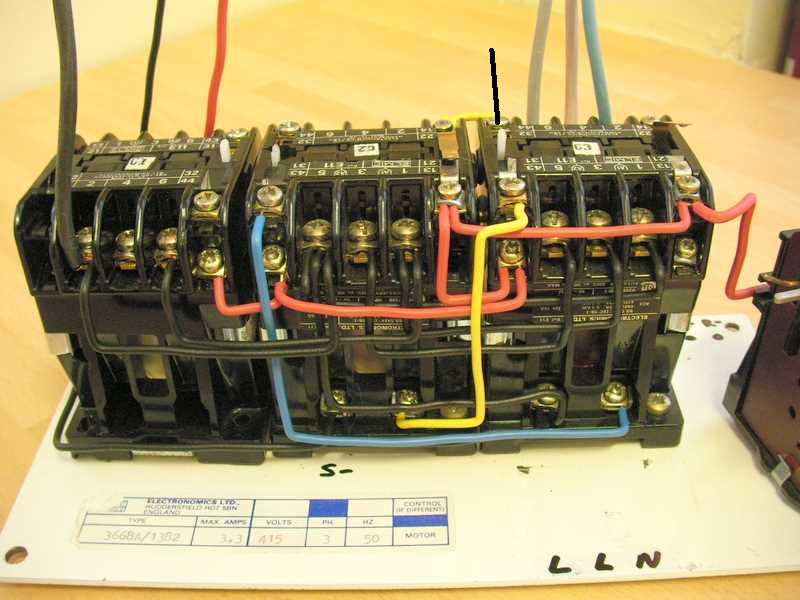

Just to help anyone here is how I wired the contactors for single-phase.
Attachments

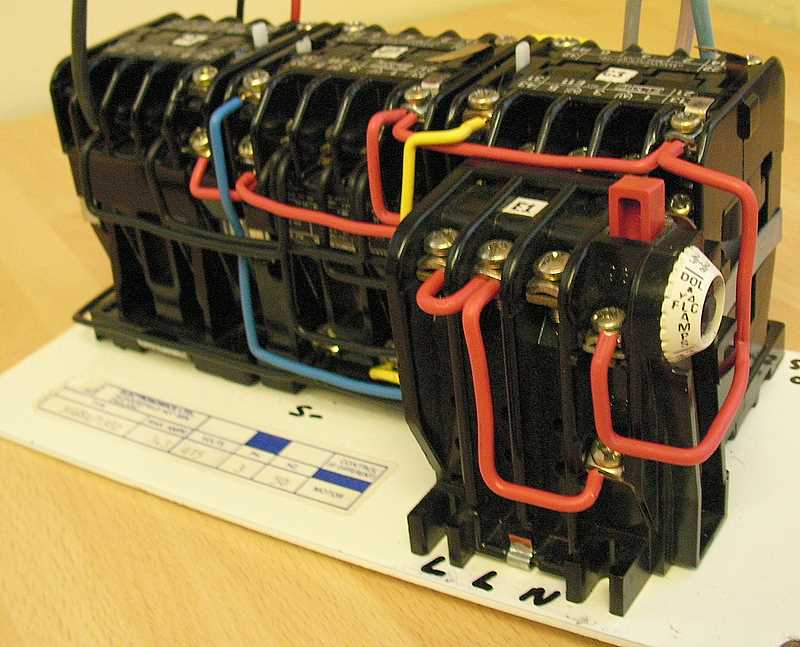

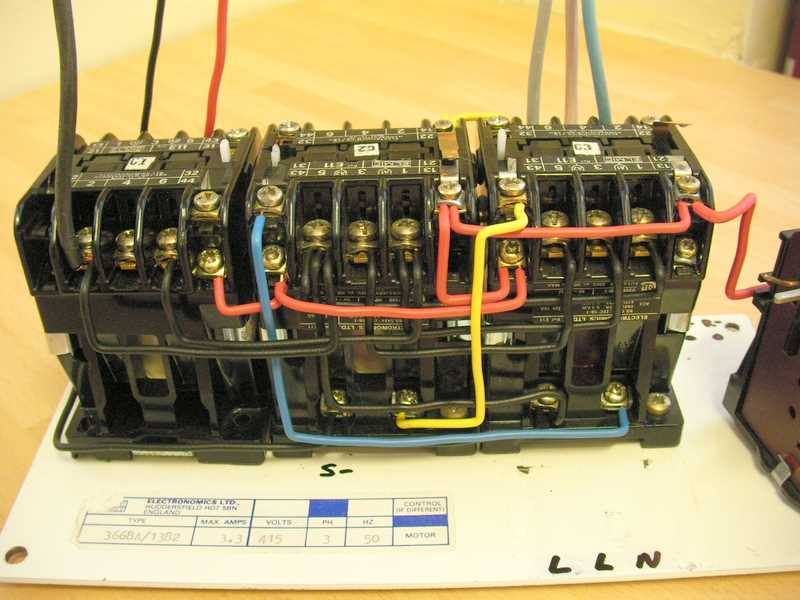

Incoming power goes to contactor C3, not the stop switch/overload. Two live contacts are linked.

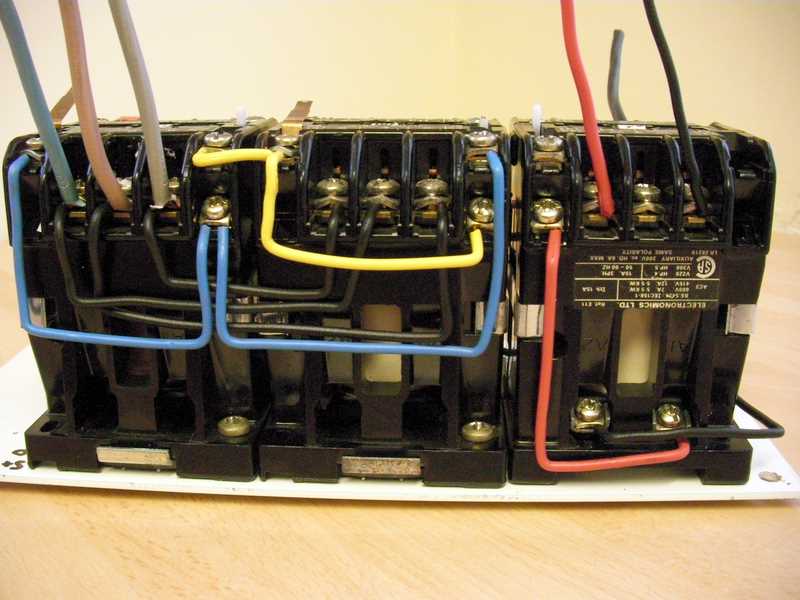

Red/black on the right are pump supply. Brown/blue is run winding grey and far-right black are start winding.
Red wire at front here from centre contact is the link for the safety switches. If you are using the switches cut this out and wire the safetys in line.

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Fri 12 Jun , 2009 22:44 pm

Hi very good post!!!! but i just want to know if it works ??? as am doing my viceroy one right now. :doh:

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Re: Converting my 280synchro to single phase.

Post by Pete. » Sat 13 Jun , 2009 15:40 pm

Hi Graham.

Yes it works perfectly, including the coolant pump. I do have some spare 240V contactors I'd sell if you or anyone else needs them. I got them in case the conversion was less than satisfactory and have no use for them now.

Pete.

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sat 13 Jun , 2009 17:37 pm

HI mate thats good to know! I may want one off you as i snapped the wire but i think i have got the end but how much we talking??? can you tell me how i upload a photo? as i have something for you to look at! thanks

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sat 13 Jun , 2009 17:54 pm

HI mate will i need to unwind some off this as well?
Attachments

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sat 13 Jun , 2009 17:56 pm

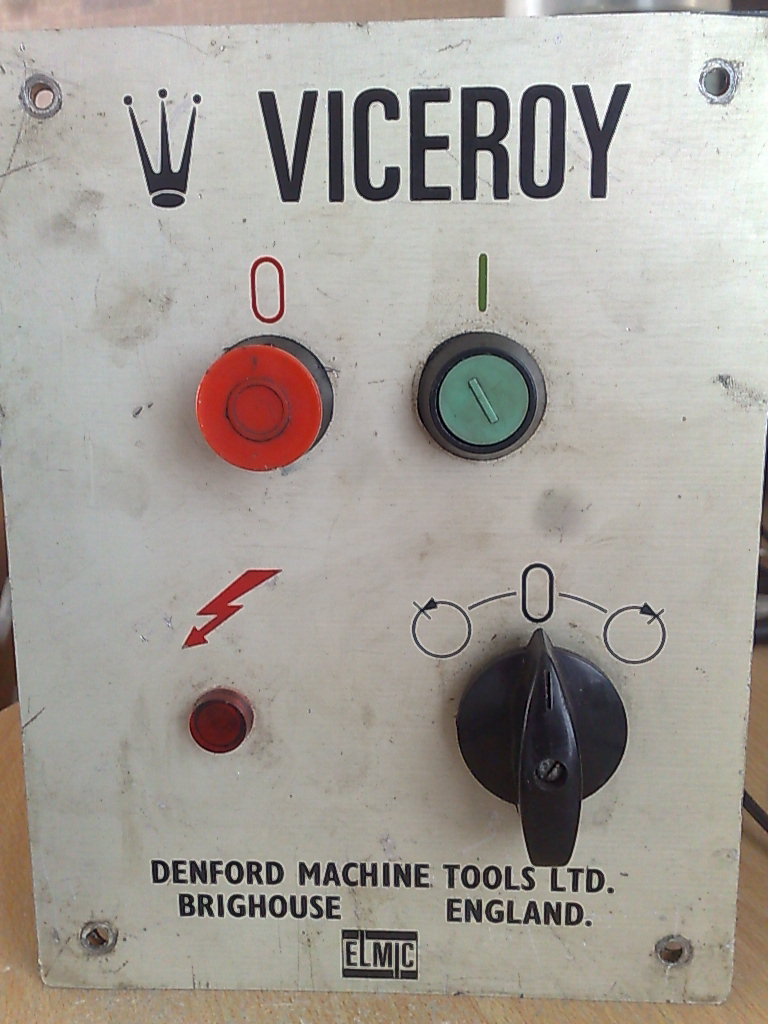

This is the cover off my lathe
Attachments

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sat 13 Jun , 2009 17:57 pm

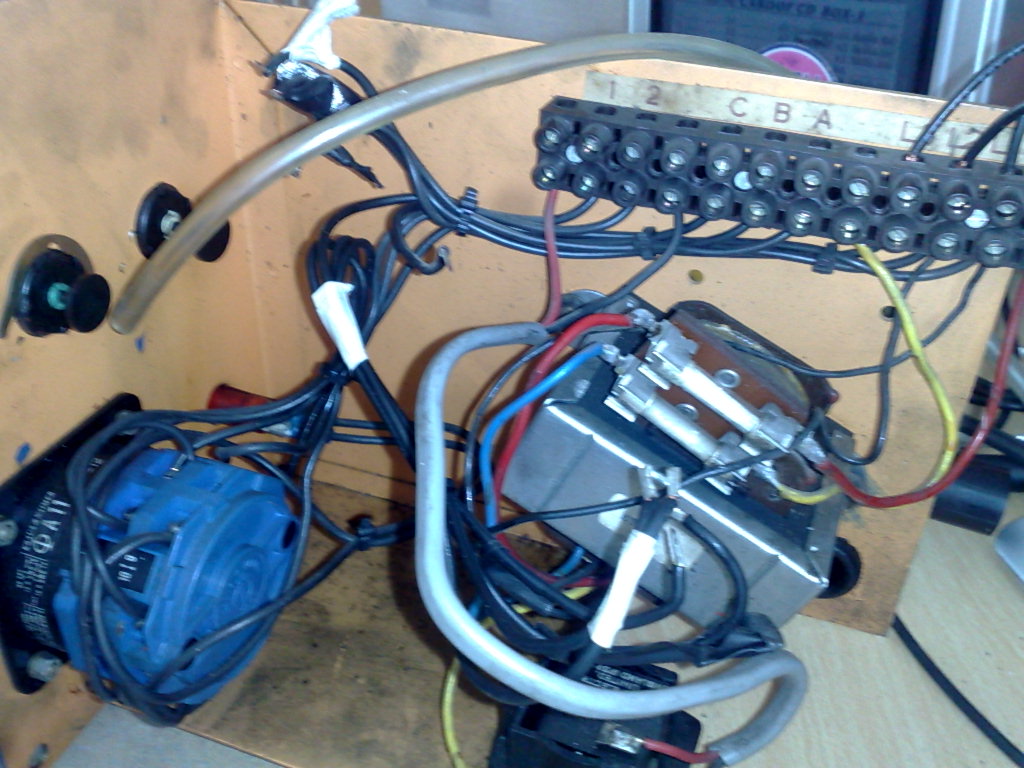

The set up of my lathe
Attachments

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sat 13 Jun , 2009 17:58 pm

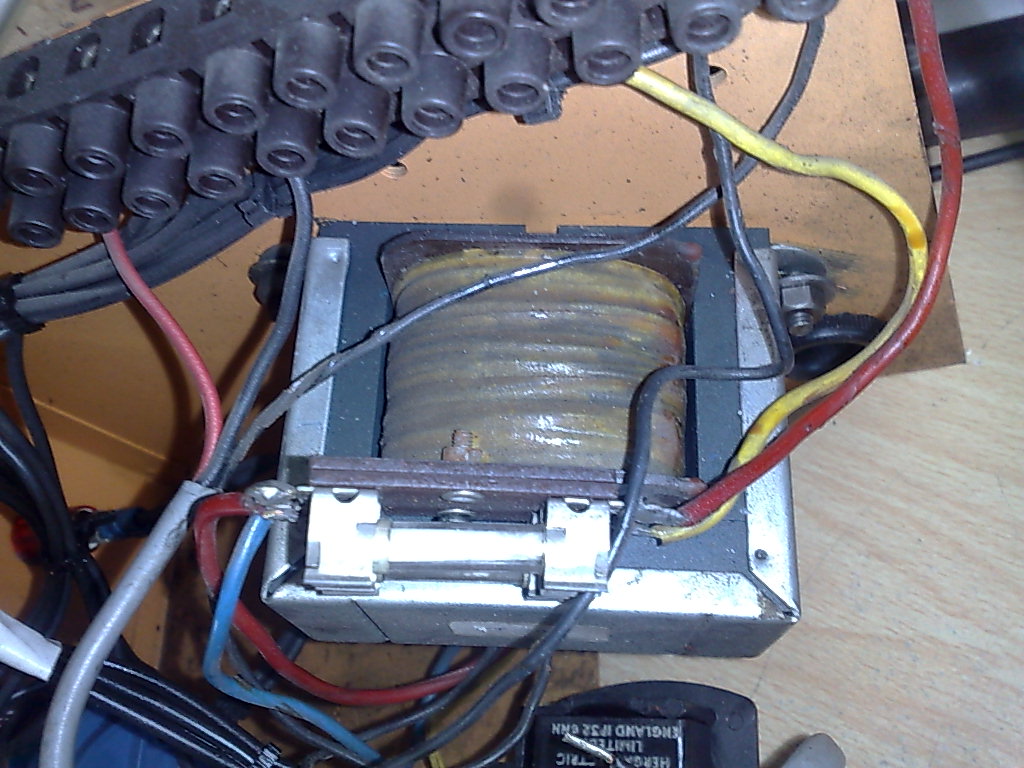

any one know whats this for the little black thing with two wires and a tube coming out of it???
Attachments

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Re: Converting my 280synchro to single phase.

Post by Pete. » Sat 13 Jun , 2009 18:35 pm

On my lathe that transformer only powered the light. I ripped mine out and use an angle-poise lamp instead.

Your switching system is different to mine - my buttons push directly on the contactors and then they latch themselves down. Looks like you have a drum switch in your machine. How many contactors in it?

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sat 13 Jun , 2009 18:44 pm

just the one contacted on it. my lathe's a tds11gb!! metric and yes the switch is a drum for f and r

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Re: Converting my 280synchro to single phase.

Post by Pete. » Sat 13 Jun , 2009 19:48 pm

Does the green button press directly on the contactor top?

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sun 14 Jun , 2009 12:03 pm

Hi look at the photo see the black line the green button hits that!
Attachments

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sun 14 Jun , 2009 12:07 pm

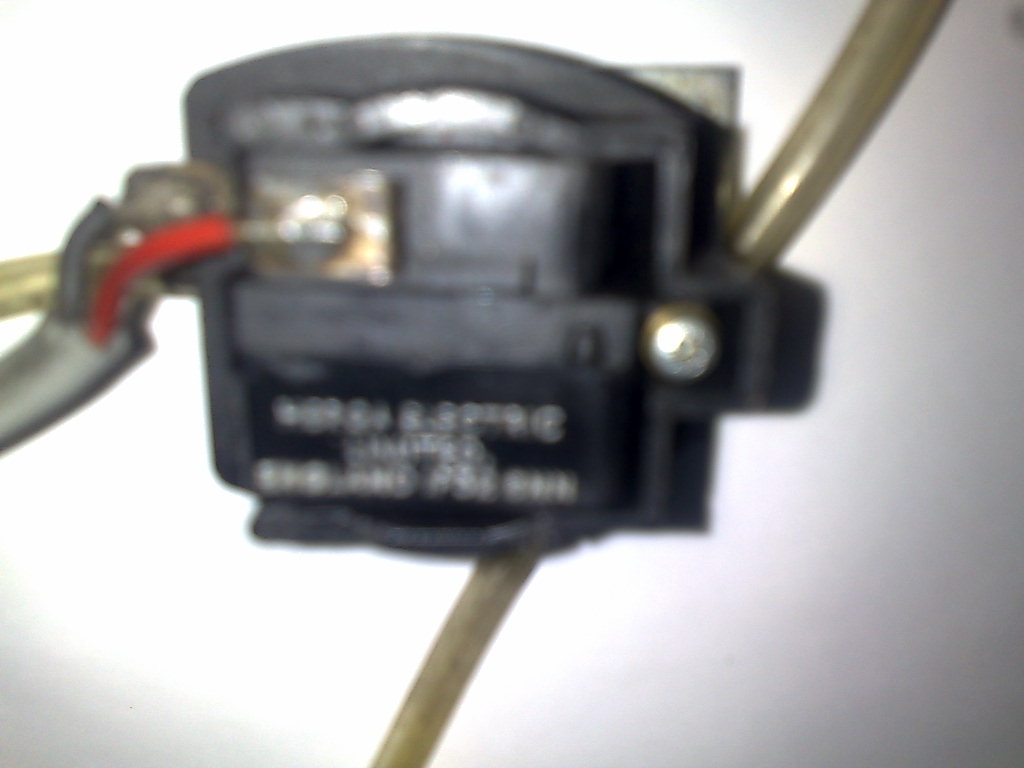

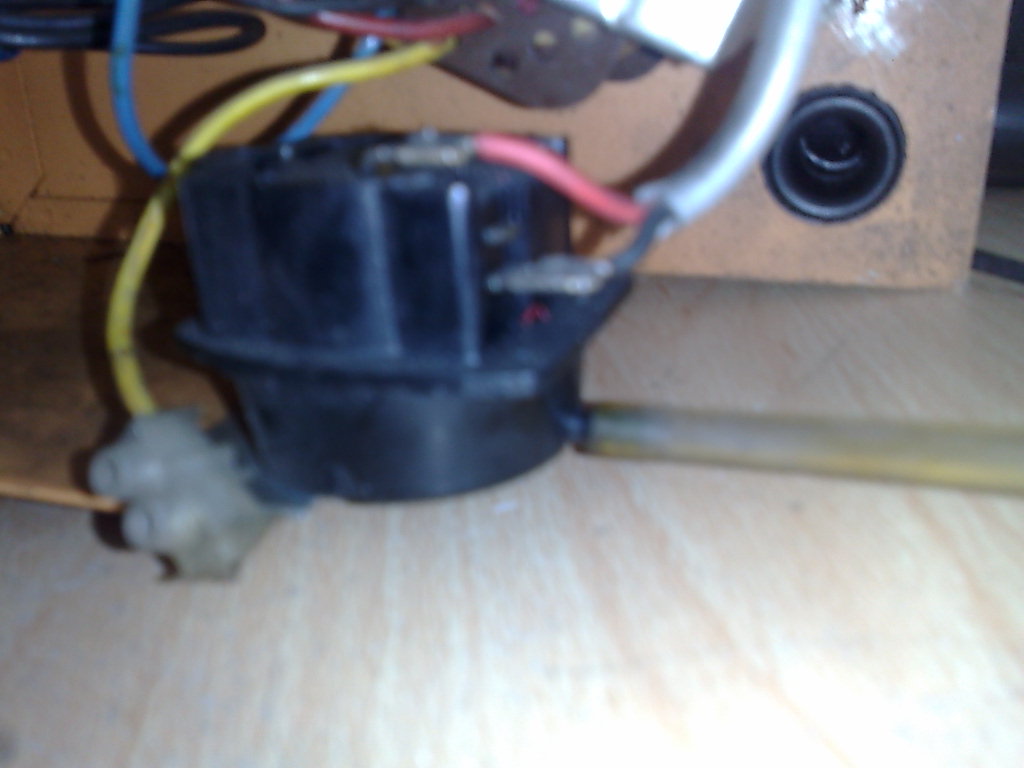

has your lathe got this on? its some sort of air switch?
Attachments

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Re: Converting my 280synchro to single phase.

Post by Pete. » Sun 14 Jun , 2009 12:59 pm

Yes, I had no idea what it's purpose was and it wasn't conneced so I binned that too :)

graham4877
CNC Apprentice
CNC Apprentice
Posts: 47
Joined: Mon 10 Nov , 2008 10:30 am
Location: newcastle uk

Re: Converting my 280synchro to single phase.

Post by graham4877 » Sun 14 Jun , 2009 13:48 pm

HI i know what its for now. its like a dead mans kick switch. right i have everything put back now and it works but when i turn the drum switch left of right it make's contacted what have i got messed up as i think you turn the switch then press the button and it come's on ?

Pete.
CNC Expert
CNC Expert
Posts: 284
Joined: Wed 07 Jan , 2009 9:46 am
Location: Kent, U.K.

Re: Converting my 280synchro to single phase.

Post by Pete. » Sun 14 Jun , 2009 16:21 pm

Aah right, my safety kick-bar has been wired with an electrical contact.
