Here are some photos from the IMO Jaguar Manual.
Sorry its not the whole thing - I just don't have the time to scan it all.
Site Admin
Posts: 3651
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Site Admin
Posts: 3651
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
IMO Jaguar useful pictures from the manual.
Used on Easimill / Turn
and others
Used on Easimill / Turn
and others
Attachments:

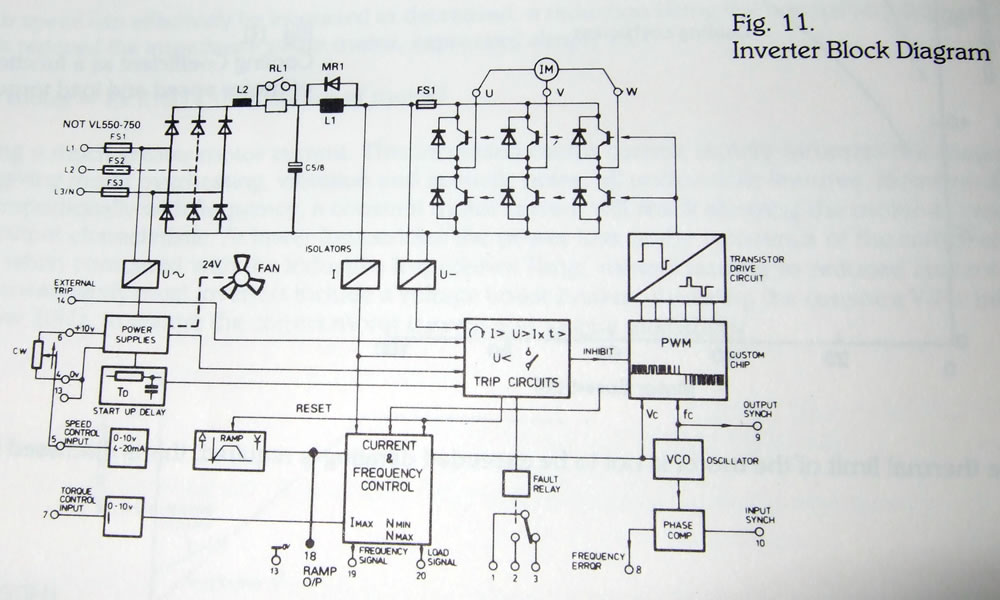

- The Inverter block diagram
- IMO-Inverter-Block-Diagram.jpg (88.17 KiB) Viewed 6517 times

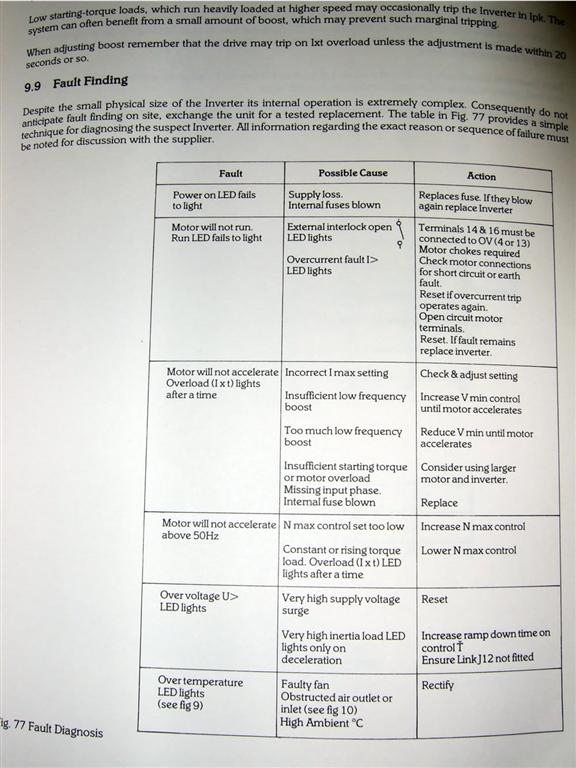

- Fault Finding table
- IMO-Fault-Finding.jpg (72.01 KiB) Viewed 6517 times

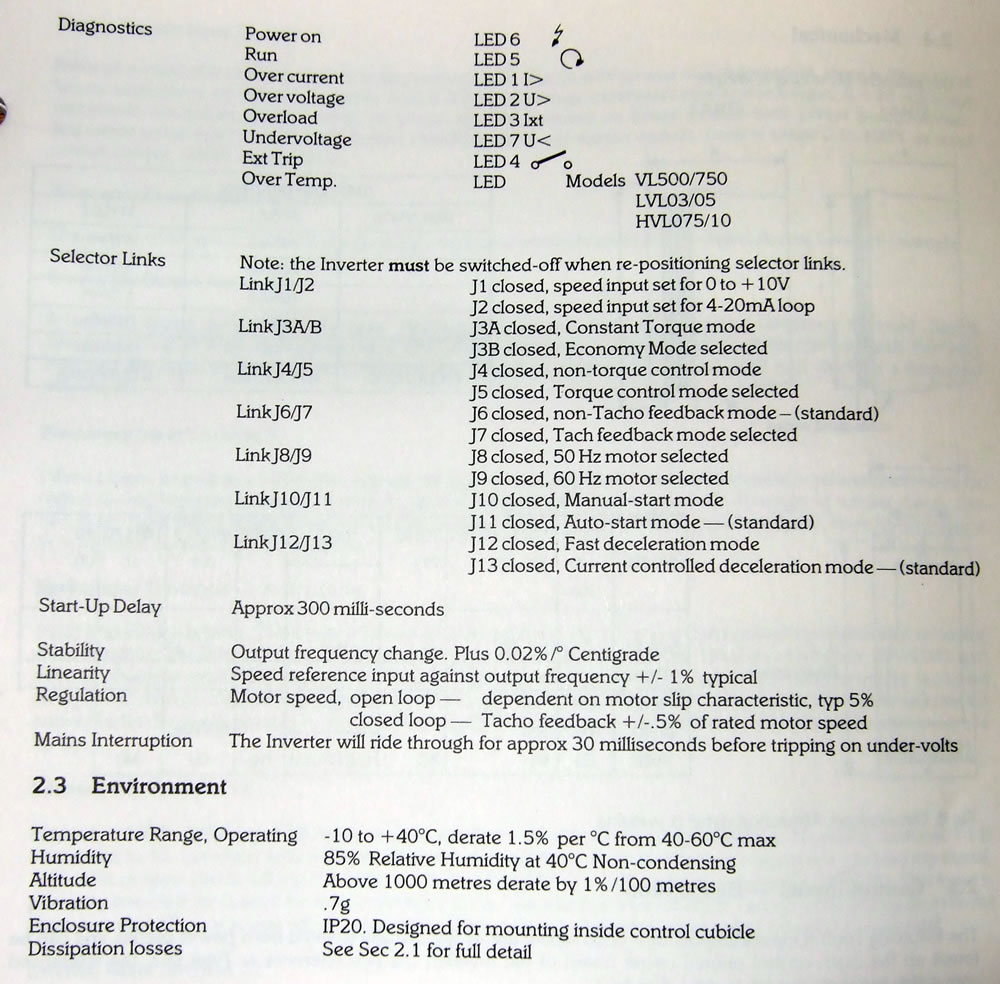

- LED Diagnostics
- IMO-LED-Diagnostics.jpg (187.64 KiB) Viewed 6517 times
- Jaguar Connections
- IMO-Jaguar-Connections.jpg (71.07 KiB) Viewed 6517 times
