TU150E DOS Error Messages

[bradders]

Customer Writes.

We have some questions on our machine (Model TU150E; SN EO5299).

When we turn on the power, we see the following message on screen:
"CMOS checksum error - Defaults loaded"

I have pressed "F1" to skip it, and inserted a MS-DOS 6.22 floppy disc.

After stating & appearing A:/>, drawn out the MS-DOS 6.22 floppy disc & inserted an floppy disc (Disc A)
Disc A is containing ALL the files in "FanucMD for Triac".zip; "FLSTEP Software".zip; "DRIVERS2".zip.
As mention in Denford forum: viewtopic.php?t=1937&highlight=tu150e

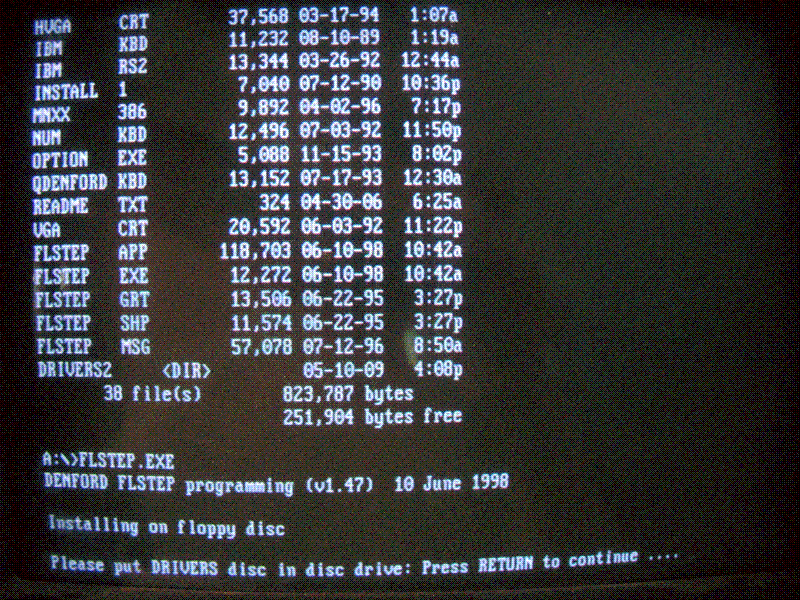

I have run "FLSTEP.exe", & system said (Attachment: "Print_Screen_01.gif"):
"Denford FLSTEP programming (v1.47) 10 June 1998
Installing on floppy disc
Please put DRIVERS disc in disc driver: Press RETURN to continue..."

Question: I don't know what is "DRIVERS disc", How & where can I obtain this disc?

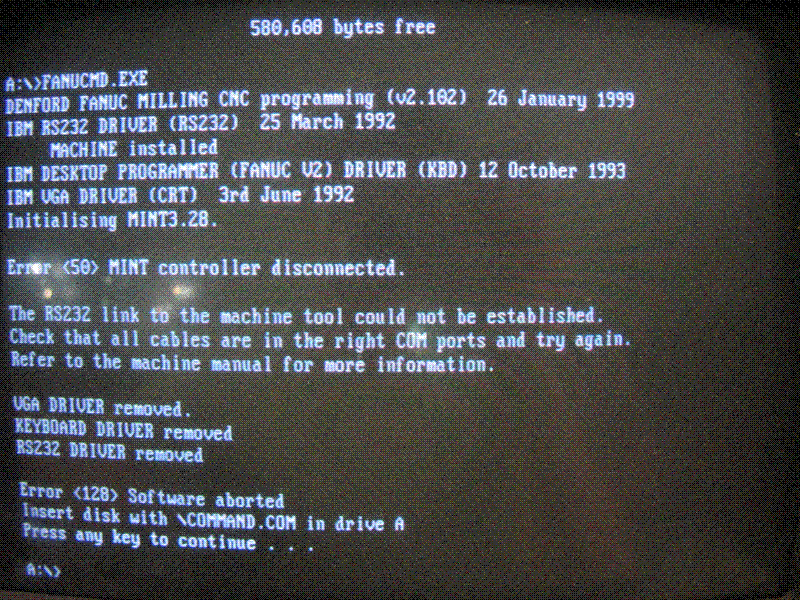

I have also tried "FanucMD.exe", & system said (Attachment: Print_Screen_02.gif"):
"Error <50> MINT controller disconnected"
"Error <128> Software aborted."

Question: Should I run "FLSTEP.exe" OR "FanucMD.exe"?
Question: I don't know how to continue installing the program for TU150E. Would you please kindly help? Is there any Menual for me?

[bradders]

USE FLSTEP.EXE
Drivers
https://website.denford.ltd.uk/support/9 ... s-software

Manual
viewtopic.php?t=1919&highlight=tu150e

Error 50 and 128
viewtopic.php?t=1840&highlight=error+128

[Mr Magoo]

I think the software is asking for the drivers disk becuase it can't find the GO file (FLSTEP.GO). If the GO file is missing it assumes the software is a new install and will copy the necessary files from the drivers disk then build the go file based on questions prompted to the user (which serial port etc)

Get the correct GO and OPT files for this machine serial number and it "Should Just Work "

[bradders]

"SHOULD JUST WORK"


FLSTEP.OPT File
{--------CIM Settings------------
EXTCOMM_ENABLE 1
EXTCOMM_ROUTE 1
EXTCOMM_SDEVICE COM1
EXTCOMM_BAUD 4800
EXTCOMM_PARITY 0
EXTCOMM_DATABITS 8
EXTCOMM_STOPBITS 1
EXTCOMM_LF 1
EXTCOMM_ES 1
EXTCOMM_EE 2
REMOTECHUCK 1
autoerror 0
dragmarking 0
displaysize 3 {PRODUCT OPTIONS FILE AS OF 18/09/96
narrowsimbox 0 {FOR MIRAC
utils_menu_1 Dos Access
utils_go_1 dos
utils_menu_2 Turning Designer
utils_go_2 ldesign
mirac_sdevice machine
showtool 0
{--------FEEDS & SCALING--------
SLAVE_ACCEL 120
rem mint_mfact 200
HIGHFEED 3000
HIGHFEEDZ 3000
{--------SPINDLE----------------
slave_spindlelag 35
safespindle 150
slave_encoder 2000
slave_spindlef 0.85
slave_thread 1
highspindle 5000
{--------TOOLPOST---------------
SLAVE_ATC 2
MAXTOOL 8
{---------X-AXIS-----------------
MACHINEEXTENTX 140
MOVERANGEX 94
CHUCKCENTREX 50
CHUCKX 80
JAWSX 10
BILLETX 30
{---------Z-AXIS-----------------
MACHINEEXTENTZ 229
MOVERANGEZ 199
CHUCKZ 20
JAWSZ 10
BILLETZ 50
{--------MISCELLANEOUS FUNCS-----
datumorder 0
inspect 1
nopots 0
noair 0
slave_pchuck 1
footswitch 2
lubesense 1
slave_io 1

FLSTEP.GO File
IBM.RS2 2
$3F8 4 COM1
$3E8 5 MACHINE
DENFORD1.KBD 1
18.2 $2F8 3
VGA.CRT 0
Flstep.APP
