I am working with a Denford 2600 PRO and I was looking for some advice on what to do to achieve the best results.
I am trying to cut a 3D model out of some Hardwood (oak). I have attached the stl files of the model for reference. I am just wondering if there is anything in particular I should do to achieve the best result, such as certain spindle speeds and feed rates or an appropriate type of router bit to complete the job.
Any help and advice which you can offer would be very much appreciated.
Which plans and tools should I use ?
Moderators: Martin, Steve, Mr Magoo
- Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Which plans and tools should I use ?
A customer has written in:
- Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Which plans and tools should I use ?
There are plenty of choices to make for this type of model and a lot is down to experimentation and what tools you have available.
As your models are quite big (400mm x 600mm), I'd first of all use the custom boundary in order to machine a small area to see what kind of finish is left.
I'd start with something along the lines of this:

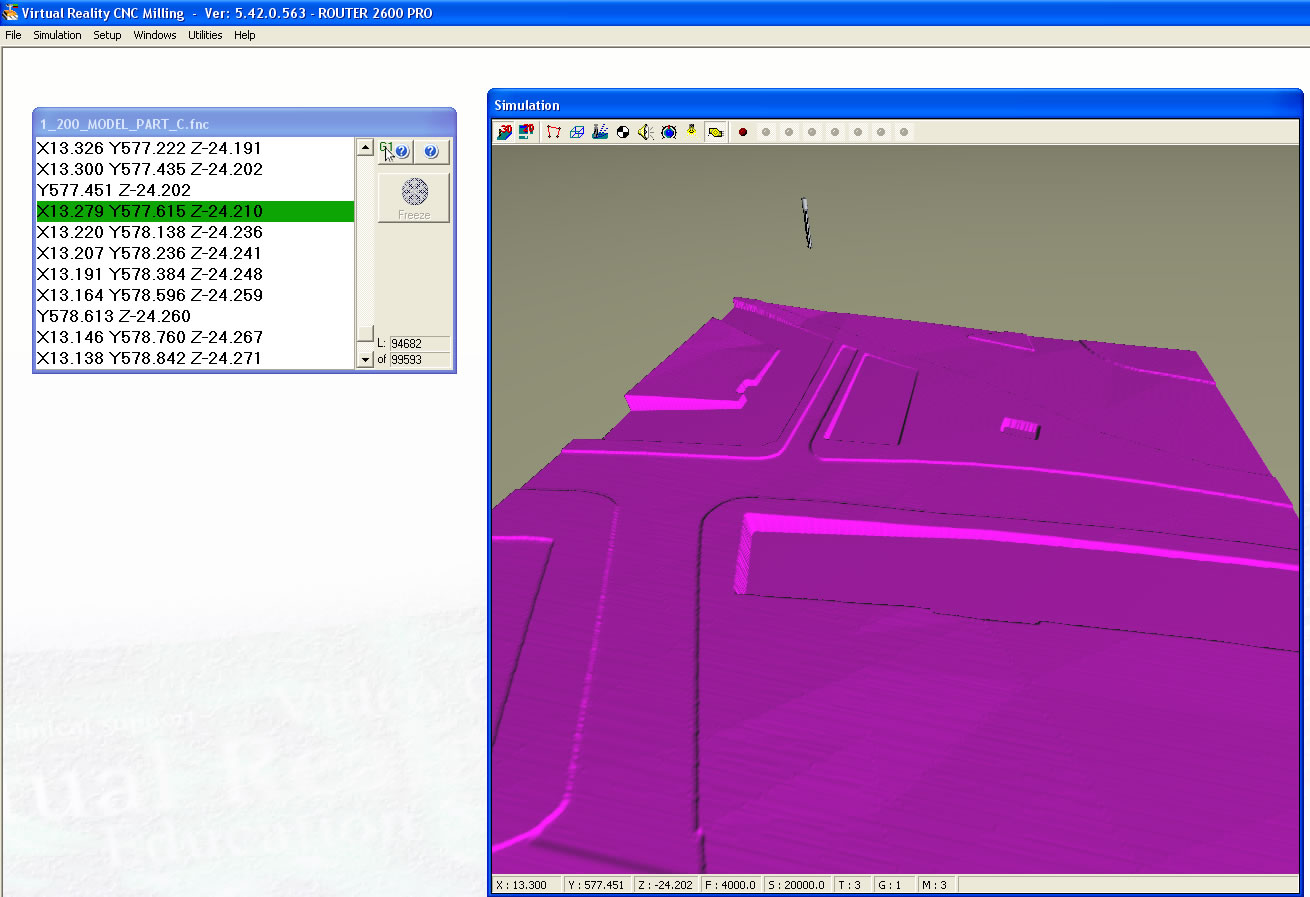

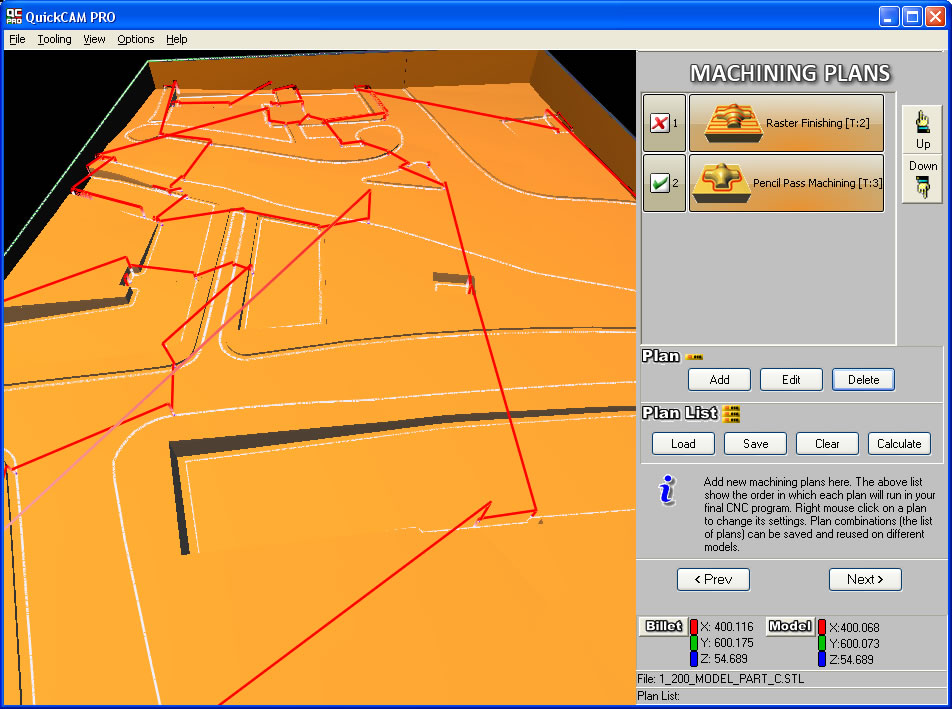

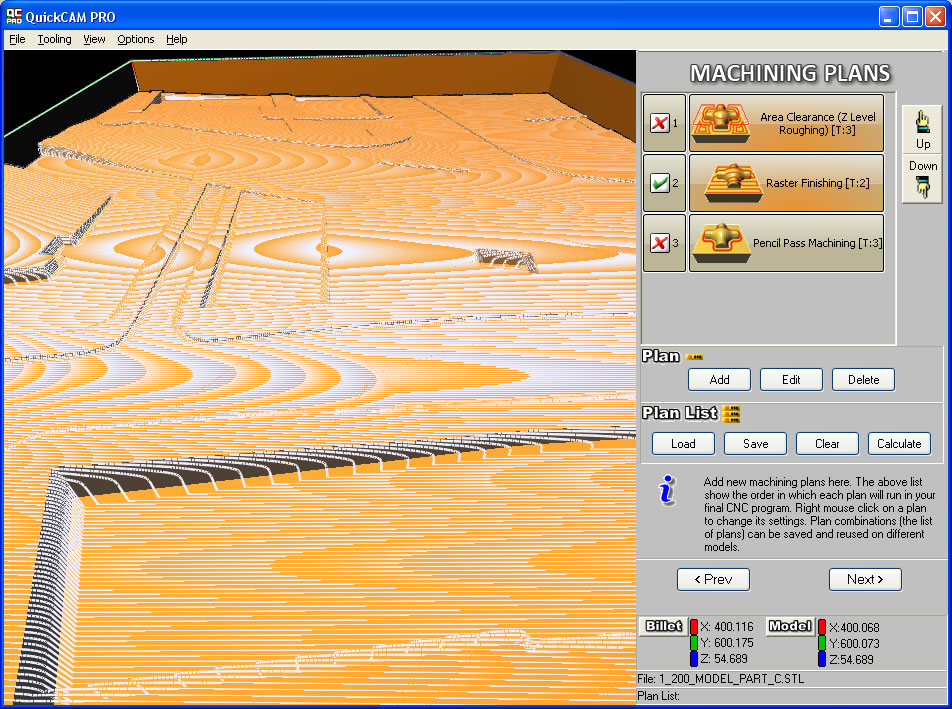

1. Area clearance with a large slot(flat) drill 2. Raster finishing with a ball nose (small enough to fit into the smallest feature) 3. Pencil pass machining with a slot drill to remove the radius'd corners left by the ball nose. Because the model is large, then both the Quickcam and VRMilling 5 simulations will struggle to show it in fine detail, but as I said, start with a custom boundary and see what the results are like. See here for more information on the custom boundary:
viewtopic.php?f=6&t=2388&p=10399
As your models are quite big (400mm x 600mm), I'd first of all use the custom boundary in order to machine a small area to see what kind of finish is left.
I'd start with something along the lines of this:
1. Area clearance with a large slot(flat) drill 2. Raster finishing with a ball nose (small enough to fit into the smallest feature) 3. Pencil pass machining with a slot drill to remove the radius'd corners left by the ball nose. Because the model is large, then both the Quickcam and VRMilling 5 simulations will struggle to show it in fine detail, but as I said, start with a custom boundary and see what the results are like. See here for more information on the custom boundary:
viewtopic.php?f=6&t=2388&p=10399
