we are making F1 cars from d type blanks. When drawing them in Pro/desktop and exporting as stl and putting them through quickcam 4d we are getting cutting plans that are different from the model..... see drawings
a problem trying to attach the files..it wont let me send prodesktop .des files or .stl for quickcam 4d
error The extension is not allowed.
F1 D type
Moderators: Martin, Steve, Mr Magoo
-
jwepjb
- Posts: 15
- Joined: Mon 28 May , 2012 15:19 pm
- Hardware/Software: microrouter pro
quickcam pro
quickcam4d
Re: F1 D type
take a look at screen shots and hopefully see the problem
The extension docx is not allowed.
so cannot send a screen shot either
The extension docx is not allowed.
so cannot send a screen shot either
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: F1 D type
I've just enabled that now.The extension docx is not allowed.
If you take a screenshot by pressing PrintScreen (hold down ALT to only take a snapshot of the current window)
Then run MSPaint, paste the image and save as a .jpg file
-
jwepjb
- Posts: 15
- Joined: Mon 28 May , 2012 15:19 pm
- Hardware/Software: microrouter pro
quickcam pro
quickcam4d
Re: F1 D type

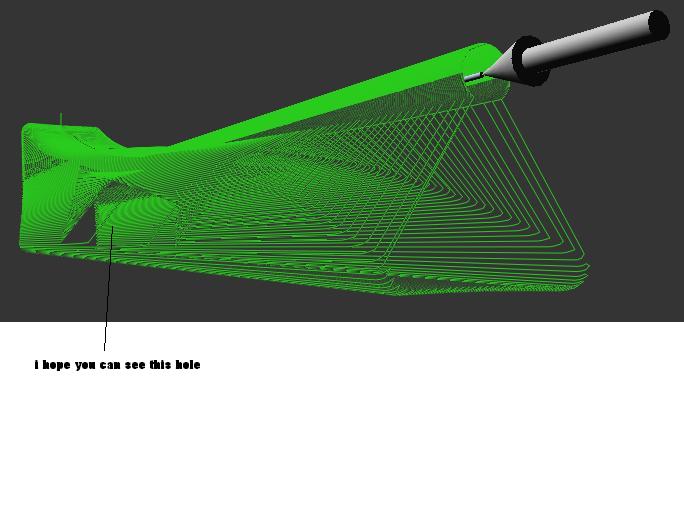

i hope you'll be able to see our problem from these
- Attachments
-

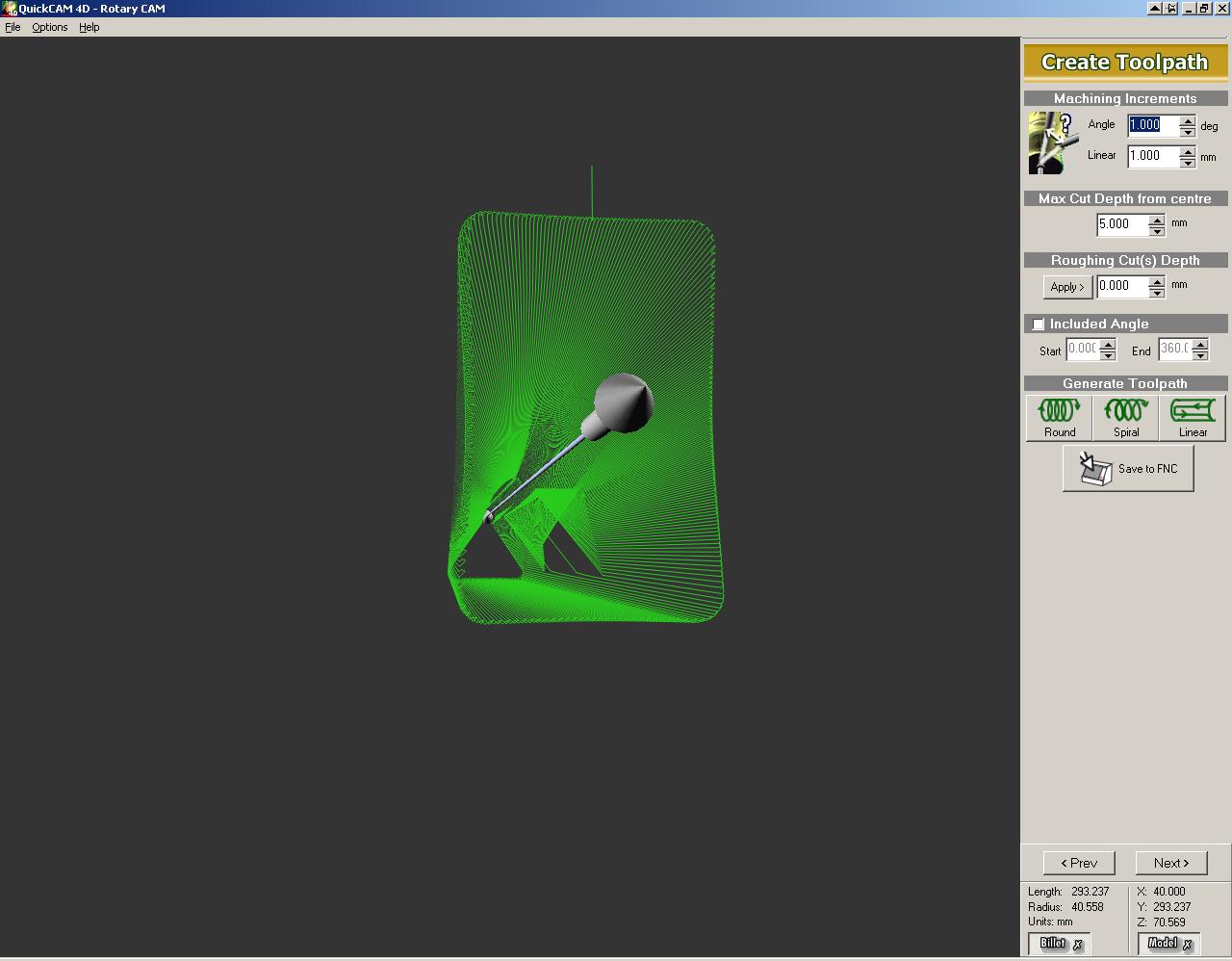

- stl.JPG (36.14 KiB) Viewed 22461 times
-
- stl2.JPG (93.42 KiB) Viewed 22461 times
-

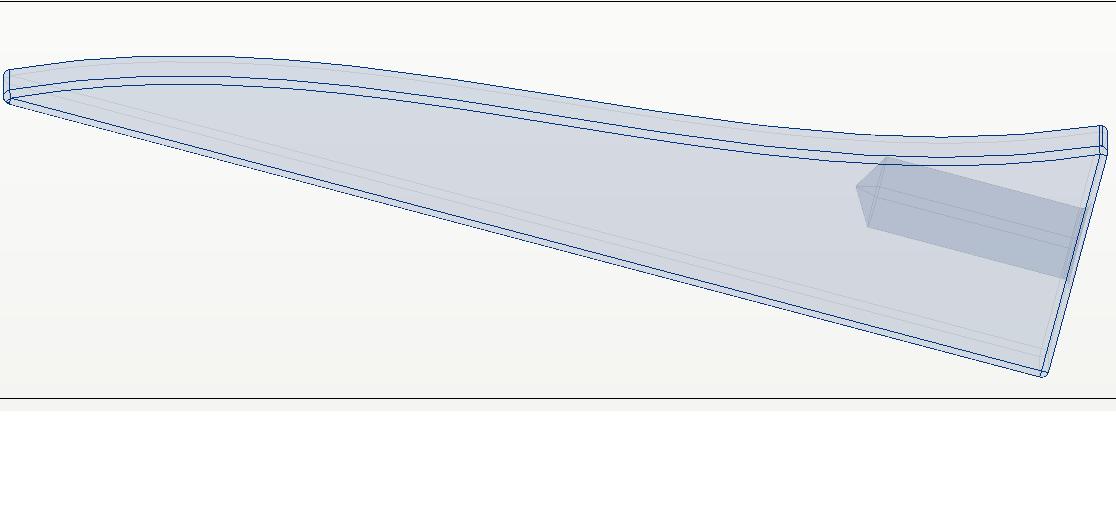

- prodesktop.JPG (38.17 KiB) Viewed 22461 times
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: F1 D type
QuickCAM4D will not allow the cutter to go past the centre line of rotation.
I think thats causing you trouble. The centreline in QuickCAM must pass through solid.
For that type of D-type design I'd be tempted to use QuickCAM Pro to machine one side, then edit the program to rotate the car, mirror and do the other side.
There is a tutorial on the QuickCAM 4D CD called "F1 4th Axis D Type Manufacturing guide.pdf"
(it sholud also be located here: C:\Program Files\Denford\QuickCAM4D\Tutorials)
I think thats causing you trouble. The centreline in QuickCAM must pass through solid.
For that type of D-type design I'd be tempted to use QuickCAM Pro to machine one side, then edit the program to rotate the car, mirror and do the other side.
There is a tutorial on the QuickCAM 4D CD called "F1 4th Axis D Type Manufacturing guide.pdf"
(it sholud also be located here: C:\Program Files\Denford\QuickCAM4D\Tutorials)
-
jwepjb
- Posts: 15
- Joined: Mon 28 May , 2012 15:19 pm
- Hardware/Software: microrouter pro
quickcam pro
quickcam4d
Re: F1 D type
we do know that cutter will not cut below the cntr line
the problem is the 'hole' on the side of the car in the stl file.
so when the rotation reaches that plane it cuts below the drawing line.
we have run several designs and it is not on all drawings or at the same point in the design
sometimes it mirrors on both sides and sometimes it puts a 'hole' in the under side or the car
we will look at the resolution you have proposed, and thanks for your help
the problem is the 'hole' on the side of the car in the stl file.
so when the rotation reaches that plane it cuts below the drawing line.
we have run several designs and it is not on all drawings or at the same point in the design
sometimes it mirrors on both sides and sometimes it puts a 'hole' in the under side or the car
we will look at the resolution you have proposed, and thanks for your help
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: F1 D type
I've enabled .stl files now, so attach the design and we'll take a look at it.
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: F1 D type
Thanks,
I can see the problem...we will look into it.
I can see the problem...we will look into it.
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: F1 D type
Hi,
There is something strange going on with the .stl:

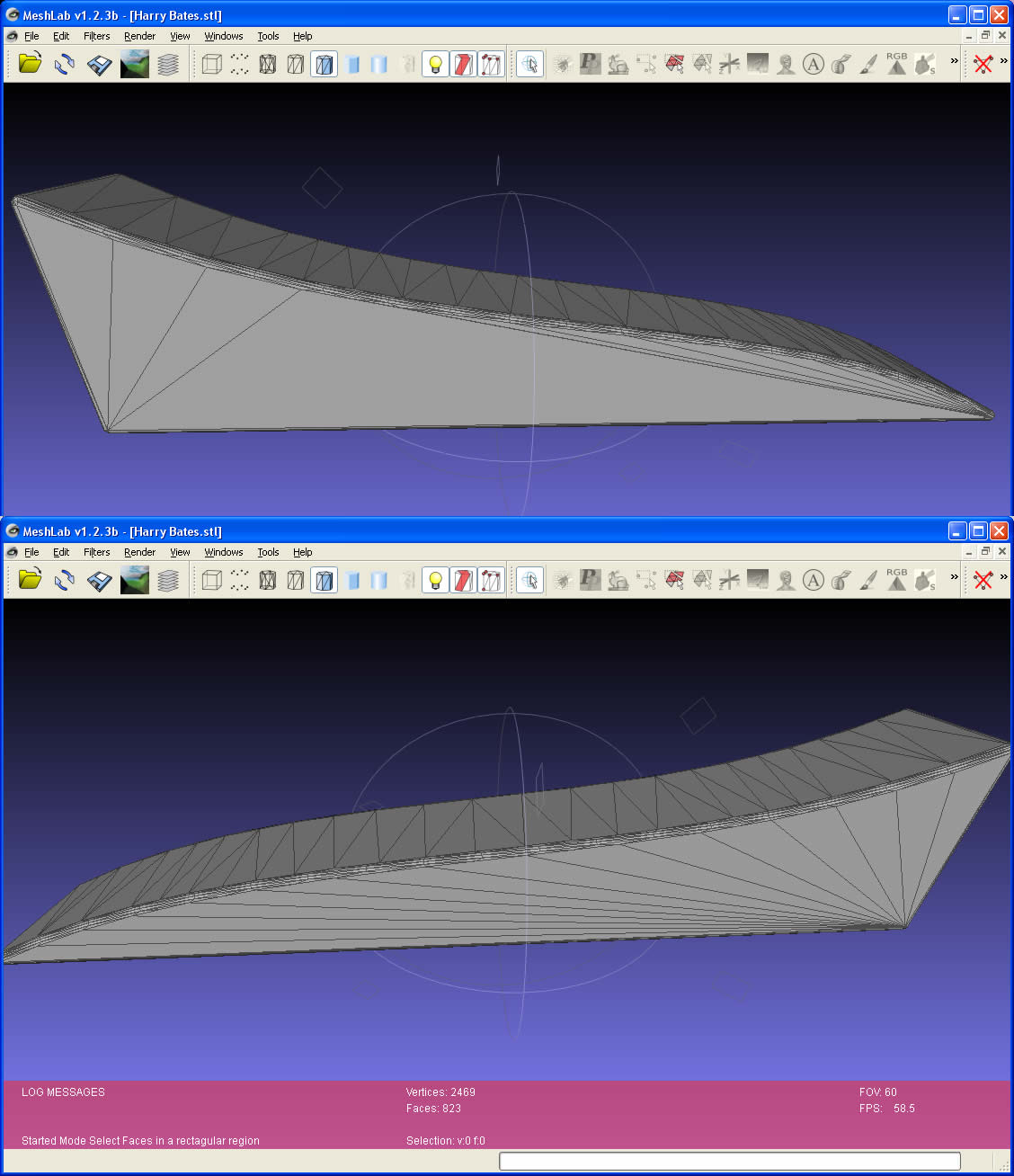

If you look (see attached screenshot) at the actual triangles on the side that gets the hole, it is very different to the other side. I can only imagine that's why QuickCAM4D is dropping through on that side...
Have you any options when exporting from proD you can experiment with ?
Maybe there is an update to proD which fixes .stl export problems...
There is something strange going on with the .stl:
If you look (see attached screenshot) at the actual triangles on the side that gets the hole, it is very different to the other side. I can only imagine that's why QuickCAM4D is dropping through on that side...
Have you any options when exporting from proD you can experiment with ?
Maybe there is an update to proD which fixes .stl export problems...
- Attachments
-
- HarryBatesProblem.jpg (130.25 KiB) Viewed 22451 times
