Denstep 7 Segment LED status and fault display

Information and questions about Denford CNC Control electronics, general electrical issues, cables, diagrams, stepper motors, drives etc...

Moderators: Martin, Steve, Mr Magoo

Post Reply
User avatar
bradders
CNC Guru
CNC Guru
Posts: 1251
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:
Contact bradders

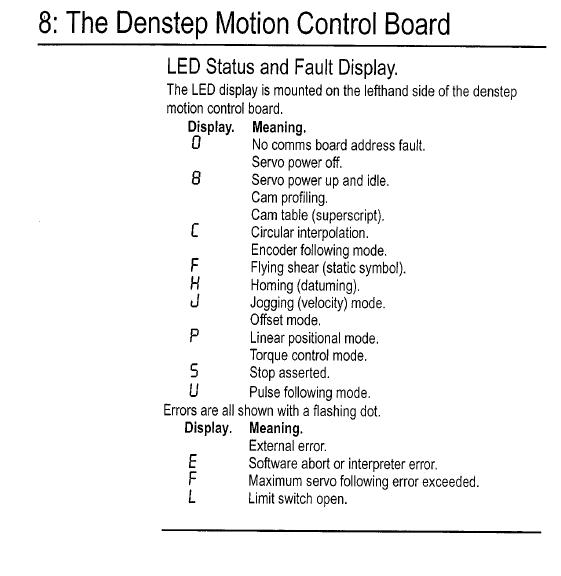

Denstep 7 Segment LED status and fault display

Post by bradders » Mon 24 Jan , 2011 9:32 am

Denstep 7 Segment LED status and fault display
Attachments
Denstep 7 Segment LED status and fault display.JPG
Denstep 7 Segment LED status and fault display.JPG (43.75 KiB) Viewed 7139 times
Top
User avatar
bradders
CNC Guru
CNC Guru
Posts: 1251
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:
Contact bradders

Re: Denstep 7 Segment LED status and fault display

Post by bradders » Mon 24 Jan , 2011 9:48 am

Denstep 7 Segment LED status and fault display in PDF format
Attachments
Denstep 7 Segment LED status and fault display.pdf
(55.66 KiB) Downloaded 1241 times
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Re: Denstep 7 Segment LED status and fault display

Post by Denford Admin » Mon 13 May , 2013 9:05 am

Nb, an L on the display also means that the Mint file needs 'L'oading
Our machines would not normally show L for limit switch open because we've never used that feature.
