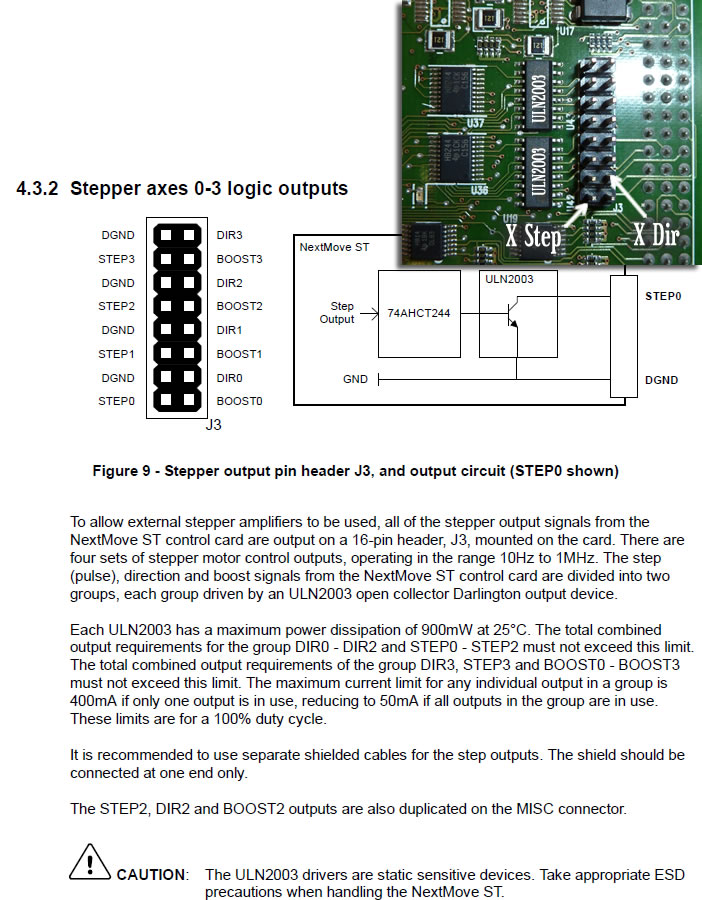

Baldor top cards with the green or orange 7 segment LED have a 16 way IDC header which 'taps' into the step and direction signals for axis 0,1,2 and 3
This means that any, or all of the axes can drive external stepper drives rather than the 3 fitted to the base board.
NB, Some earlier RS232 only nextmove ST boards didn't have the connector fitted, just soldered holes.
Nextmove ST Step and Direction Header
Moderators: Martin, Steve, Mr Magoo
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Nextmove ST Step and Direction Header
- Attachments
-
- StepAndDirectionOutputHeaderConnector.jpg (190.73 KiB) Viewed 19558 times
