Hi
I have just acquired a Viceroy lathe model TDS R.C.S The motor will not run as the wire from the door switch has been cut and I can't see where the wire runs to from the switch. The wire comes from a Brook Motors on/off switch but I cannot see where the wires terminates from the switch. I do not know the age of the lathe but it also has a forward and reverse switch. Your help in resolving my problem will be most appreciated. I need to add that its a 240v machine
Regards
Joe
Viceroy wiring
Moderators: Martin, Steve, Mr Magoo
Re: Viceroy wiring
Hi Andy
I have checked every page but there is no wiring diagram. I need a wiring diagram or a termination point
for the wire from the door switch but I can't find one anywhere. I am struggling to find where to go next.
regards
Joe
I have checked every page but there is no wiring diagram. I need a wiring diagram or a termination point
for the wire from the door switch but I can't find one anywhere. I am struggling to find where to go next.
regards
Joe
- Attachments
-

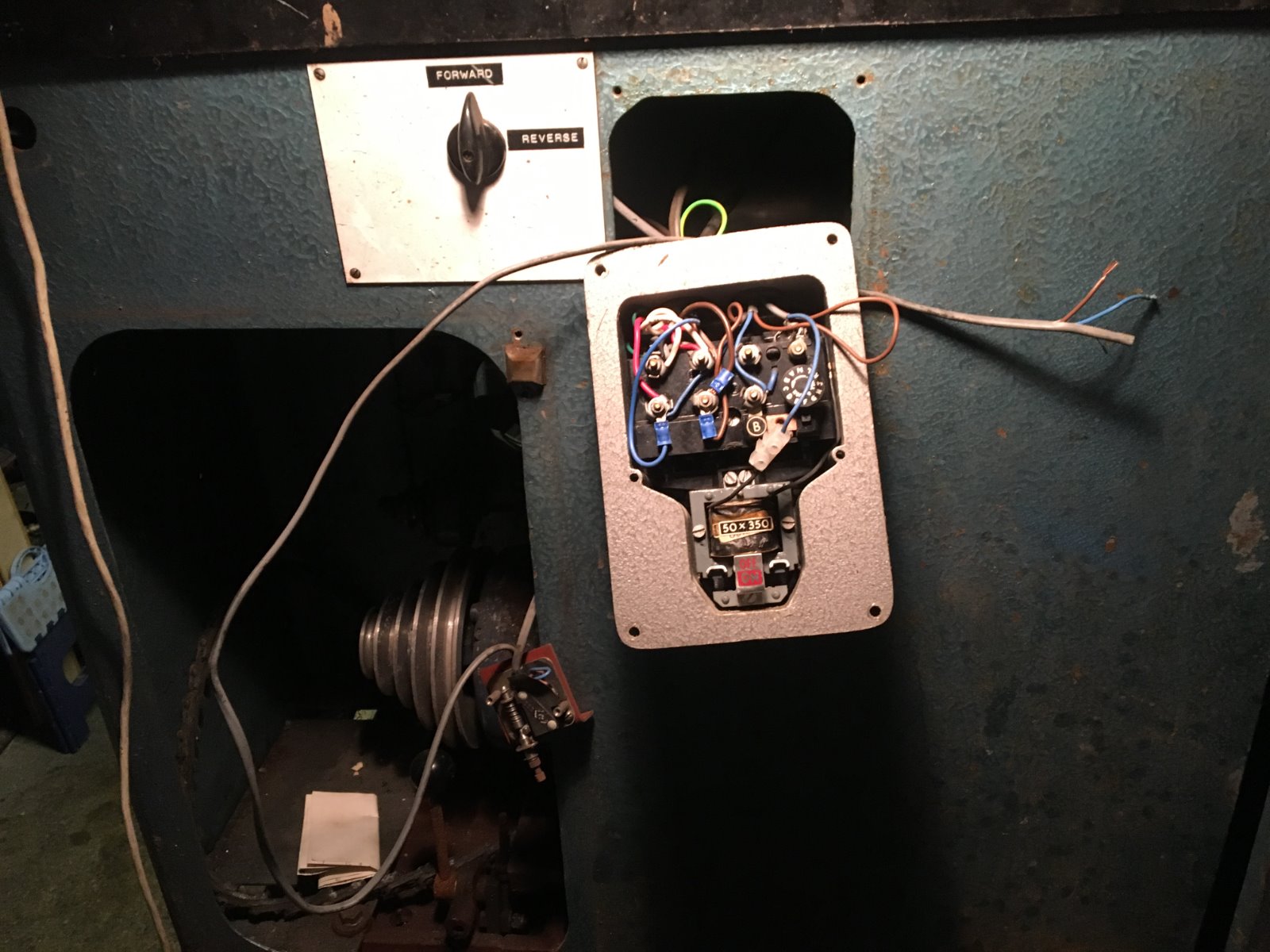

- IMG_1142[1].JPG (247.36 KiB) Viewed 6325 times
Re: Viceroy wiring
Hi Andy
Thanks for the wiring diagram the motor now runs I just have to put the machine together to do some machining
thanks again.
Regards
Joe
Thanks for the wiring diagram the motor now runs I just have to put the machine together to do some machining
thanks again.
Regards
Joe
