Hi. Has anyone got the connection details for the above board that fits into the control box for a Viceroy VS280 lathe, its the speed indicator display board?
I would like to know which is the power and the sensor connections if possible.
Wanted wiring diagram for GSM PC 1001/F speed board
Moderators: Martin, Steve, Mr Magoo
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Wanted wiring diagram for GSM PC 1001/F speed board
Is it like this ?
viewtopic.php?f=50&t=1932
It looks like andyb might have the dwg SK601 - I can't find it here sorry.
viewtopic.php?f=50&t=1932
It looks like andyb might have the dwg SK601 - I can't find it here sorry.
-
Andy B
- CNC Guru
- Posts: 396
- Joined: Mon 20 Nov , 2006 18:19 pm
- Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
- Location: East Midlands, UK
Re: Wanted wiring diagram for GSM PC 1001/F speed board
A photo of your board would be useful just to confirm its spec - in case it's another variant not seen before!
But on both boards shown in the thread that Admin suggested, the left-hand pair of connections (as viewed in the photos on the solder-side of the connector block) are for power. You should be able to trace the tracks to 4 diodes or a rectifier.
The next pair in are the sensor.
The last four are for the LED's - as can be seen by following the tracks through the voltage drop resistors.
Andy
But on both boards shown in the thread that Admin suggested, the left-hand pair of connections (as viewed in the photos on the solder-side of the connector block) are for power. You should be able to trace the tracks to 4 diodes or a rectifier.
The next pair in are the sensor.
The last four are for the LED's - as can be seen by following the tracks through the voltage drop resistors.
Andy
-
Andy B
- CNC Guru
- Posts: 396
- Joined: Mon 20 Nov , 2006 18:19 pm
- Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
- Location: East Midlands, UK
Re: Wanted wiring diagram for GSM PC 1001/F speed board
Admin - can this thread be moved to the Viceroy section?
Andy
Andy
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Wanted wiring diagram for GSM PC 1001/F speed board
Yes - I thought about moving, but wondered if the OP was offering to pay for an original wiring diagram (maybe to boost interest??)
Re: Wanted wiring diagram for GSM PC 1001/F speed board

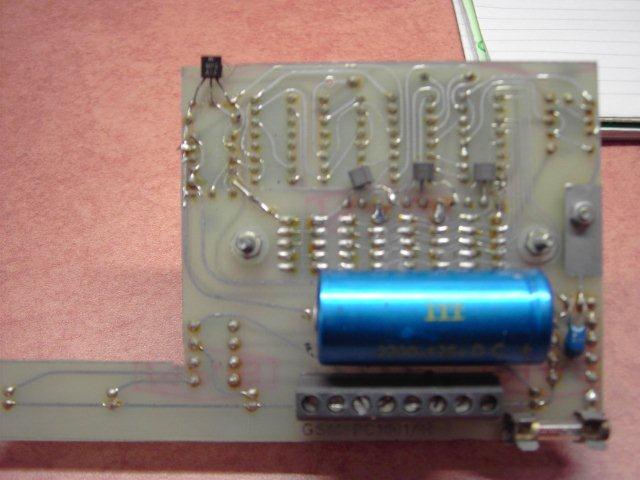

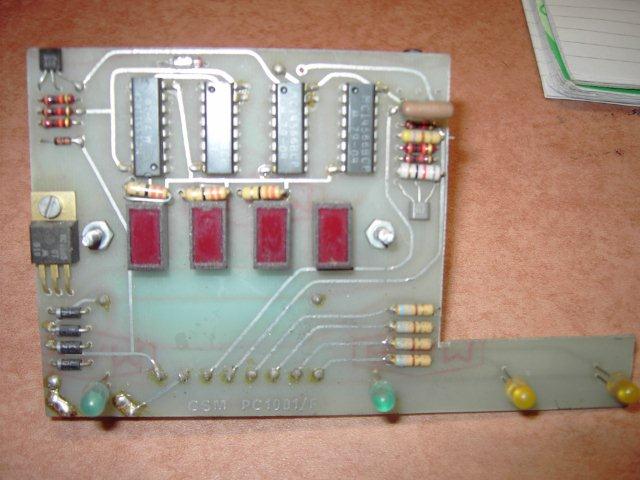

Hope these photos help
- Attachments
-
- PICT0415.jpg (41.69 KiB) Viewed 6384 times
-
- PICT0414.jpg (48.21 KiB) Viewed 6384 times
-
Andy B
- CNC Guru
- Posts: 396
- Joined: Mon 20 Nov , 2006 18:19 pm
- Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
- Location: East Midlands, UK
Re: Wanted wiring diagram for GSM PC 1001/F speed board
Thanks for the pix - looks identical to the 'type 1' photo in the other thread.
So connections are definitely as given above.
Andy
So connections are definitely as given above.
Andy
Re: Wanted wiring diagram for GSM PC 1001/F speed board
Many thanks Andy, I will try it out.
Thanks Ken
Thanks Ken
