Sharpedge TDS 12/16 & TDS 12/10 information

Post by **Denford Admin** » Tue 22 Mar , 2011 11:45 am

Hopefully all the Sharpedge info you'll ever need.
(with some TDS lathe info mixed in as well)

DavidB · Post by **DavidB** » Tue 22 Mar , 2011 12:09 pm

Would it be possible to add the attachment please. Hopefully the information will be off use in answering my query from yesterday.

Post by **Denford Admin** » Tue 22 Mar , 2011 12:11 pm

I'm doing it now but something is struggling to cope somewhere.

Post by **Denford Admin** » Tue 22 Mar , 2011 12:12 pm

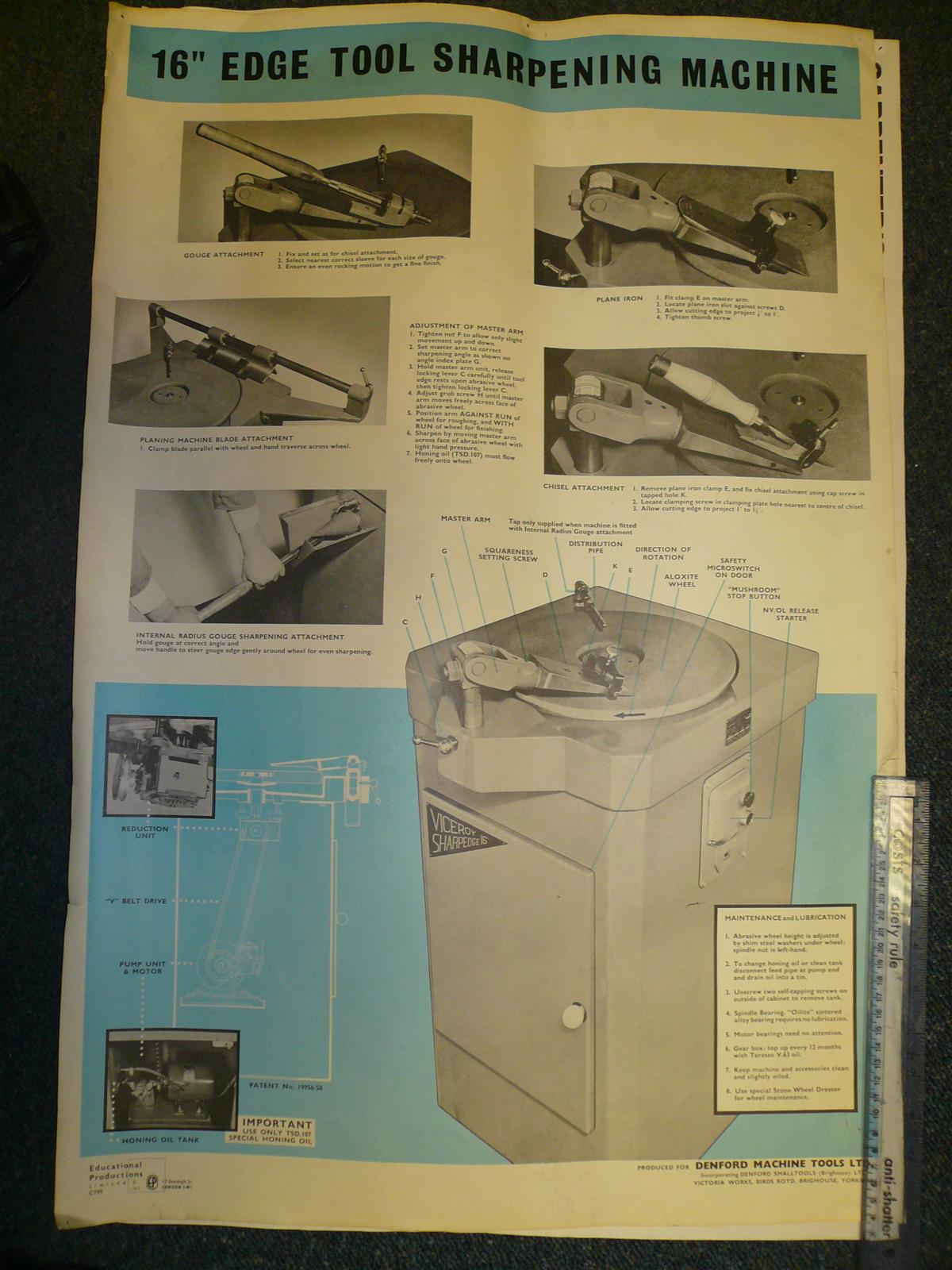

Drill Sander sharpedge brochures and parts lists

Post by **Denford Admin** » Tue 22 Mar , 2011 12:14 pm

Sharpedge Grinding Wheel Details
and
Sharpedge TDS 1216 General arrangement

Post by **Denford Admin** » Tue 22 Mar , 2011 12:15 pm

TDS 12 and 16 Sharpedge instruction manual
and
Viceroy TDS29 sharpedge Setting Instructions

Post by **Denford Admin** » Tue 22 Mar , 2011 12:18 pm

Viceroy TDS and sharpedge A3 arrangement drawings

Andy B · Post by **Andy B** » Wed 27 Aug , 2014 15:38 pm

Sharpedge gearboxes apparently changed several times over the years, and it looks as though the top Oilite bush also changed. These drawings will hopefully help to identify the variations.
The Oilite bushes appear to be standard sizes - such as can be found by this supplier (Usual disclaimer applies)

Edited to replace (hard to read) drawings with Black & White versions
