Has anyone ever dismantled the apron of a Viceroy TDS 1/2 PCS lathe?
If so I would appreciate some input.
Frank D
Repairs to Viceroy TDS 1/2 PCS lathe
Moderators: Martin, Steve, Mr Magoo
-
franjan5332
- Posts: 5
- Joined: Wed 26 Jan , 2011 17:18 pm
- Hardware/Software: Viceroy TDS 1/2 PCS
- Location: Havant, Hants
- Contact:
-
LesT
- CNC Expert
- Posts: 119
- Joined: Wed 11 Aug , 2010 14:17 pm
- Hardware/Software: An old Viceroy with a half installed invertor drive,(when I can decide where to put the control pushbuttons I will wire it up properly)
A WMD25V mini mill.
Tractor, Bobcat 320, and Dumper truck.
7 sheds, about 5 (?) mowers. etc, etc. - Location: Scotland !
Re: Repairs to Viceroy TDS 1/2 PCS lathe
Hi,

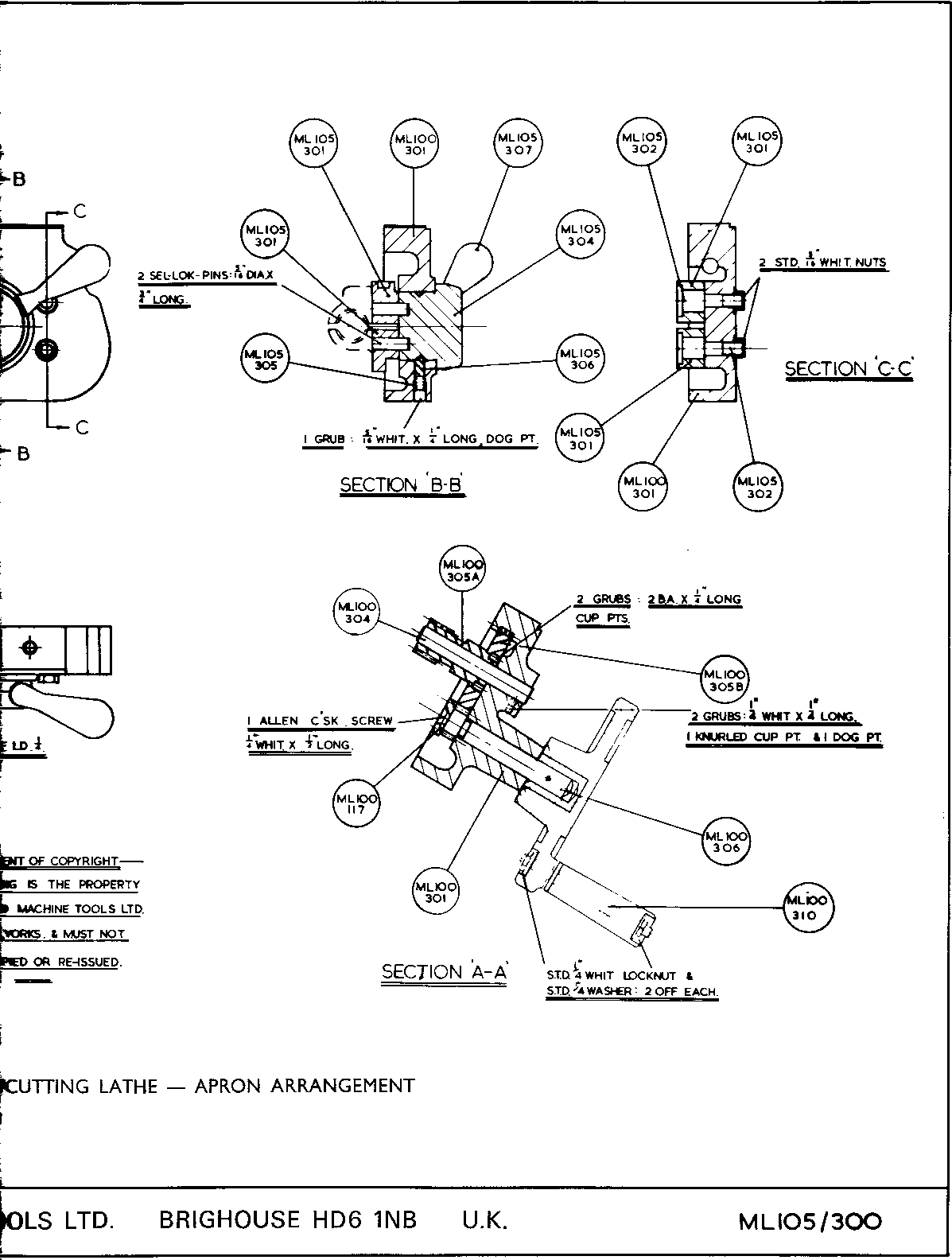

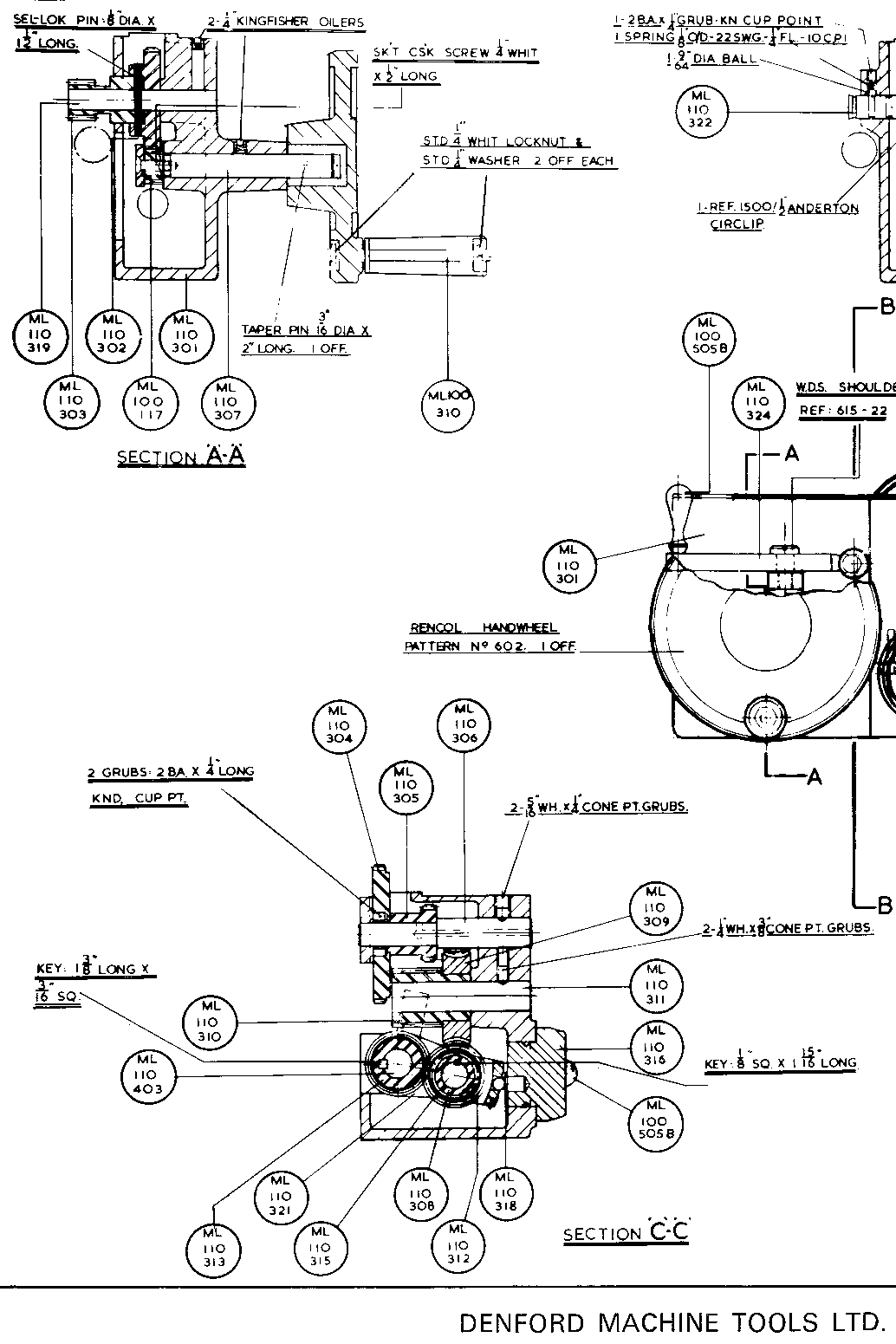

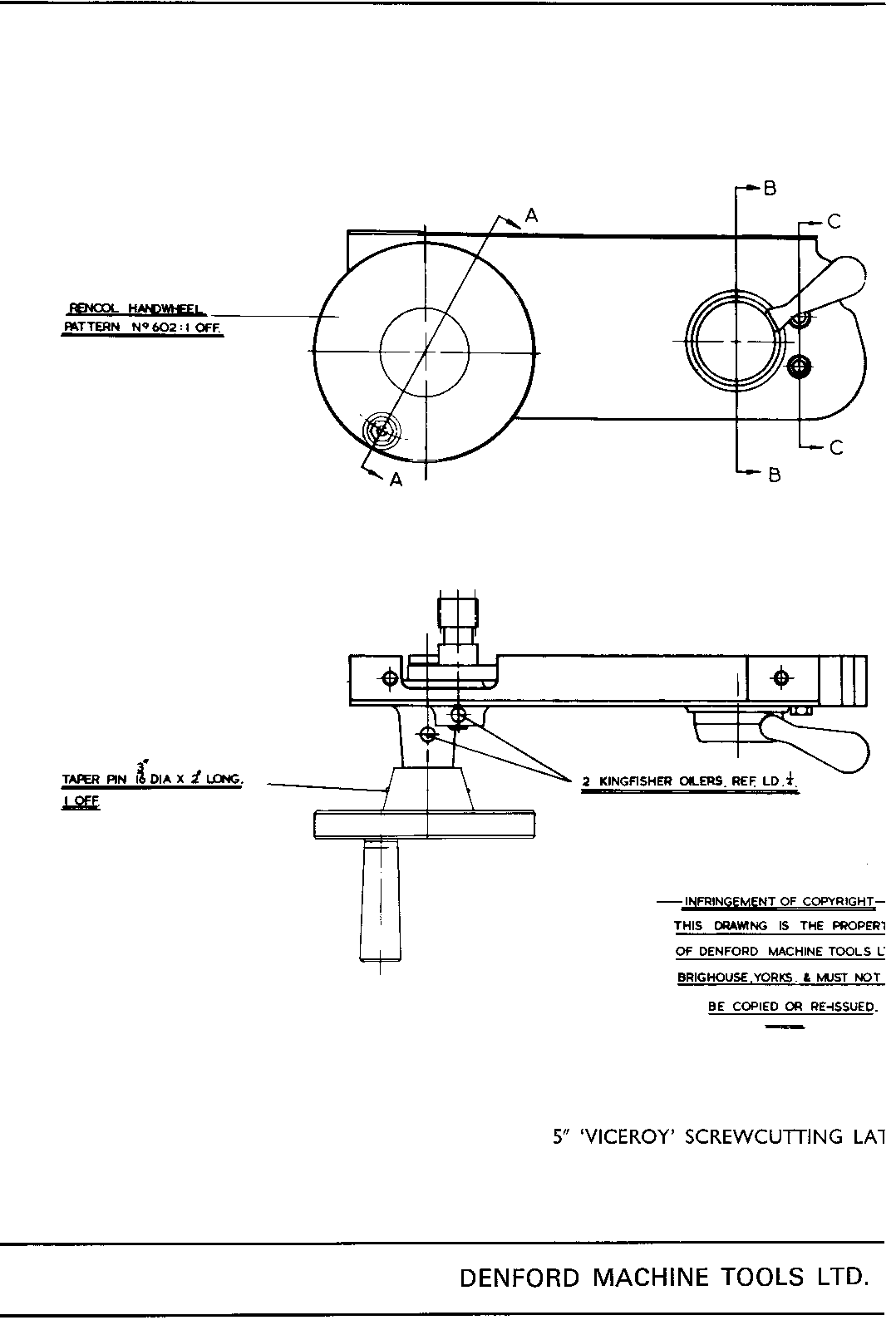

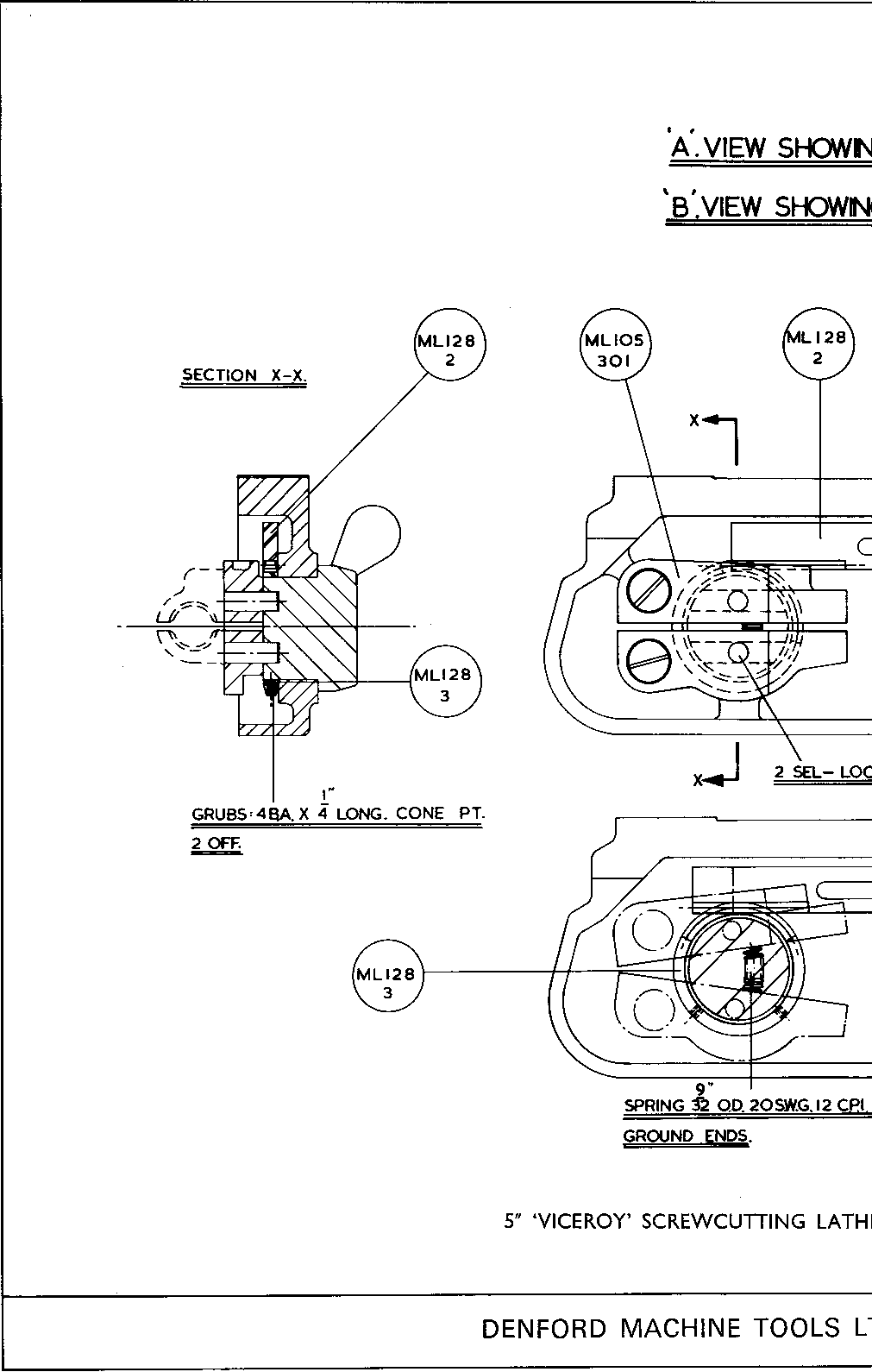

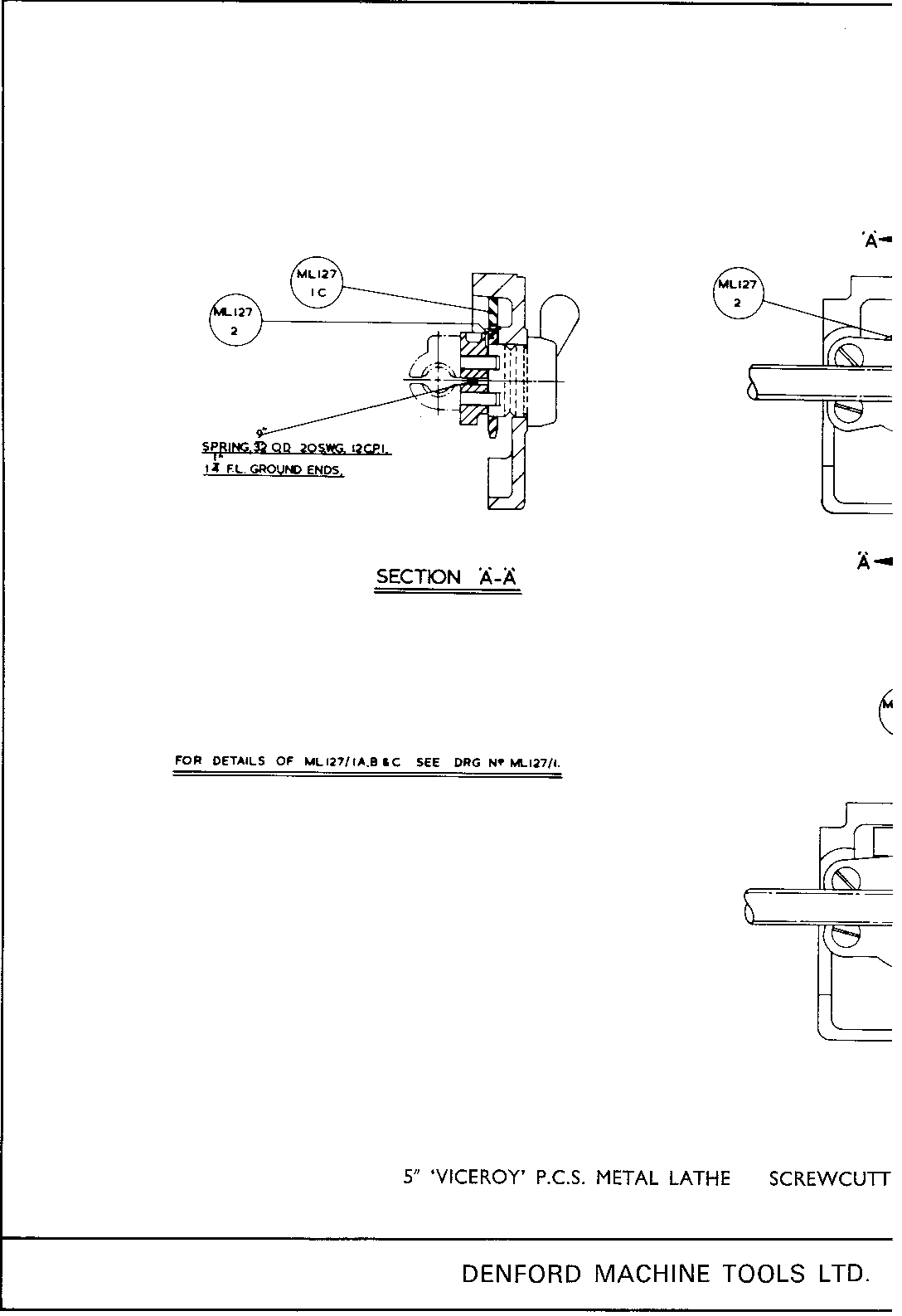

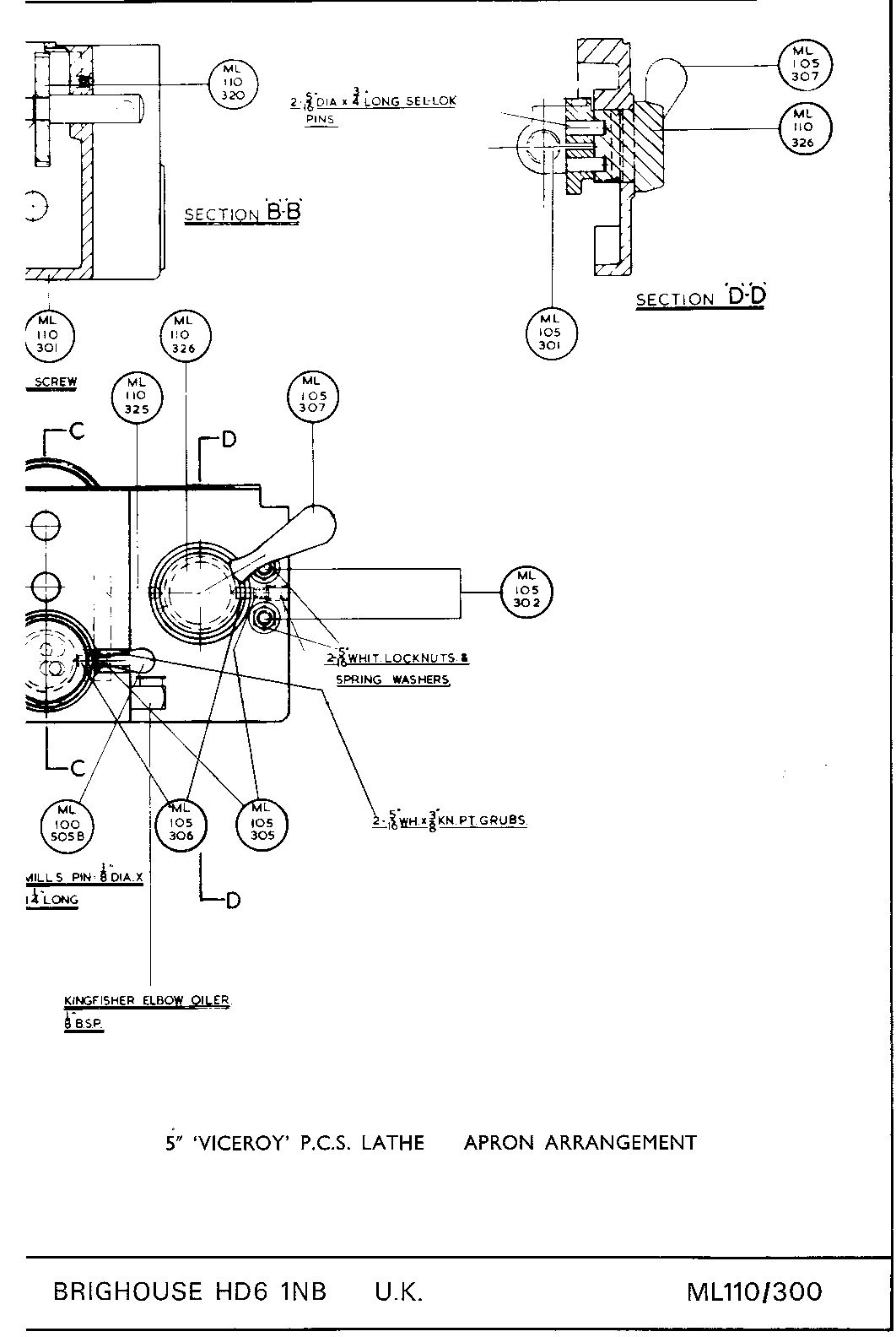

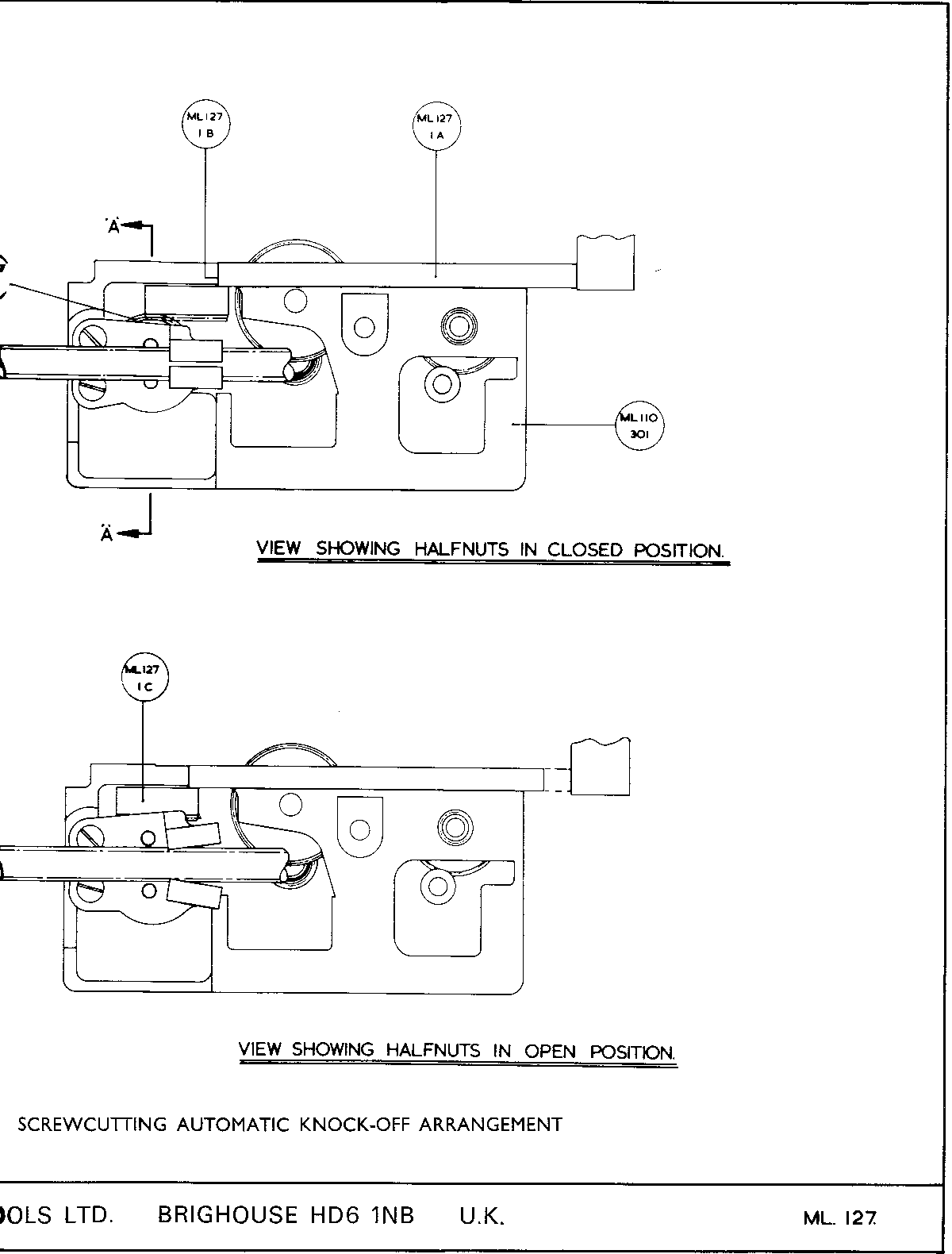

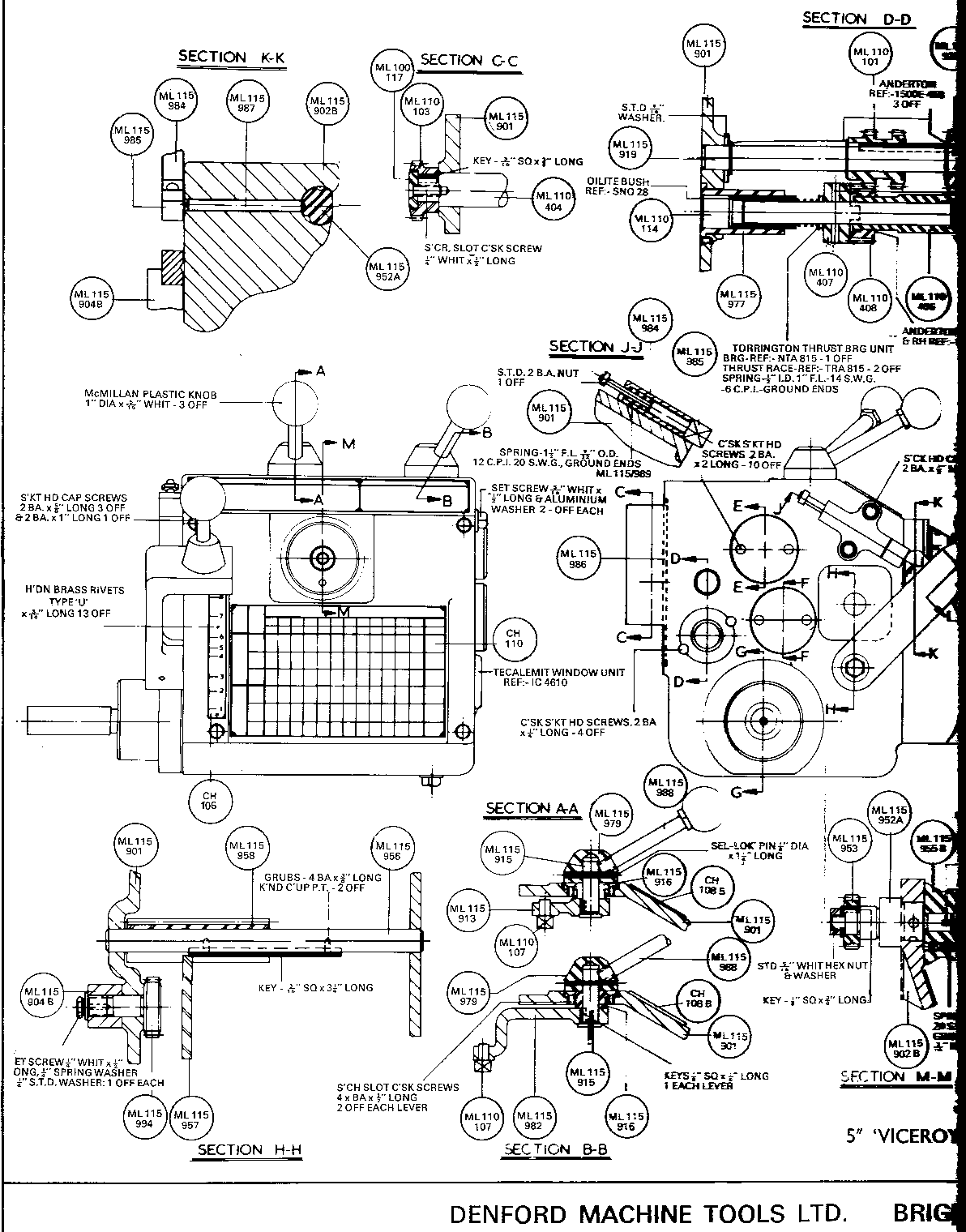

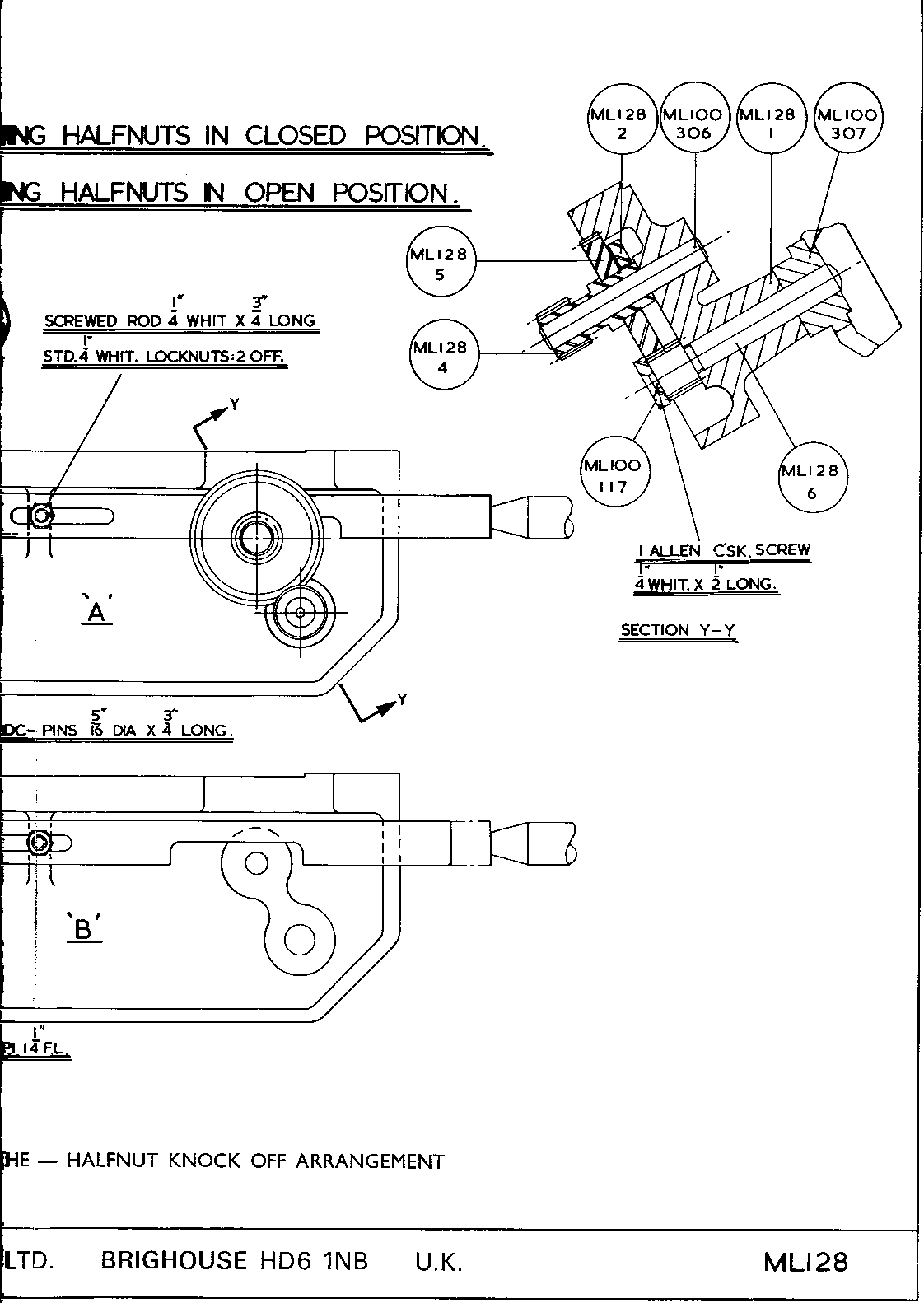

I have scanned some drawings which might help you a bit.
Cheers,
Les.T.
PS as before they are A4 scans so if a helpful person could join them that would be appreciated.
I have scanned some drawings which might help you a bit.
Cheers,
Les.T.
PS as before they are A4 scans so if a helpful person could join them that would be appreciated.
- Attachments
-
- scan0010.png (19.11 KiB) Viewed 4832 times
-
- scan0009.png (25.96 KiB) Viewed 4832 times
-
- scan0008.png (10.94 KiB) Viewed 4832 times
-
- scan0007.png (16.31 KiB) Viewed 4832 times
-
- scan0006.png (13.72 KiB) Viewed 4832 times
-
- scan0005.png (29.45 KiB) Viewed 4832 times
-
- scan0004.png (20.81 KiB) Viewed 4832 times
-
- scan0003.png (33.19 KiB) Viewed 4832 times
-
- scan0002.png (42.23 KiB) Viewed 4832 times
-
- scan0001.png (50.94 KiB) Viewed 4832 times
-
LesT
- CNC Expert
- Posts: 119
- Joined: Wed 11 Aug , 2010 14:17 pm
- Hardware/Software: An old Viceroy with a half installed invertor drive,(when I can decide where to put the control pushbuttons I will wire it up properly)
A WMD25V mini mill.
Tractor, Bobcat 320, and Dumper truck.
7 sheds, about 5 (?) mowers. etc, etc. - Location: Scotland !
Re: Repairs to Viceroy TDS 1/2 PCS lathe
oops !
Got a bit carried away there !.
Scans 1 and 2 are reposts.
Not to worry !.
Cheers,
Les.T.
Got a bit carried away there !.
Scans 1 and 2 are reposts.
Not to worry !.
Cheers,
Les.T.
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Repairs to Viceroy TDS 1/2 PCS lathe
I've put them all in here:
viewtopic.php?f=50&t=3209&p=11546

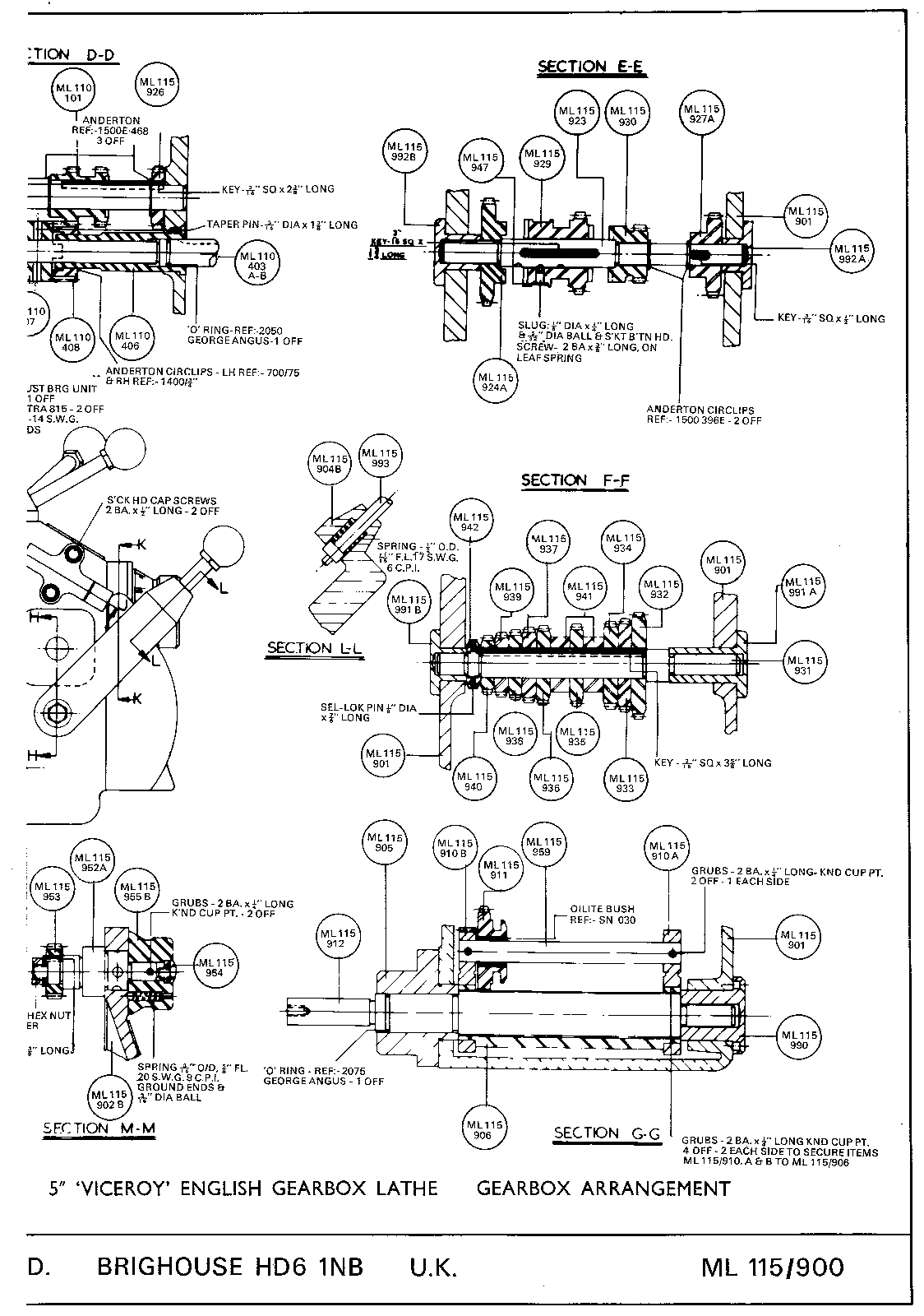

Apart from the gearbox drawings which I'm sure are somewhere else on the forum
viewtopic.php?f=50&t=3209&p=11546
Apart from the gearbox drawings which I'm sure are somewhere else on the forum
