Viceroy Drawings scans ML100/xxx

Post by LesT » Mon 23 Aug , 2010 20:30 pm

Hi,

Here are a selection of drawings,
I hope they prove useful.

Regards,

Les.T

ML 100/500

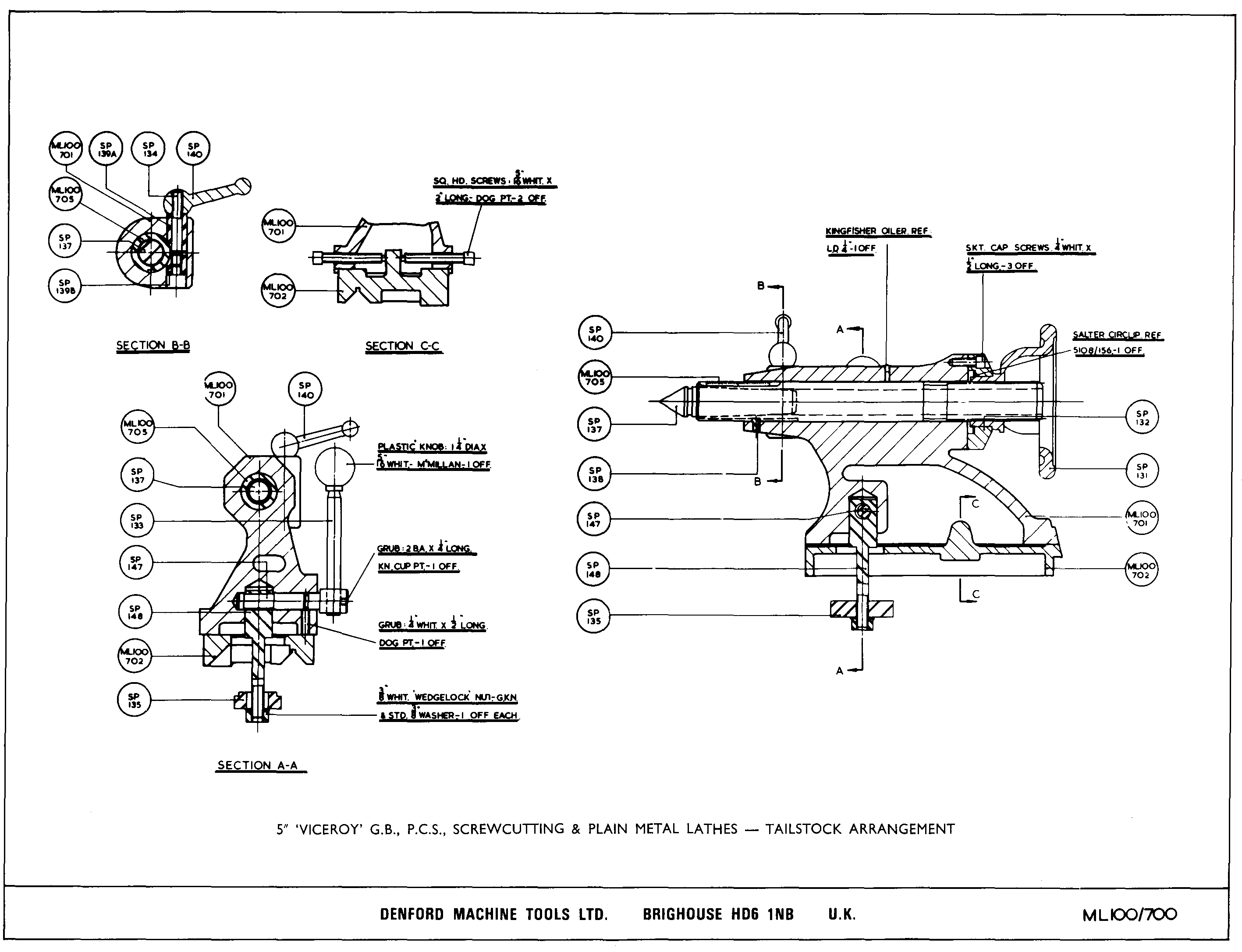

ML 100/700

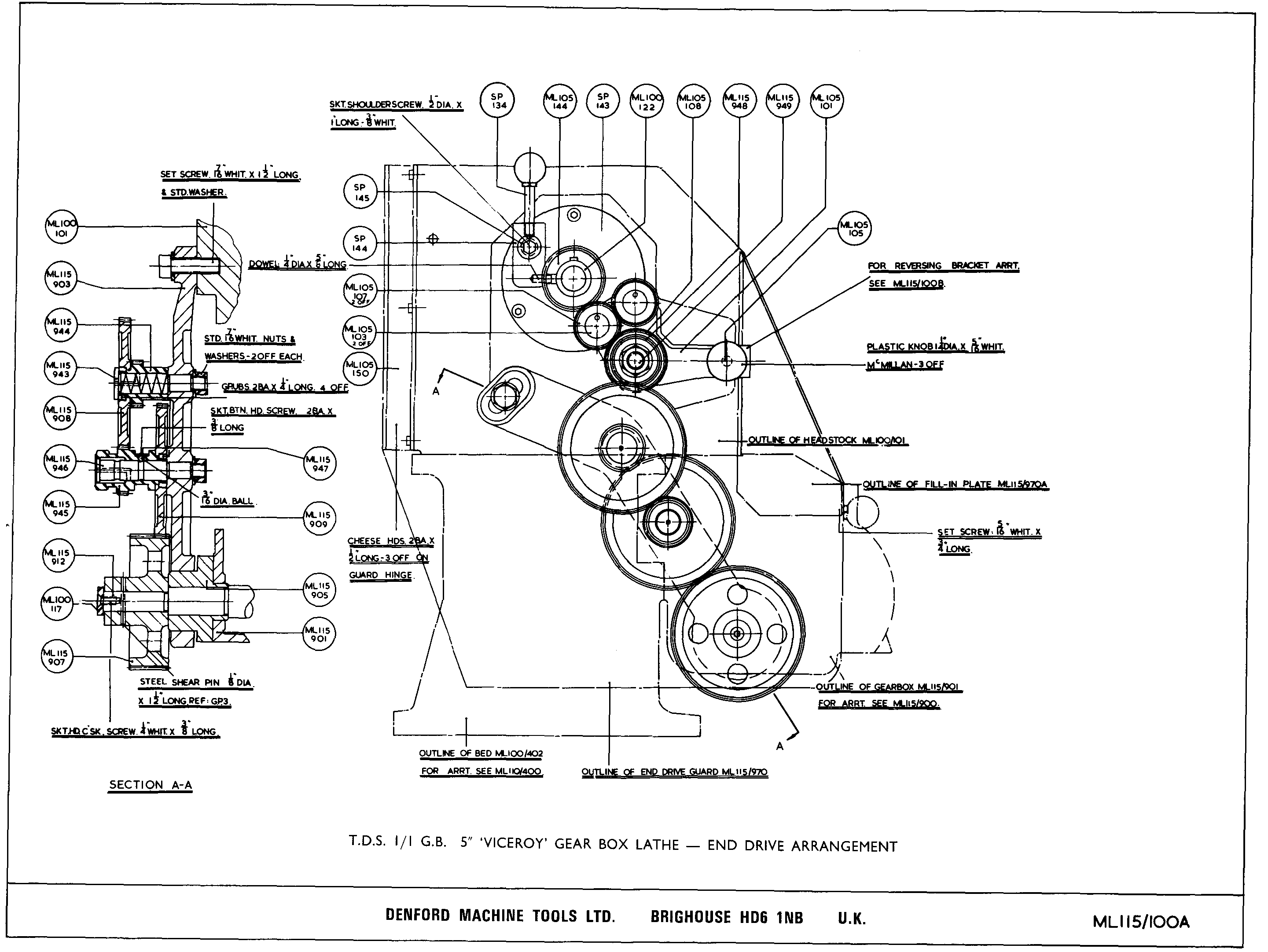

ML 115/100A
ML 115/100B

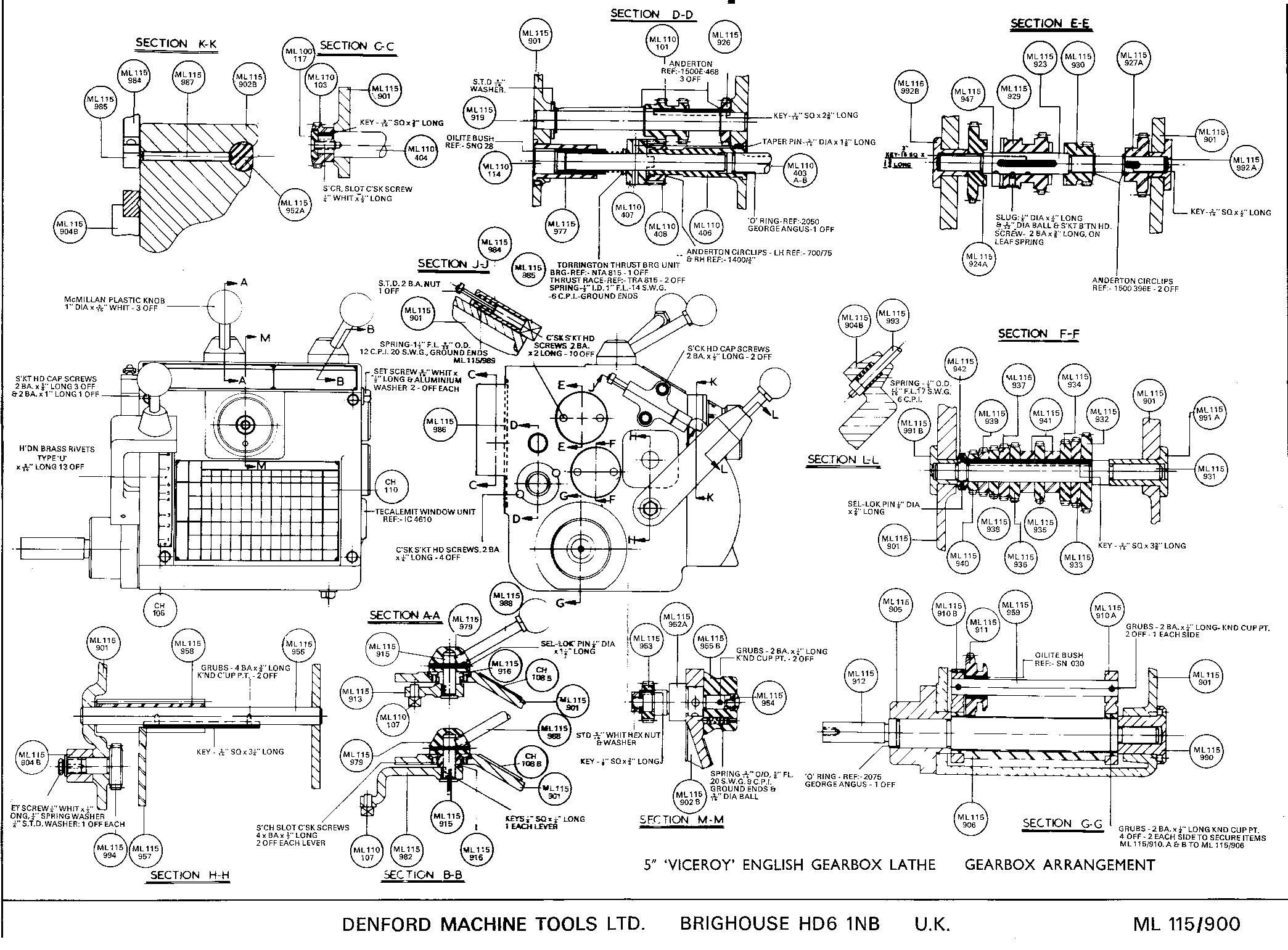

ML 115/900/M


User avatar
Denford Admin
Site Admin
Posts: 3632
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: Viceroy Drawings scans.

Post by Denford Admin » Tue 24 Aug , 2010 10:27 am

Thanks Les - i'll make this stick to the top of the forum and put the drawing numbers in so they can be searched

User avatar
Denford Admin
Site Admin
Posts: 3632
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: Viceroy Drawings scans ML100/xxx

Post by Denford Admin » Wed 02 Feb , 2011 9:58 am

Here's another couple of gearbox drawings:
Attachments
ML115_903.pdf
(55.74 KiB) Downloaded 1063 times
ML115_900B.pdf
(76.25 KiB) Downloaded 1149 times
ML115_900A.pdf
(54.88 KiB) Downloaded 1117 times
