Versa Laser Rastering Mispositioning Error

Post by bradders » Wed 01 Aug , 2007 13:36 pm

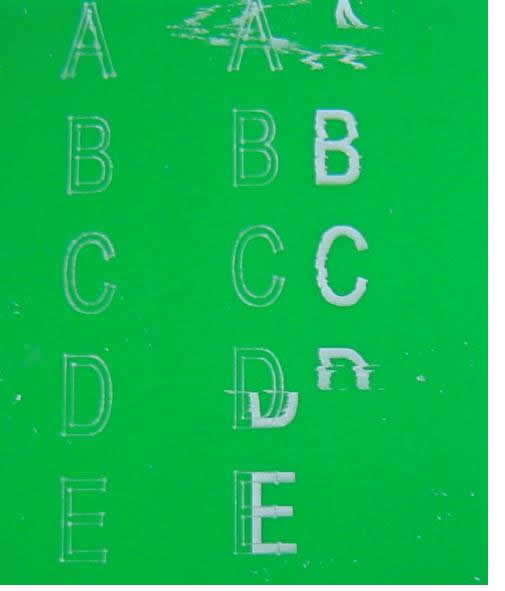

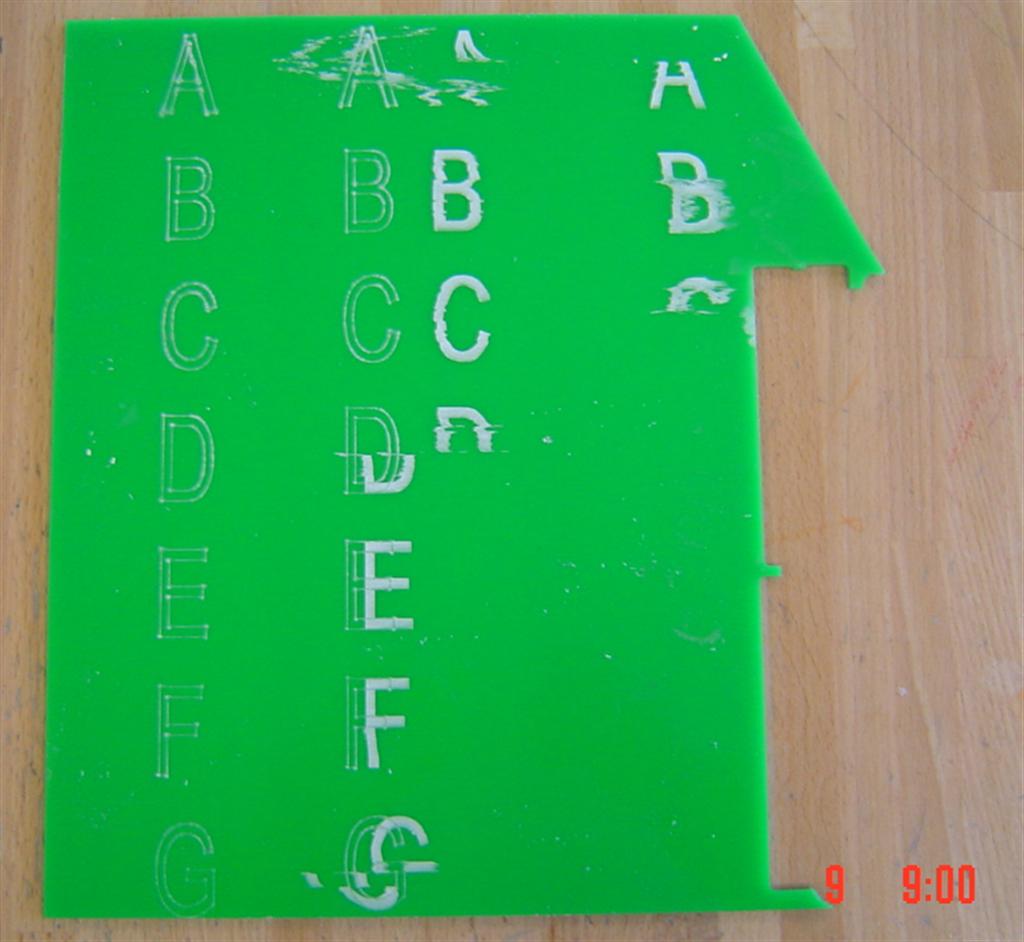

My Versa Laser has started mispositioning while rastering after months of problem free use?
Attachments
Versa Laser mispositioning.JPG
Versa Laser mispositioning.JPG (19.56 KiB) Viewed 4168 times
Versa Laser mispositioning.JPG
Versa Laser mispositioning.JPG (64.96 KiB) Viewed 4171 times
Last edited by bradders on Wed 01 Aug , 2007 13:47 pm, edited 4 times in total.
Top
User avatar
bradders
CNC Guru
CNC Guru
Posts: 1251
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:
Contact bradders

Post by bradders » Wed 01 Aug , 2007 13:40 pm

Make sure the Right Hand, X axis drive pulley (Underneath the brushed steel carriage cover above the lens) is securely attached to the stepper motor drive shaft with the Allen Screw
