TP 128 Toolpost height adjustment procedure

Post by bradders » Wed 29 Apr , 2009 10:07 am

Customer writes

"What is the procedure for adjusting the tool height on a TP 128 Toolpost ?"
Last edited by bradders on Wed 29 Apr , 2009 10:18 am, edited 2 times in total.
Top
User avatar
bradders
CNC Guru
CNC Guru
Posts: 1251
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:
Contact bradders

Post by bradders » Wed 29 Apr , 2009 10:08 am

1. Turn power on to machine and connect software

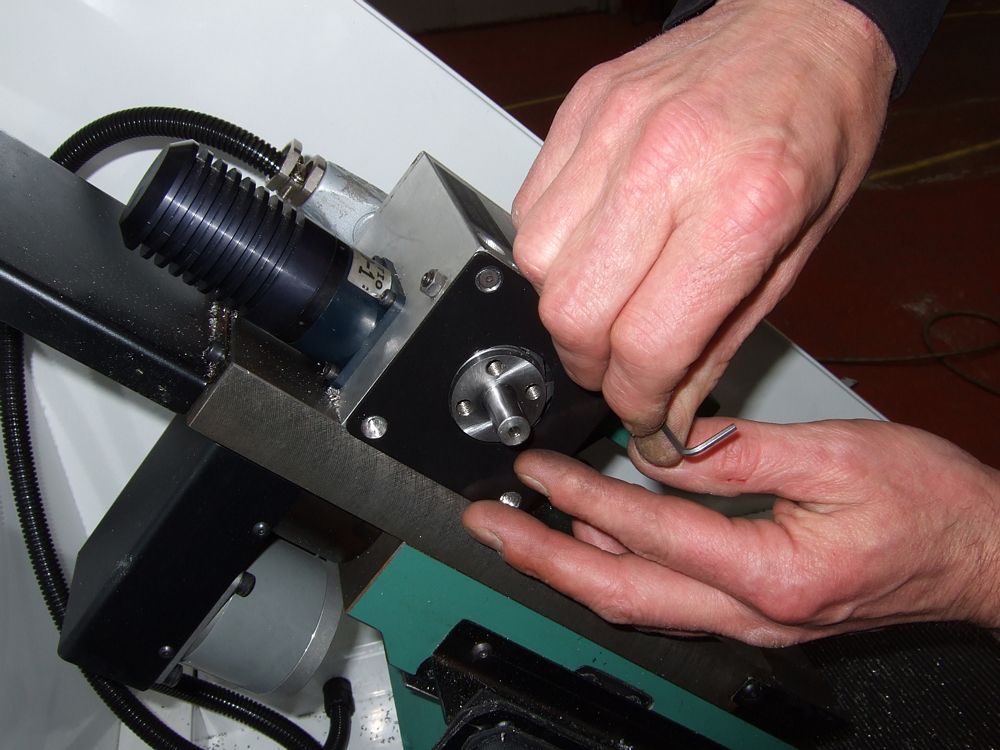

2. Slacken both locking nuts on grub screws (See picture below)
3. Slacken one grub screw and check if the tool point is going in the correct direction. I.e. is it aligning with the centre line of the chuck / billet ?
4. If the tool point is going in the wrong direction, screw the grun screw in WHILST INITIATING AN AUTOMATIC TOOL CHANGE VIA THE SOFTWARE. Repeat this procedure until the tool point is aligned with the centre line of the chuck / billet ?

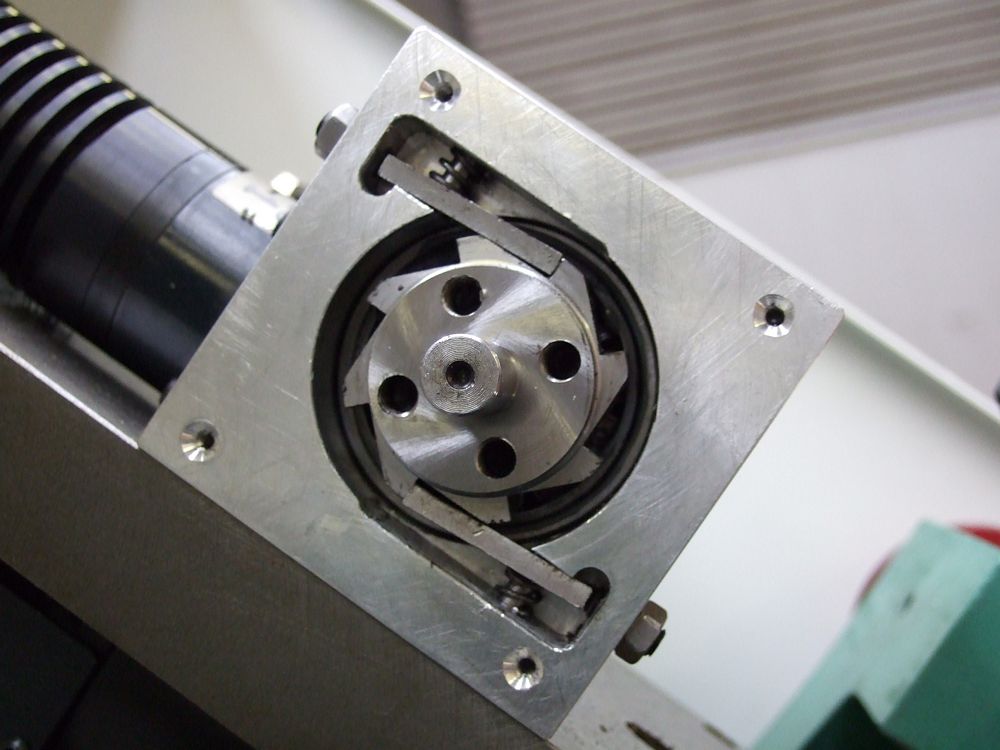

5. Screw in the other grub screw until it comes in contact with the rachet tab (See picture below)
6. Retighten both locking nuts on the grub screws.

If toolpost hangs up the software after performing a tool change, check out this link below. It may just be admin rights on the computer

viewtopic.php?t=1990&highlight=toolpost
