Fitting A BW Electronics DRO to My ViceroryTDS/PCS

Post by Taylon » Wed 20 Nov , 2013 6:23 am

Hello to you all,

Thought that this might be of interest how I fitted a DRO to my TDS lathe. A swivel mount was made from square section tube and a few other machined parts. The photos tell the story. For further info send me a PM request.

Kindest regards, John R.
Attachments

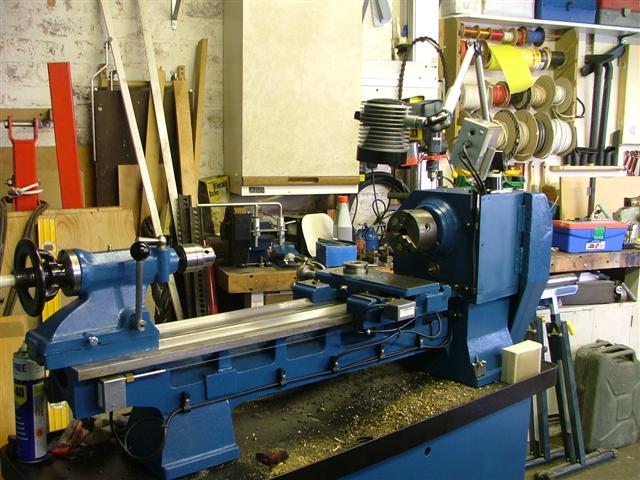

Sensor Cable Control Overview

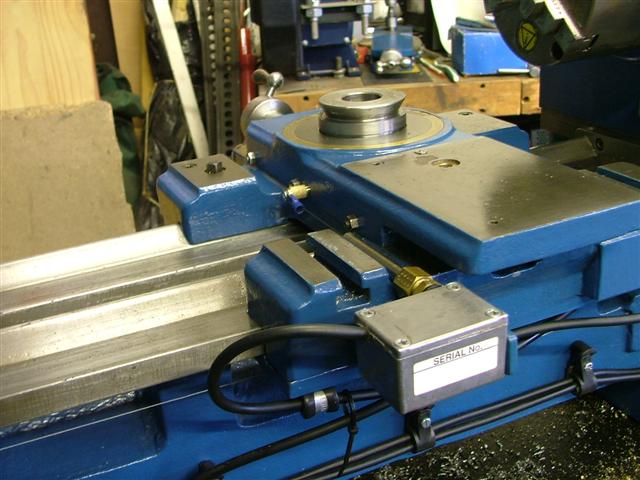

Sensor Cable Control

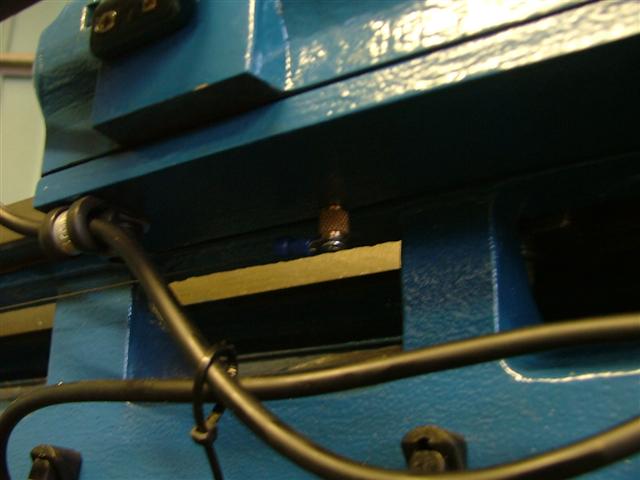

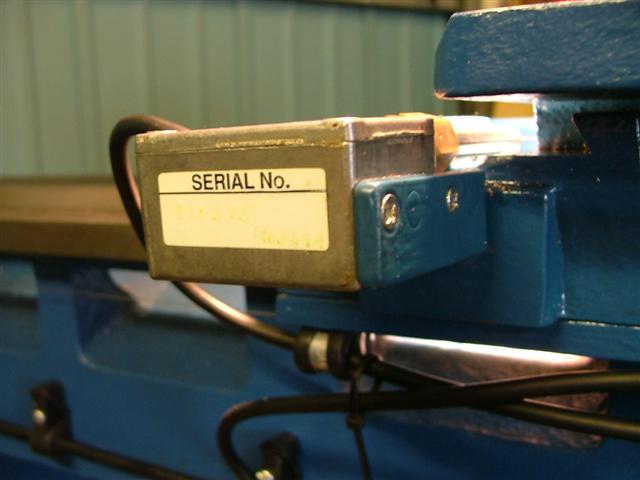

Sensor to Bed Mounting

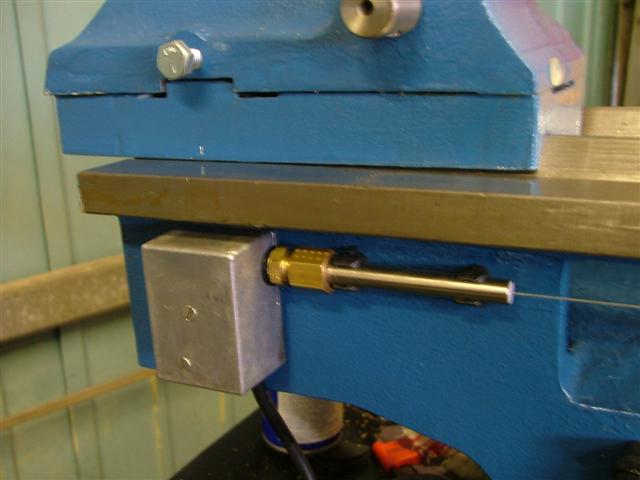

Saddle Sensor End Mount

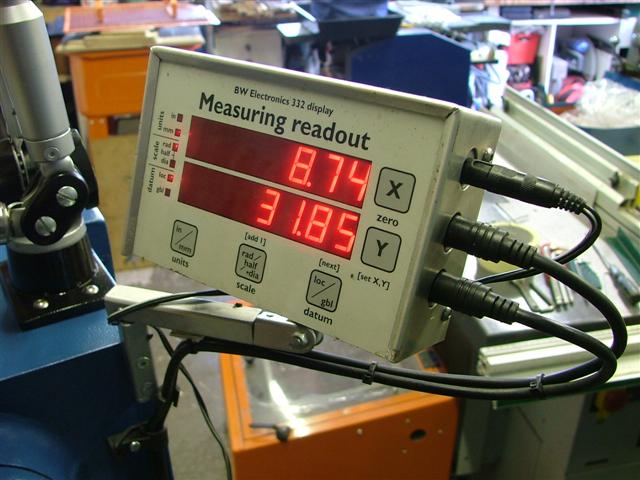

DRO Working

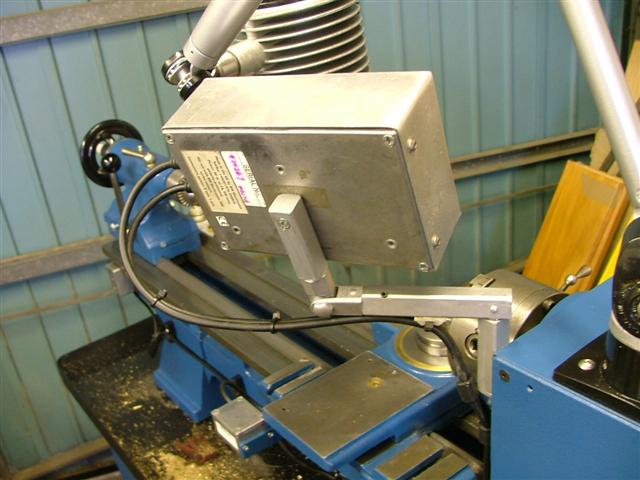

Back of DRO & Mount

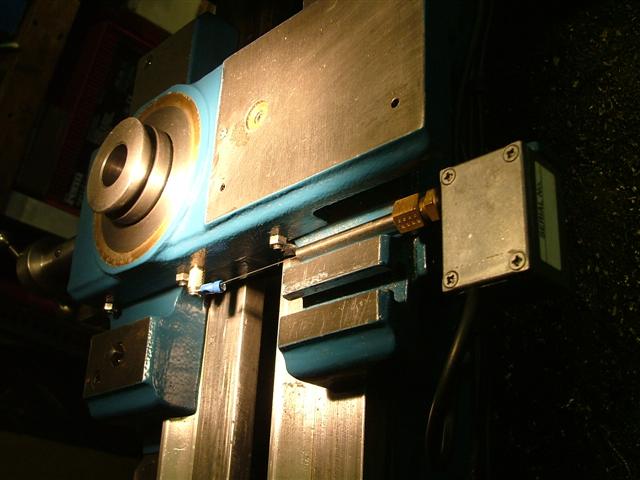

Cross Slide Sensor Fitting

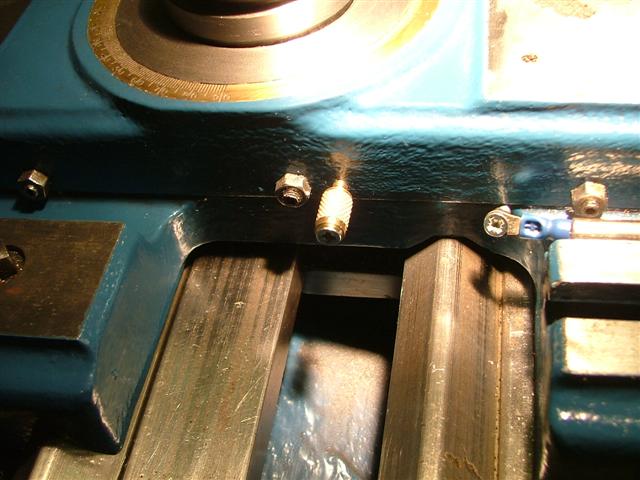

Cross Slide Sensor End Mount
Cross Slide Sensor Mount

triac
CNC Expert
CNC Expert
Posts: 100
Joined: Fri 15 Dec , 2006 20:18 pm
Location: West Norfolk

Re: Fitting A BW Electronics DRO to My ViceroryTDS/PCS

Post by triac » Wed 27 Nov , 2013 12:56 pm

Hi, nice job. I used BW readouts on my milling machine for several years, I would advise some cover over the wire on the cross slide to keep it clear of swarf, if you snag the wire any kinking will prevent accurate readings, in extreme case the wire will be prevented from reeling back on the internal spool, they can of course be replaced but prevention is better than cure.
Emgee

Taylon
CNC Apprentice
CNC Apprentice
Posts: 48
Joined: Fri 05 Apr , 2013 0:14 am
Hardware/Software: Standard PC using Firefox Browser.
Denford Viceroy TDS/PCS version 2 Metric Lathe
Location: Staffordshire, UK

Re: Fitting A BW Electronics DRO to My ViceroryTDS/PCS

Post by Taylon » Tue 17 Dec , 2013 17:11 pm

Dear Emgee,

Thank you for your kind comments and advice, will try and make some sort of cover in the future when the weather gets warmer as the lathe has been put to bed for the winter months. Its too cold in my garage to work at the moment.

With regard to the senor wire snagging I accidentally released an extended wire on one of the sensors and found to my cost what results. Had to repair and re-tension the sensor wire, hours of work....

Kindest regards, John R.
