Hi
Can anyone tell me what my pump should be pulling?
I am only getting 12.5psi
Vacuum pump
Moderators: Martin, Steve, Mr Magoo
-
Suggy
- Posts: 24
- Joined: Thu 09 Jul , 2020 0:20 am
- Hardware/Software: DesignSpark Mechanical (not too bad with it)
Fusion360 Trying to get to grips with it
Microrouter v4 (still learning) - Location: Wakefield, UK
Vacuum pump
- Attachments
-
- 6938EBD2-A09A-4121-9CD7-F2F1F9FD158D.jpeg (369 KiB) Viewed 17721 times
Re: Vacuum pump

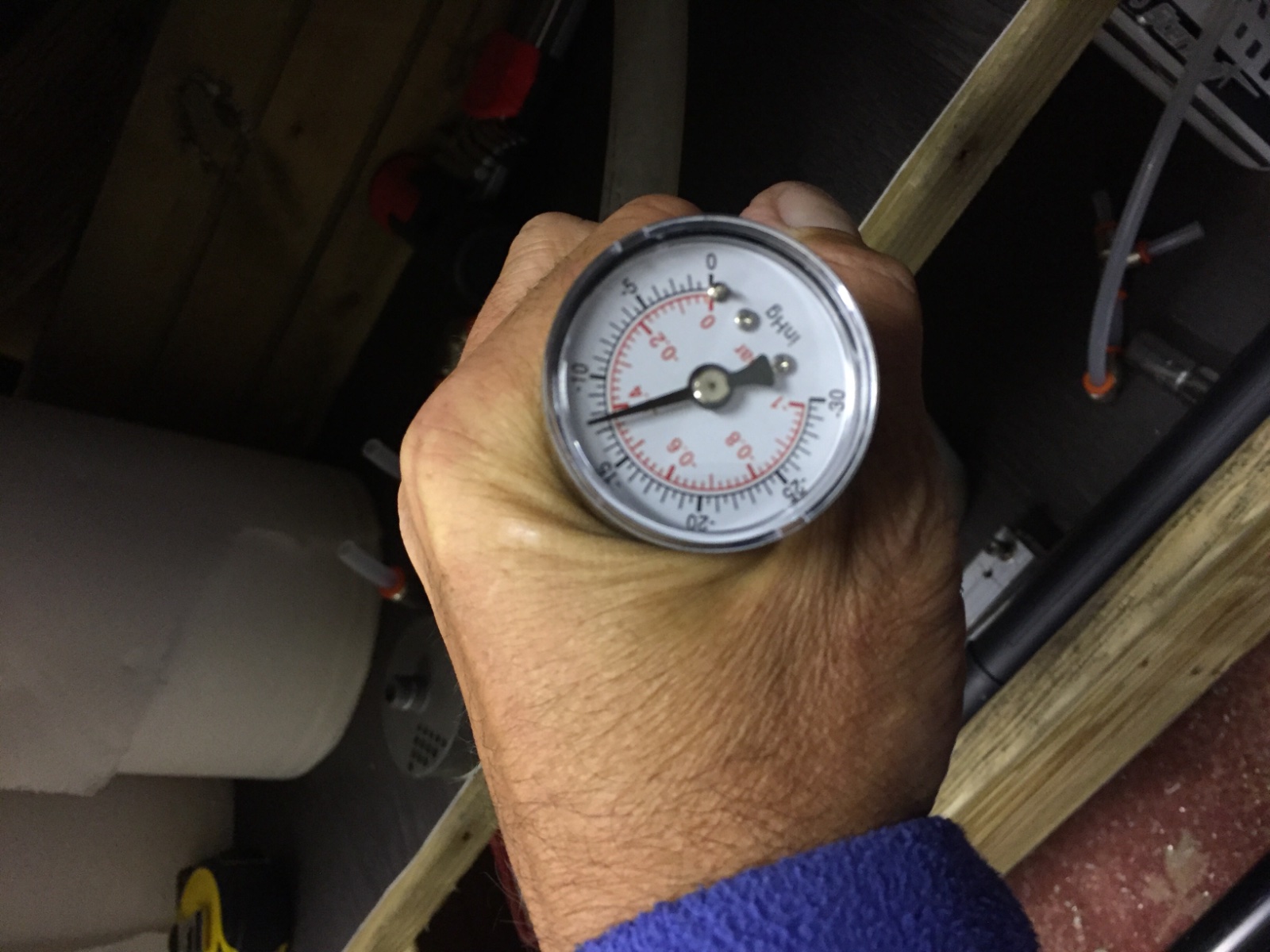

The image is a bit blurry but that looks to be 12.5 inHg (inches Mercury) where a full vacuum is 29.92 inHg so the vacuum is not good but it depends on the pump spec. 12.5 inHg is about 6.1 psi. I've pulled double that vacuum with an air injection vacuum generator.
-
Suggy
- Posts: 24
- Joined: Thu 09 Jul , 2020 0:20 am
- Hardware/Software: DesignSpark Mechanical (not too bad with it)
Fusion360 Trying to get to grips with it
Microrouter v4 (still learning) - Location: Wakefield, UK
Re: Vacuum pump
Ok thanks for the reply
My bad should read the gauge better it is 12.5inHg
Pump is 115v
Had the pump in bits and everything look ok but I’m no expert
I’m guessing it’s the one that came with the machine.
Will get the spec off the pump later this evening
My bad should read the gauge better it is 12.5inHg
Pump is 115v
Had the pump in bits and everything look ok but I’m no expert
I’m guessing it’s the one that came with the machine.
Will get the spec off the pump later this evening
-
Suggy
- Posts: 24
- Joined: Thu 09 Jul , 2020 0:20 am
- Hardware/Software: DesignSpark Mechanical (not too bad with it)
Fusion360 Trying to get to grips with it
Microrouter v4 (still learning) - Location: Wakefield, UK
Re: Vacuum pump

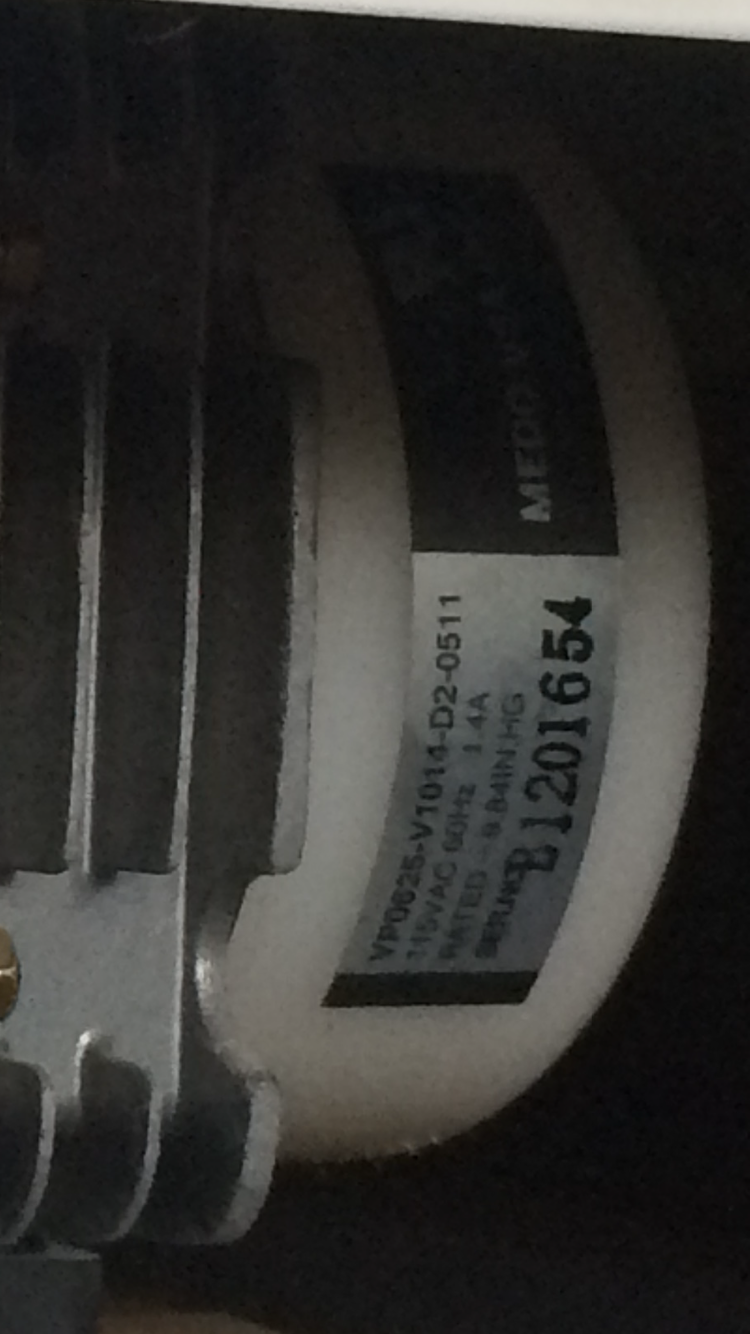

Little hard to see but this is the label on the side
- Attachments
-
- 369A053A-FF04-4989-A09D-3C439E4BD741.png (1.02 MiB) Viewed 17708 times
Re: Vacuum pump
The part number VP0625-V1014-D2-0511 is searchable and comes up with quite a few hits on ebay and the maker https://www.nitto-kohki.eu/images/storie ... p_0625.pdf . Quoted 9.84 inHg max vacuum so you've got a bit better so it seems it's working. The PDF gives the performance specs for flow, vacuum etc.
-
TDIPower
- CNC Guru
- Posts: 613
- Joined: Tue 29 Apr , 2014 18:38 pm
- Hardware/Software: Starturn 5 (sort of running, I will get this done!)
Lathe cam designer V1.11
Quickturn 2D Design
FANUC offline and online programs.
Microrouter Pro NS V5 (microstep)
VR2 and VR5
Boxford VMC260
Techsoft 2d Design tools V1 > V2
ProDesktop
Fusion 360
Deskproto
Re: Vacuum pump
Yep same spec as mine, they just aren't designed for use with the type of bed you have. Did you try it with the rubber and cover all the holes?
On the original Trend units the version they did for use with a vacuum cleaner had a fluted nozzle then went in to the pipe from the vac, this allowed it to draw air from the bed and from the room as a vacuum cleaner is designed for constant air flow not pulling a vacuum. Using a vacuum cleaner might have to be the way to go with that bed. If you got a larger version of the pump (ebay amazon as fish tank pumps) it would be quieter BUT you will end up drawing dust through the open holes into the pump.
Pete
On the original Trend units the version they did for use with a vacuum cleaner had a fluted nozzle then went in to the pipe from the vac, this allowed it to draw air from the bed and from the room as a vacuum cleaner is designed for constant air flow not pulling a vacuum. Using a vacuum cleaner might have to be the way to go with that bed. If you got a larger version of the pump (ebay amazon as fish tank pumps) it would be quieter BUT you will end up drawing dust through the open holes into the pump.
Pete
-
Suggy
- Posts: 24
- Joined: Thu 09 Jul , 2020 0:20 am
- Hardware/Software: DesignSpark Mechanical (not too bad with it)
Fusion360 Trying to get to grips with it
Microrouter v4 (still learning) - Location: Wakefield, UK
Re: Vacuum pump
Yer tried it with the mat and still not strong enough.
Have all the fittings for cleaner to run it, just need to cut a 63mm hole in the body to mound the port in
Have all the fittings for cleaner to run it, just need to cut a 63mm hole in the body to mound the port in
Re: Vacuum pump
It should be fine.
Have you cleaned the filter? Also check for dust in the clear pipe.
Have you cleaned the filter? Also check for dust in the clear pipe.
-
TDIPower
- CNC Guru
- Posts: 613
- Joined: Tue 29 Apr , 2014 18:38 pm
- Hardware/Software: Starturn 5 (sort of running, I will get this done!)
Lathe cam designer V1.11
Quickturn 2D Design
FANUC offline and online programs.
Microrouter Pro NS V5 (microstep)
VR2 and VR5
Boxford VMC260
Techsoft 2d Design tools V1 > V2
ProDesktop
Fusion 360
Deskproto
Re: Vacuum pump
Martin
he is using a very different vacuum bed which has lots of very small holes that are all open unlike the Trend bed with the ball valves. I think it is more designed for use on a vacuum cleaner which requires a constant airflow and will act as a form of extraction at the same time rather than a proper vacuum pump designed to evacuate a sealed area.
Pete
he is using a very different vacuum bed which has lots of very small holes that are all open unlike the Trend bed with the ball valves. I think it is more designed for use on a vacuum cleaner which requires a constant airflow and will act as a form of extraction at the same time rather than a proper vacuum pump designed to evacuate a sealed area.
Pete
