Hello, I am generating a toolpath using a DXF straight into VRMilling. However, when I switch from screen 1 to screen 2 some extra lines are added which we do not want to cut! Can you help us? (Please view attached images; the second screen is above the first screen)
Thanks.
Denford Novamill
VRMilling version 5.63.0.680
Windows 7 Pro
DXF into VRMilling adds extra lines
Moderators: Martin, Steve, Mr Magoo
-
oyoung
- CNC Apprentice
- Posts: 45
- Joined: Fri 18 Jul , 2008 14:13 pm
- Hardware/Software: Quickcam Pro v1.13.0.76
VR Milling v5.63.0.680
Novamill
Microrouter Pro
Win 7 Pro
DXF into VRMilling adds extra lines
- Attachments
-

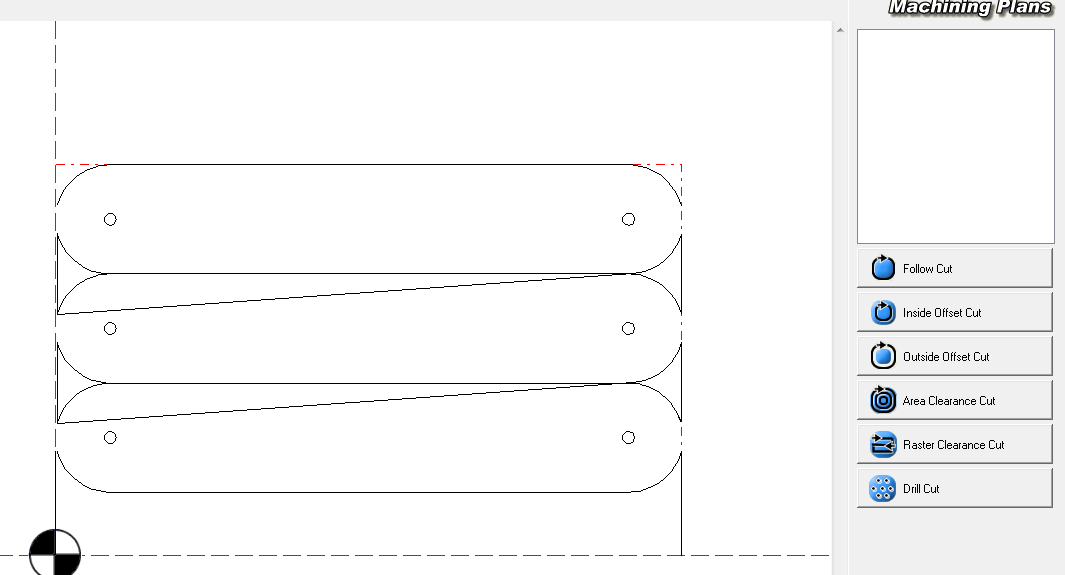

- When we go to the second screen we get these extra lines :(
- screen 2.PNG (31.3 KiB) Viewed 12126 times
-

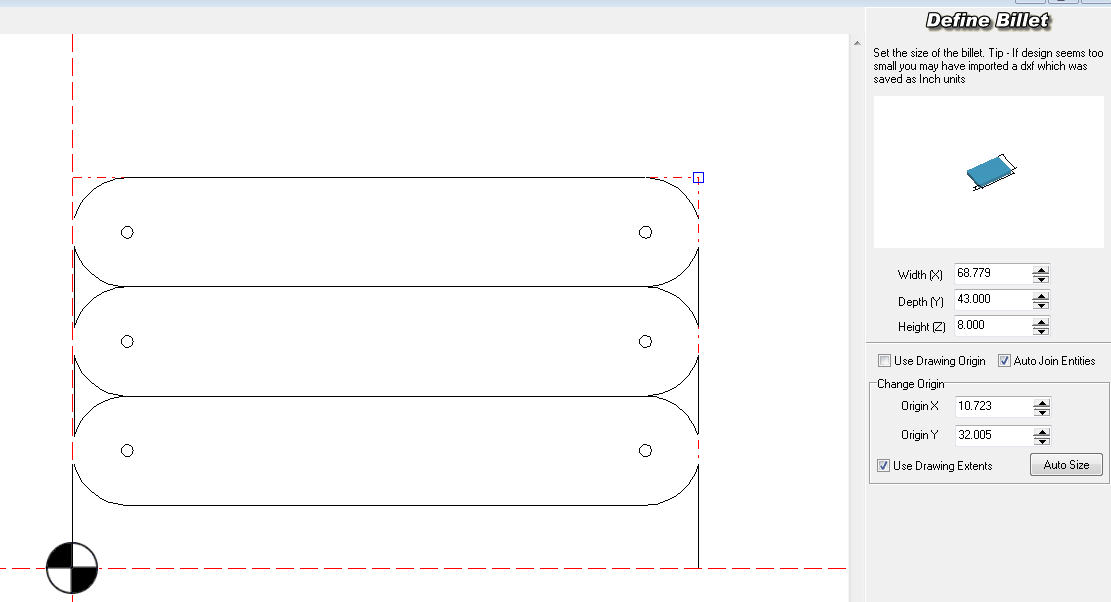

- First screen, with required toolpath...
- screen 1.PNG (24.37 KiB) Viewed 12126 times
Re: DXF into VRMilling adds extra lines
The problem is that the design drawing is incorrect and the vector is not closed so the software closes it automatically Check your design and make sure there are no overlapping lines. Select all the lines and join them together.
