Triac VMC servo don't move

trident · Post by **trident** » Mon 13 Apr , 2009 17:52 pm

I have a Triac VMC, We finally got the software running (VRmilling Ver.5) and connected to the machine (with the USB connection), it says it is homing but nothing moves. Then it errors out at 55 seconds. If anyone has any ideas please throw them my way.

Triac VMC
Serial # EO4231
Serial of Electrics is used 000012028
Export # 4281
Dispatch date April 93

Martin · Post by **Martin** » Mon 13 Apr , 2009 18:46 pm

It may be the Axis Drive curcuit breaker that has tripped. Have a look inside the electrics in the end panel. Have the drives got any signs of power to them? I think there should be a 10/15 amp C/B that may have tripped. It will be marked up AD C/B or similar.

trident · Post by **trident** » Mon 13 Apr , 2009 19:46 pm

I have got far enough to tell if there is power to the motors, it doesn't look like it right now, I found the Pnumatics box and was able to get the tool change to move up and down. Are you talk about breakers in the main power box, I didn't find any in there.

Post by **Denford Admin** » Fri 17 Apr , 2009 11:17 am

Had a quick look at the electrical drawings from here:
viewtopic.php?t=2040

Looks like you should check F4 or F3 which is a 6.3AMP fuse going to the axes drive transformer.
You'll also need to check ESR relay is energised - if not, it could be that air pressure is too low for example.

trident · Post by **trident** » Fri 17 Apr , 2009 12:11 pm

We went though the ESR circuit and that is working fine. For some reason the Electrical Box is working fine we have communications, it recognizes if the door is open or the emo as been pressed, but it will not home, we can't move any of the axises, I was able to move them manually so they are not stuck, it seems like we can't communicate with the motors. I've checked all the fuses, but I will check what you have suggested, Then of course the electrical diagrams don't match the machine. I've just started working with this type of machine so it could be just something I'm missing. So if anybody has any thing, let me know and I'll check it out.
Thank you

Post by **Denford Admin** » Fri 17 Apr , 2009 12:24 pm

Then of course the electrical diagrams don't match the machine

I wondered about this after my post when I saw that you mention Servo in the title and I haven't come across any servo drive Triac drawings (yet)

I wonder if a photo of your cabinet whilst the power is on may help ?

trident · Post by **trident** » Fri 17 Apr , 2009 12:31 pm

I could have just label it wrong but I'll get some pictures today

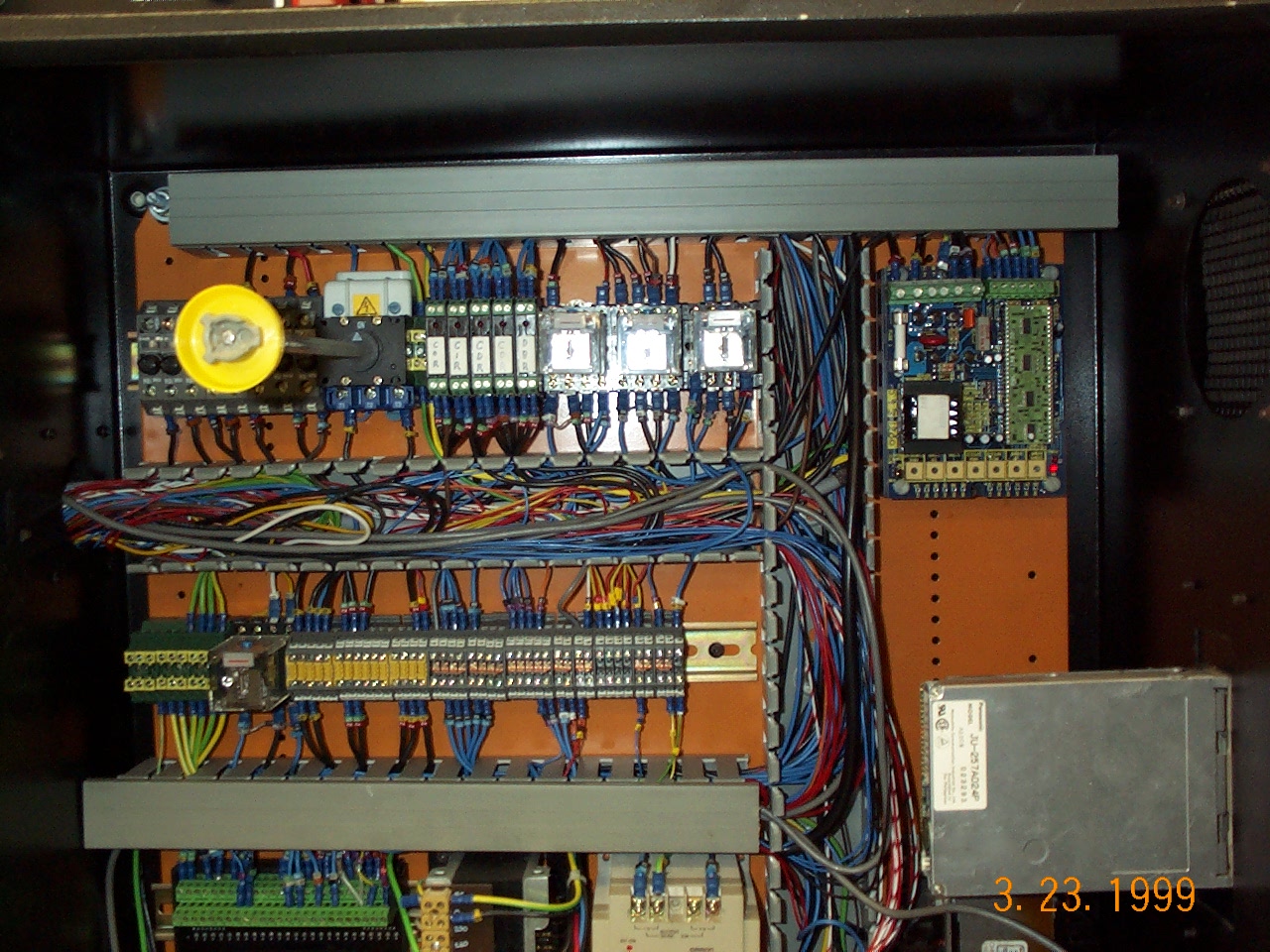

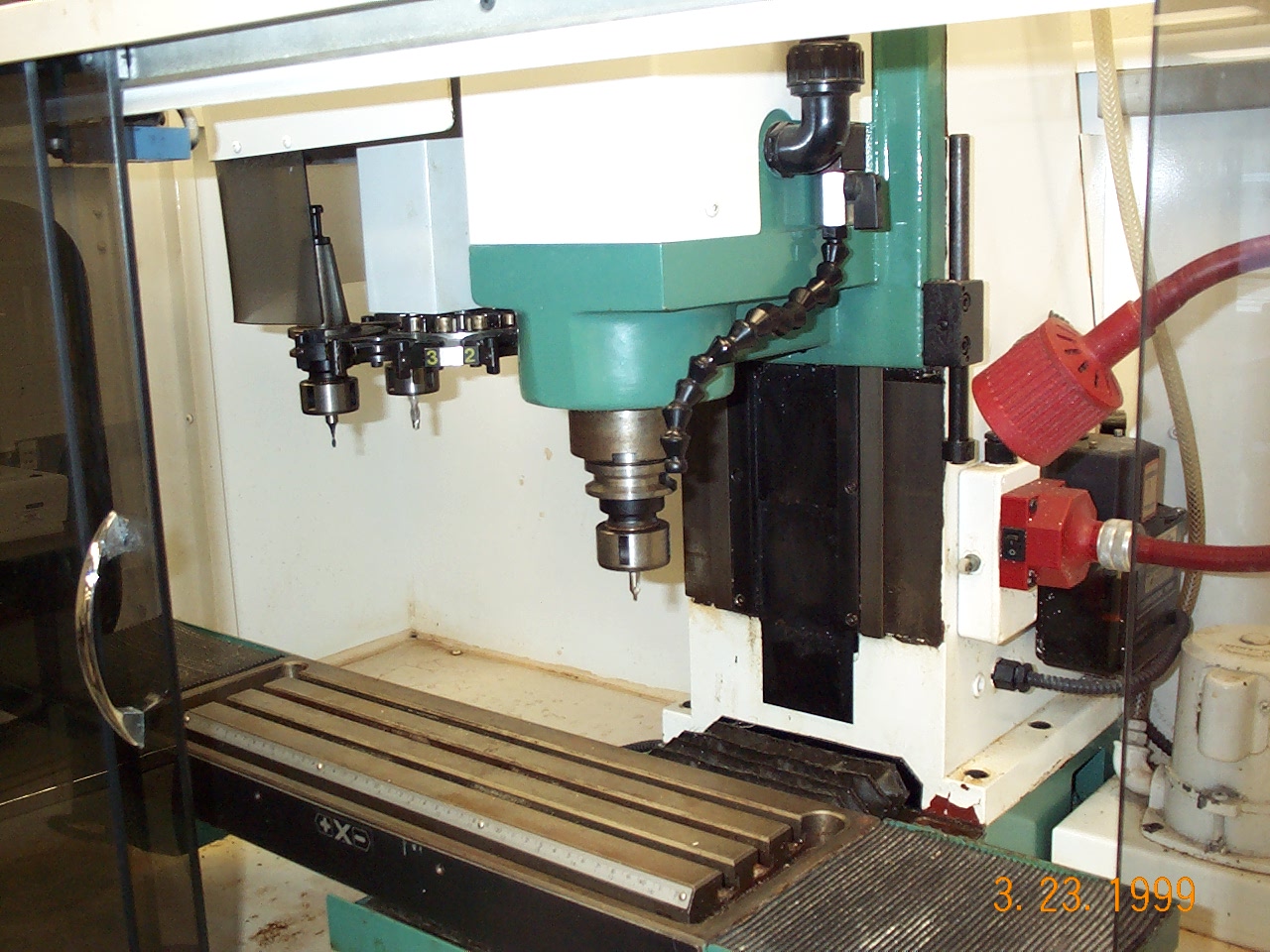

trident · Post by **trident** » Tue 21 Apr , 2009 13:58 pm

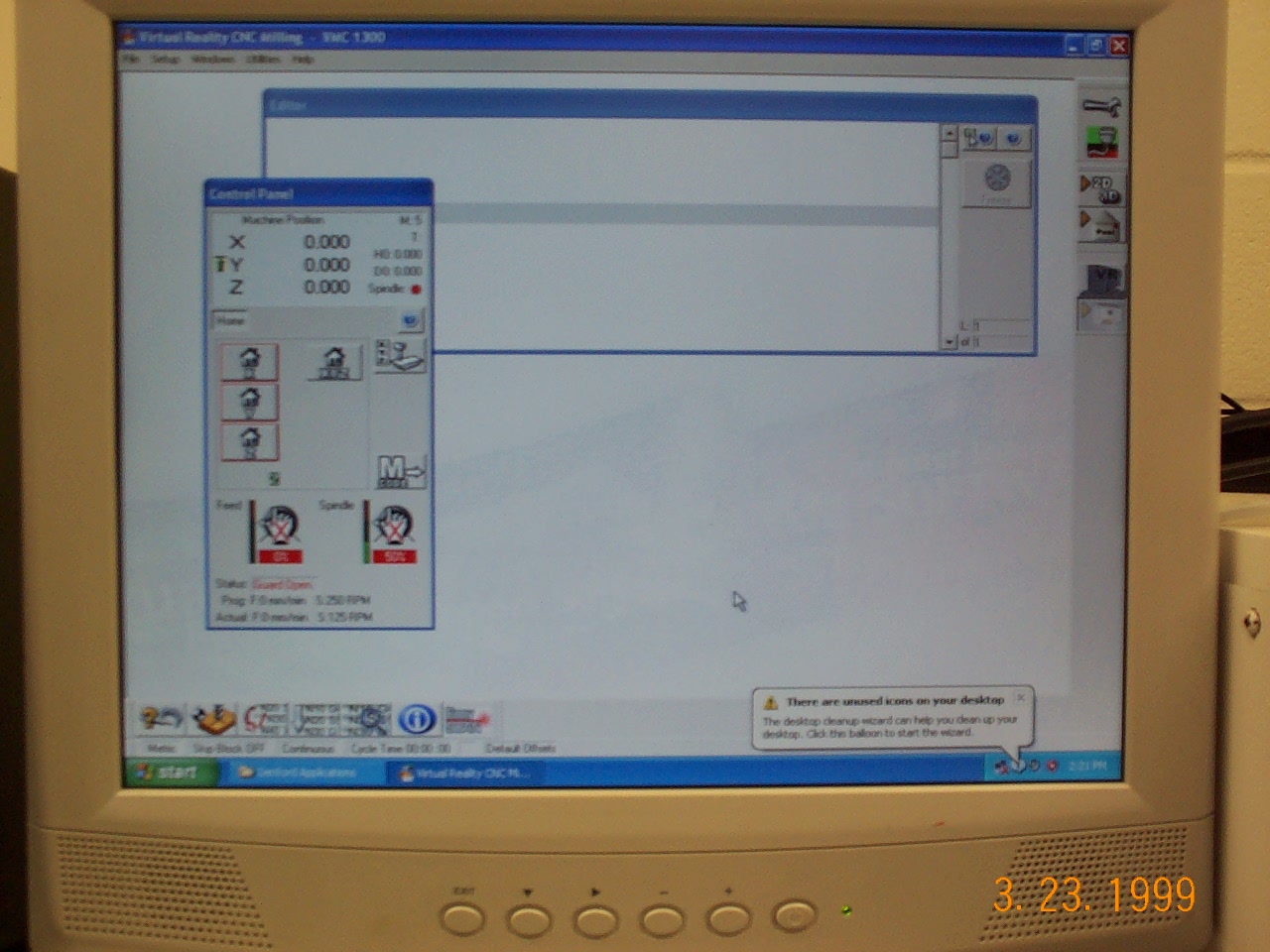

Here are the picture the Seven segment display read and 8.

Post by **Denford Admin** » Tue 21 Apr , 2009 14:07 pm

First thing to do is select TRIAC VME from the menu:
Setup > Select Machine...

See if that fixes things

trident · Post by **trident** » Tue 21 Apr , 2009 14:46 pm

We tried that, that option is not available.

Post by **Denford Admin** » Tue 21 Apr , 2009 14:50 pm

Can you install the latest version - TRIAC VME is definately there and should be the one to have selected for your machine.
VMC 1300 is a completey different machine

VR CNC Milling v 5.26 (120Mb)
https://www.denfordata.com/downloads/VRMilling_V5_26.zip

trident · Post by **trident** » Tue 21 Apr , 2009 15:01 pm

nice catch, I'll reload the software.

Martin · Post by **Martin** » Tue 21 Apr , 2009 17:21 pm

It can be hard to match the machine type to the software sometimes.

Can Trident use EasyUpgrader to set the card as TRIAC VME?
I can`t remember if it`s on the list.

trident · Post by **trident** » Tue 21 Apr , 2009 17:48 pm

I tried changing it to Triac VME with loading it with ALLOFFSETS.MOF and with default setting. Still nothing moves. It recognizes if the door is opened or closed or if the EMO is pressed but still nothing moves

trident · Post by **trident** » Tue 21 Apr , 2009 17:49 pm

Also I don't know if it is different but our machine says VMC

Martin · Post by **Martin** » Tue 21 Apr , 2009 20:07 pm

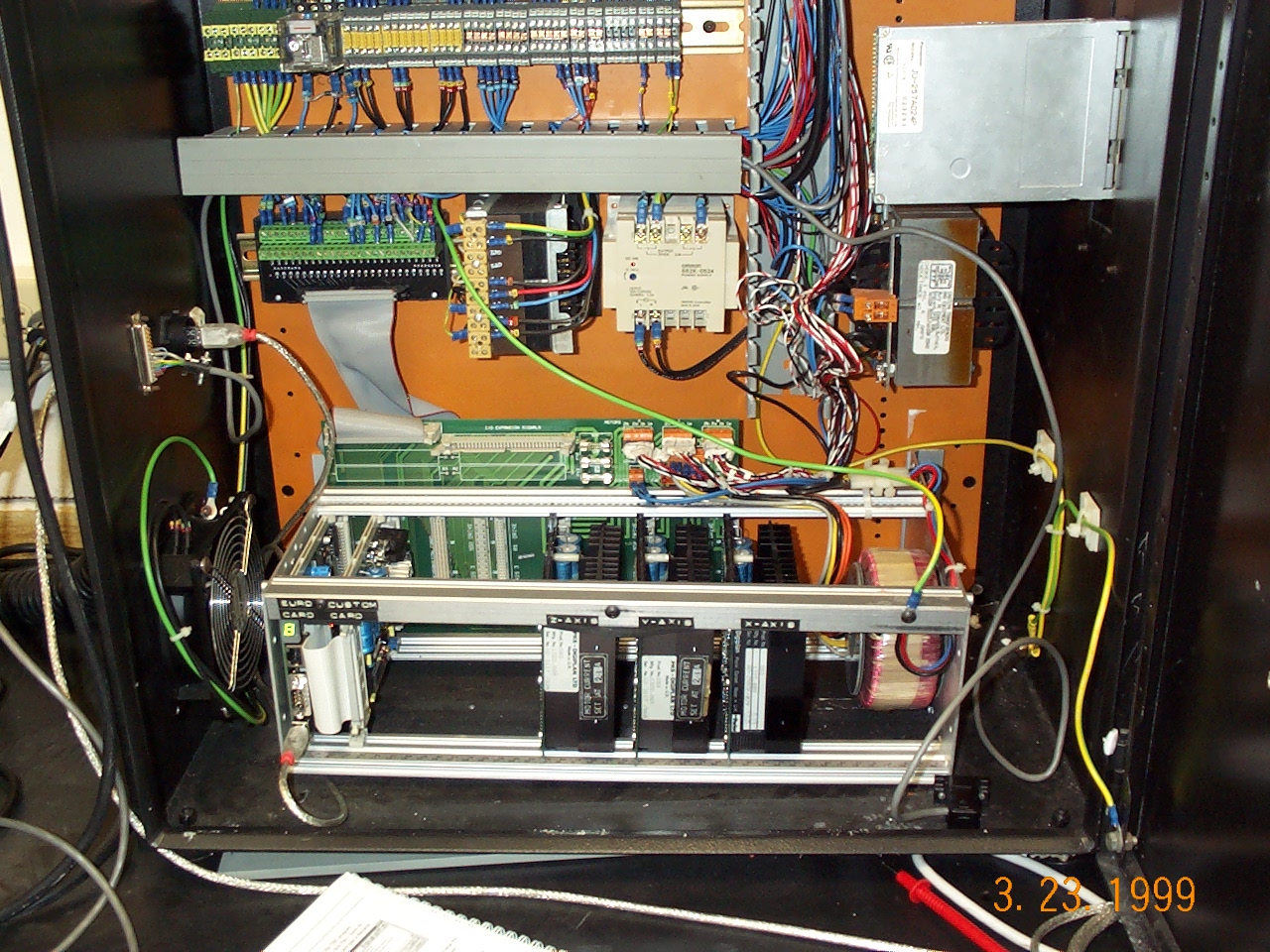

Have a look at the three fuses on the backplane just above the axis drive cards.

Can you see if the x axis ballscrew has power to it by manually turning it with the E-Stop out & in?

trident · Post by **trident** » Tue 21 Apr , 2009 20:15 pm

I'll check again the fuses, we had to replace the fuse holders and I believe they are all new fuses.

Post by **Denford Admin** » Wed 22 Apr , 2009 9:55 am

Triac VME is the one to use for the Eurocard machines which have been upgraded to V5 and USB (VME indicates the control uses a VME bus / euro card system)
As Martin says, check if the stepper motors are getting energised by trying to move an axis ballscrew by hand - with estop out and after pressing the green(?) power on button, the drives should energise and you won't be able to move the screw. Hit Estop and you should then be able to move it.

trident · Post by **trident** » Wed 22 Apr , 2009 21:49 pm

I've checked all the fuses except for F4 because I can't find it. I checked all the one by the eurocard too. One thing I did notice is GR is engaged. When i press the EMO the ESR disengages and so does the GR. When I release the EMO the ESR engages and 10 seconds later the GR engages. I don't know if that is normal or not.

Basically it all seems to be working but it will not home.

I have 90 psi on the side of the black box on the back of the machine.

The drives move manually.

Martin · Post by **Martin** » Wed 22 Apr , 2009 22:04 pm

It may be worth removing the two cards in the rack marked Euro Card & Custom Card.

Then make sure the ribbon is clamped in at both ends & then refitting.

It sounds like it is a bad connection either to the back plane or via the ribbon cable between them.
