VR Milling 2D/3D graphic resolution

Post by bradders » Wed 29 Aug , 2007 9:11 am

How do I get a better 2D/3D graphic resolution VR Milling ?
Top
User avatar
bradders
CNC Guru
CNC Guru
Posts: 1251
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:
Contact bradders

Post by bradders » Wed 29 Aug , 2007 9:14 am

With the 2D/3D selected in VR Milling, from the top menu bar select SIMULATION > BILLET MATERIAL and move the BILLET RESOLUTION slider to FINE
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Thu 30 Aug , 2007 8:58 am

Just to show the difference between fine and coarse simulation resolutions:
Attachments

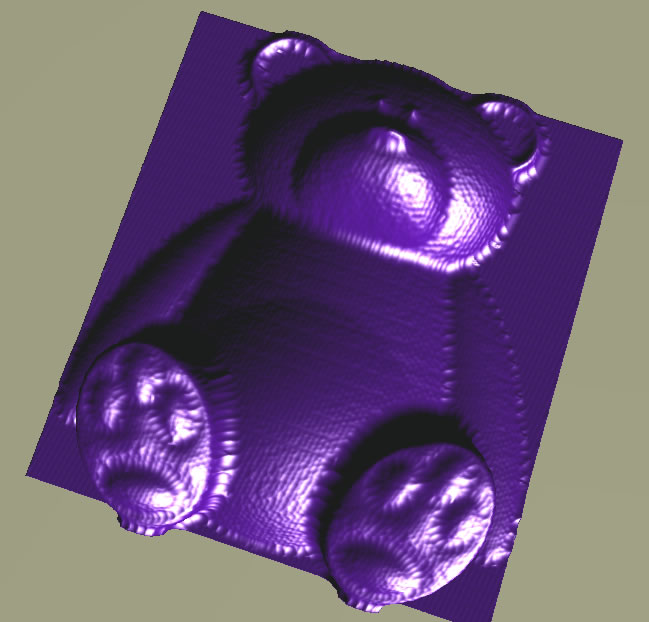

Coarse resolution
Fine (0.2) resolution
