There is a communication debug screen in Version 5 VR Milling, which can sometimes help see what's going on when you try to connect to a machine. To activate this window:
Close VRMilling
Locate the file VRMilling5.ini which should be located here:
C:\Documents and Settings\USERNAME\Application Data\Denford(where USERNAME is the name you log on with - if you don't know this, then click START > RUN... and type CMD into the command box..the command prompt window which appears should show your current login name in the directory)
Open VRMilling5.ini in notepad (double-clicking should do this by default)
Find the entry
MintDebug=false
and change to
MintDebug=true
save and close the file
Start VR Milling 5 again - when you connect to a machine the debug window will now appear
Debugging connection problems in v5 milling
Moderators: Martin, Steve, Mr Magoo
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Debugging connection problems in v5 milling

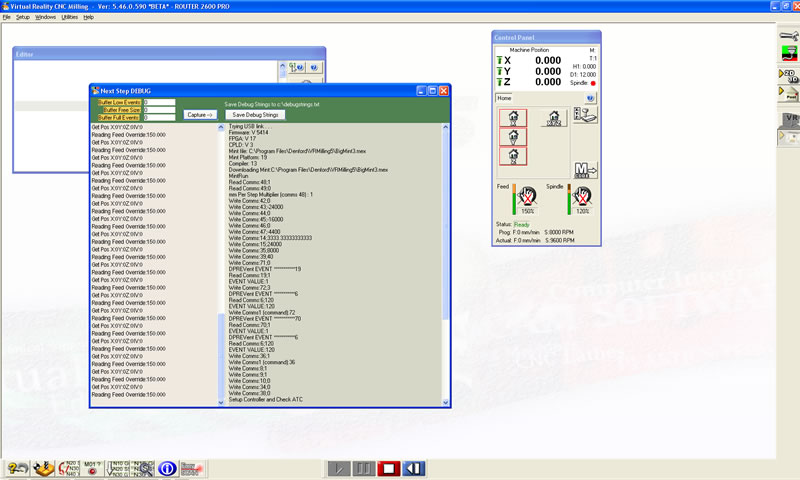

fyi the debug screen looks like this:
- Attachments
-
- MachineDebugScreen.jpg (63.71 KiB) Viewed 4146 times
