Micromill 2000 year 2002
Moderators: Martin, Steve, Mr Magoo
-
illmakemyown
- Posts: 31
- Joined: Tue 18 Mar , 2008 4:23 am
- Location: Florida USA
Micromill 2000 year 2002

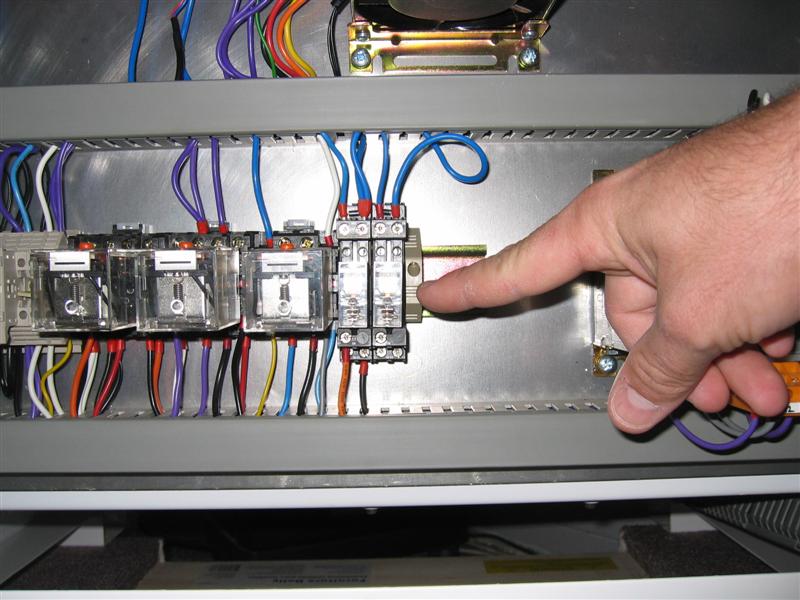

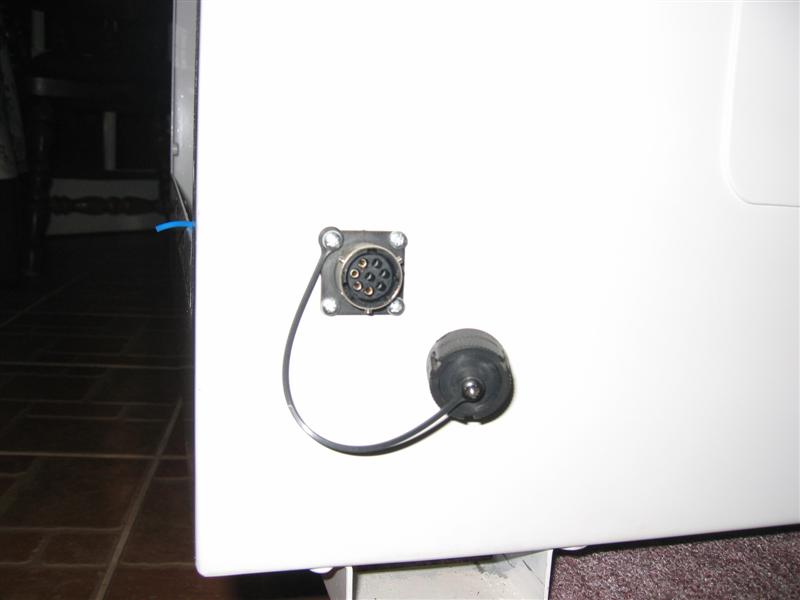

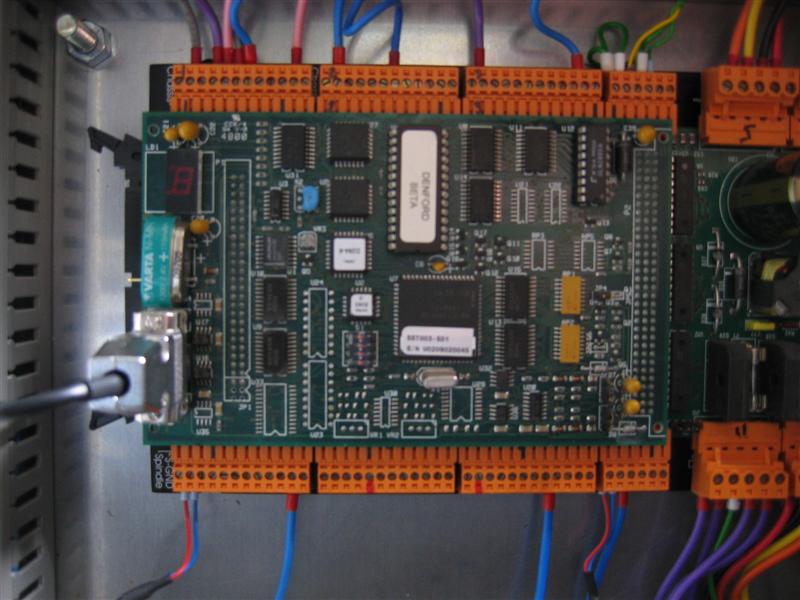

Does anyone have or does anyone know where I can get the wiring diagrams for a Micromill 2000 year 2002. The electrics serial number is U0209020045. I need them so I could figure out where two wires go from the main board ( connectors are marked in red in pic) to the last relay I am pointing to in the pics below, and to figure out what the side plug on the left side towards the rear is for. Thanks
