Came across these today:
Viceroy TDS29 Sharpedge colour brochure and a draft of the setup instructions
Viceroy TDS29 Sharpedge Documents found
Moderators: Martin, Steve, Mr Magoo
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Pictures and PDFs attached....
- Attachments
-

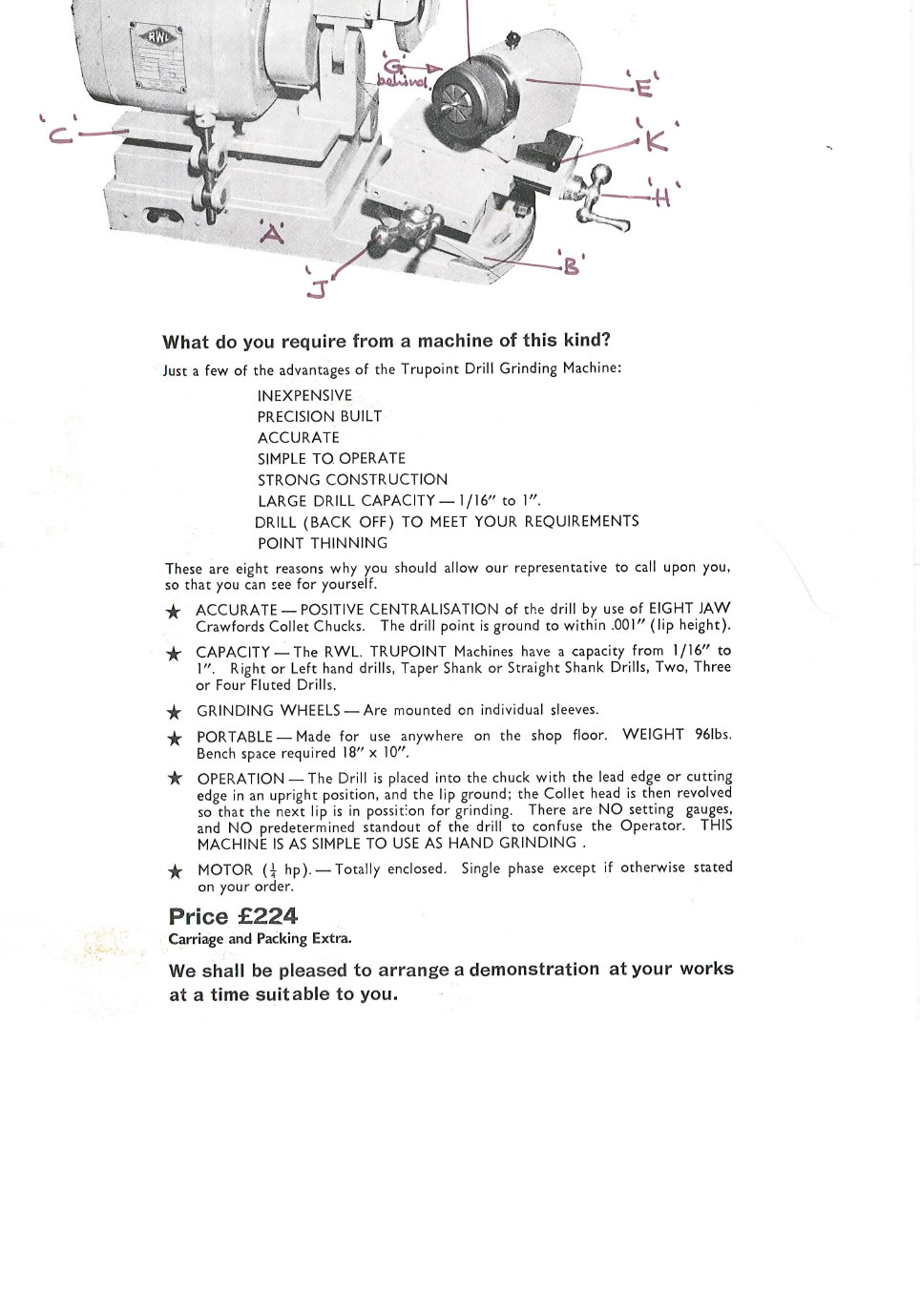

- Viceroy-TDS29-sharpedge-brochure4.jpg (184.34 KiB) Viewed 21847 times
-

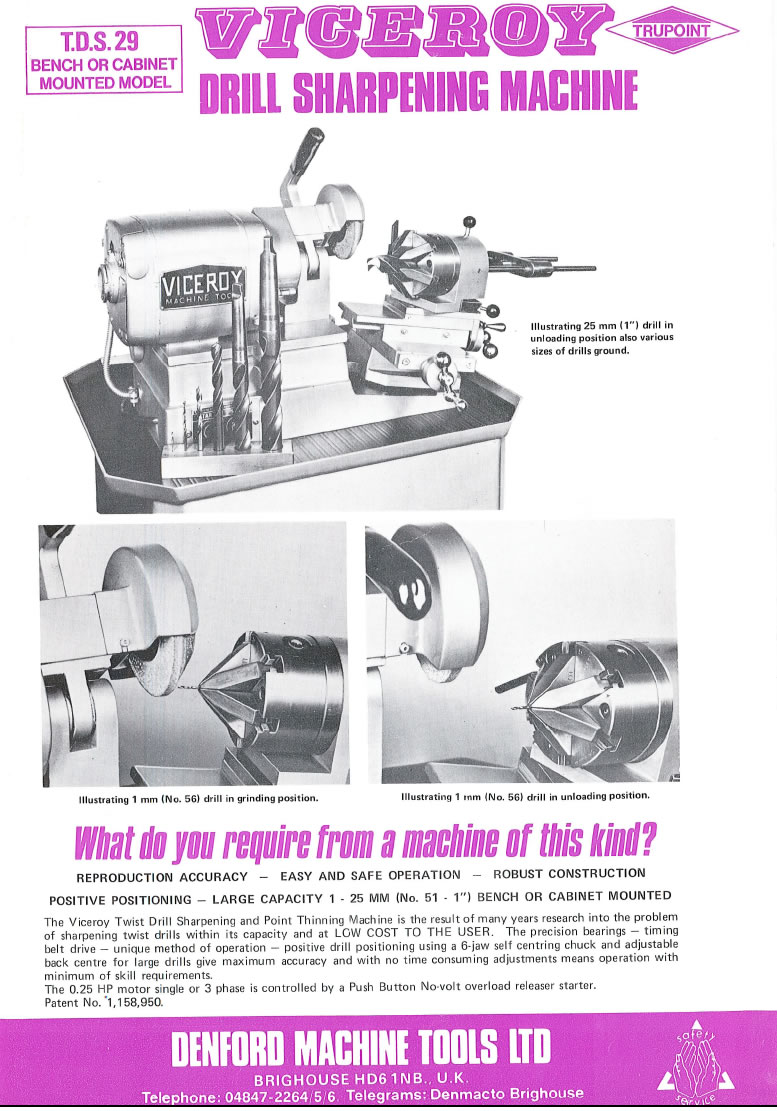

- Viceroy-TDS29-sharpedge-brochure3.jpg (167.75 KiB) Viewed 21847 times
-

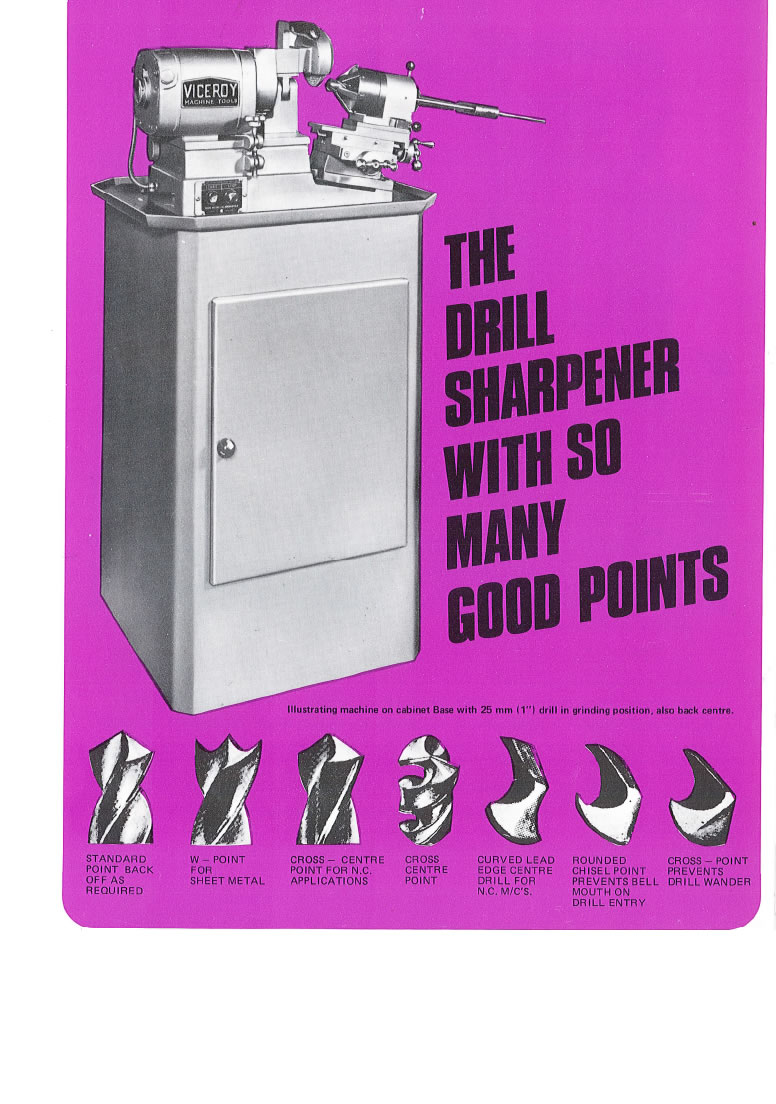

- Viceroy-TDS29-sharpedge-brochure2.jpg (159.5 KiB) Viewed 21847 times
-

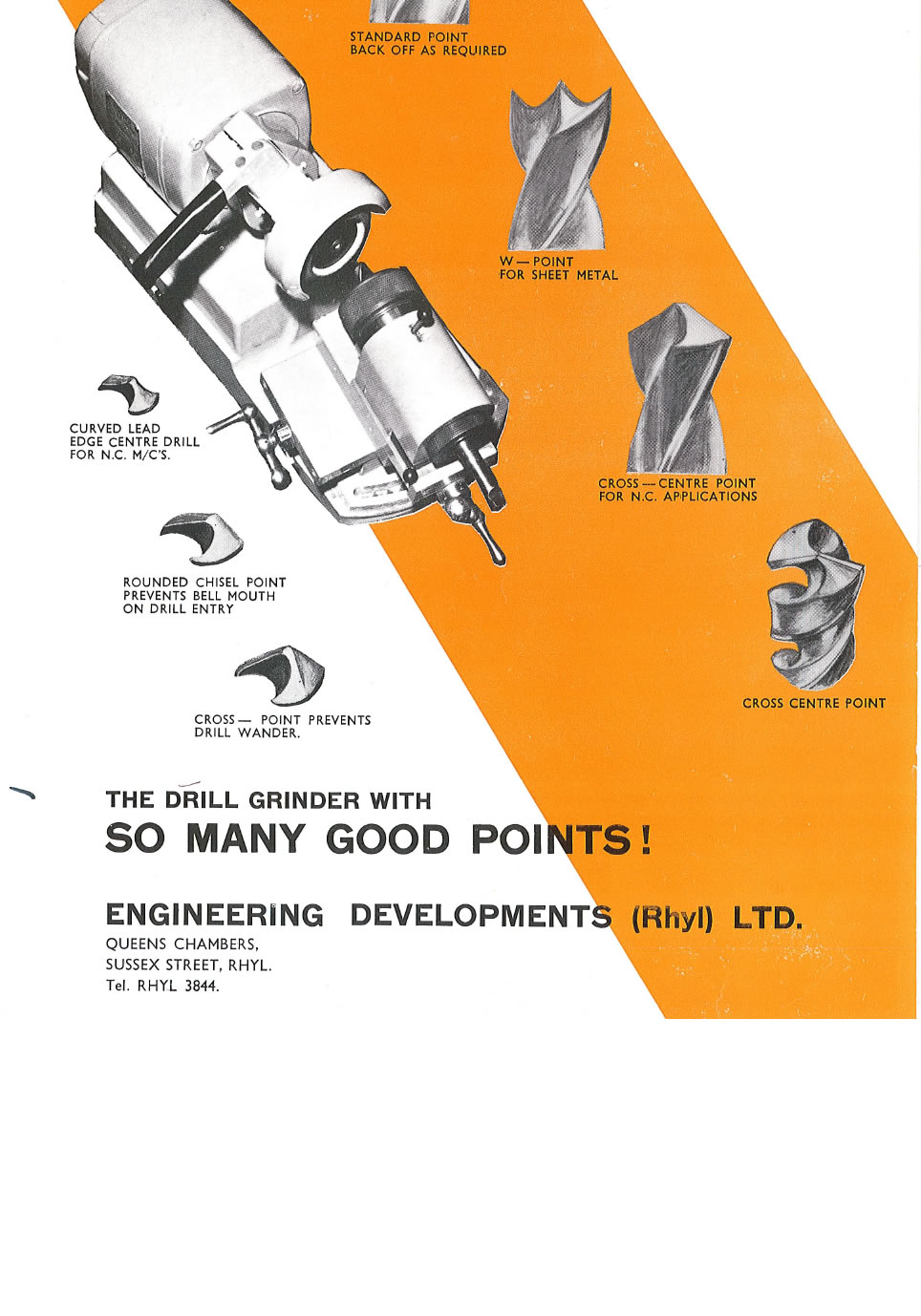

- Viceroy-TDS29-sharpedge-brochure1.jpg (193.54 KiB) Viewed 21847 times
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
PDF instruction pages:
- Attachments
-
- Viceroy-TDS29-sharpedge-Setting-Instructions3.pdf
- (35.19 KiB) Downloaded 1266 times
-
- Viceroy-TDS29-sharpedge-Setting-Instructions2.pdf
- (92.27 KiB) Downloaded 1275 times
-
- Viceroy-TDS29-sharpedge-Setting-Instructions1.pdf
- (46.48 KiB) Downloaded 1293 times
-
Andy B
- CNC Guru
- Posts: 396
- Joined: Mon 20 Nov , 2006 18:19 pm
- Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
- Location: East Midlands, UK
Parts list for TDS29
Here is the parts list for the TDS29.
- Attachments
-
- TDS29 drillsharpener.pdf
- TDS29 Drill Sharpener parts list
- (1.56 MiB) Downloaded 1476 times
Re: Viceroy TDS29 Sharpedge Documents found
Hi,
Has anyone got dimensions for the setting piece 'G'.
I have one of these sharpeners but no instructions and no setting piece.
I didn't know it existed which has led to some interesting results.
Cheers,
Wilson Logan.
P.S. any info on how to do drill point thinning would be appreciated.
Has anyone got dimensions for the setting piece 'G'.
I have one of these sharpeners but no instructions and no setting piece.
I didn't know it existed which has led to some interesting results.
Cheers,
Wilson Logan.
P.S. any info on how to do drill point thinning would be appreciated.
-
Denford Admin
- Site Admin
- Posts: 3649
- Joined: Fri 10 Feb , 2006 12:40 pm
- Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then. - Location: Sunny Brighouse
- Contact:
Re: Viceroy TDS29 Sharpedge Documents found
The mechanical drawings we scanned are here but not sure if it contains what you need...
- Attachments
-
- DSM-TDS29-Drawings.pdf
- (3.53 MiB) Downloaded 2461 times
