Slot together Chess Pieces

Post by woosleyk » Wed 22 Oct , 2008 16:26 pm

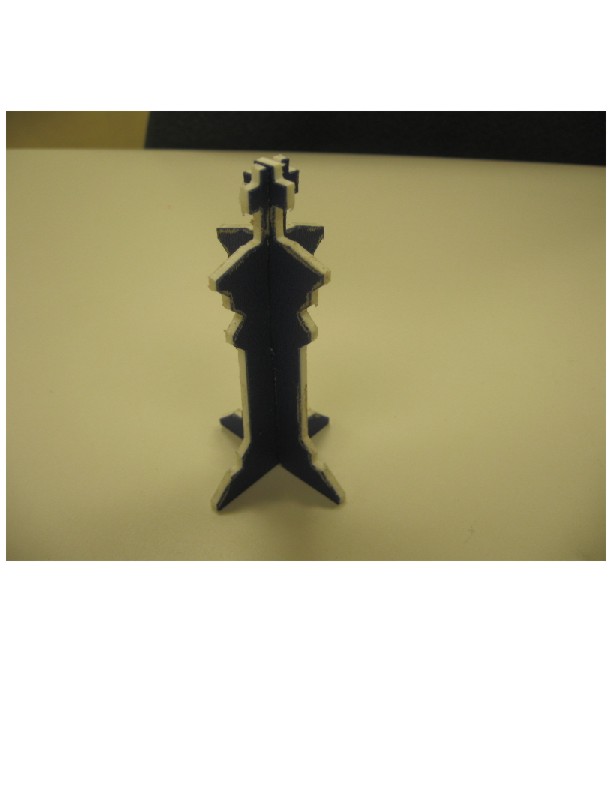

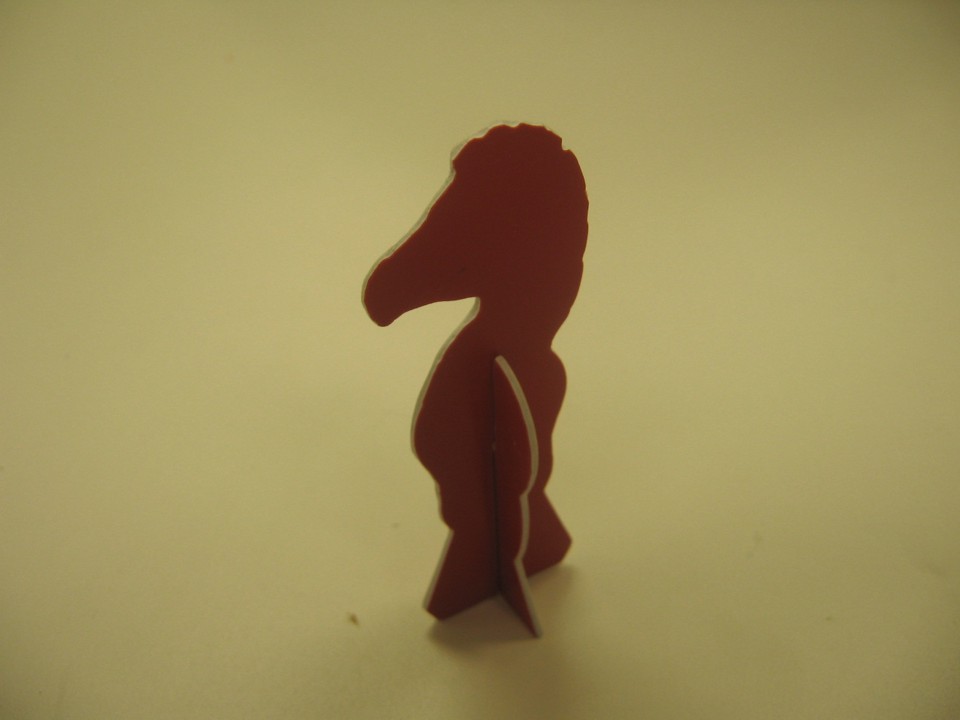

We are teaching the concept of slot together using chess pieces. It is a great way to make students work through the process and understand how to make the slots line up, etc. before going on to more difficult projects.
Attachments
Top
User avatar
bradders
CNC Guru
CNC Guru
Posts: 1251
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:
Contact bradders

Post by bradders » Thu 23 Oct , 2008 7:43 am

Nice work, are you using a Laser or Router ?
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Thu 23 Oct , 2008 9:20 am

As always, its nice to see what you're making with our machines :)

Another slot together design:
viewtopic.php?t=1820
Top
woosleyk
Posts: 4
Joined: Mon 20 Oct , 2008 8:58 am
Location: Billings, Montana

Post by woosleyk » Thu 23 Oct , 2008 15:48 pm

Using a router. We have a Versa laser, but have not tried it with the students yet.
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Thu 23 Oct , 2008 15:56 pm

Some clear acrylic would make great looking chess pieces on the Laser 8)
Bear in mind that the laser has a small cutting width which you will need to offset when creating your designs (just like a tool offset)

See this post for more info
viewtopic.php?p=5563#5563
