Just a small welding project for my TDS lathe. The lathe came with a splash panel that was hung off the brackets for the taper attachment. For a number of reasons, I decided that this was unsatisfactory. This included not having a convenient shelf to place items.
I made a frame for the aluminum panel. The panel is held on with wing nuts. This is so I can remove the panel easily to allow me to swap cross slides. I have a Tee slot cross slide as well as a standard one.
The frame includes a shelf for handy tool stowage. The shelf intentionally slopes to prevent any chance of items vibrating off the shelf.
The frame is bolted to the base.
Viceroy TDS 1/1 G.B - Splash Guard and shelf
Moderators: Martin, Steve, Mr Magoo
-
dazz
- CNC Expert
- Posts: 246
- Joined: Sat 19 Aug , 2006 11:31 am
- Hardware/Software: Viceroy TDS 1/1GB lathe, Imperial, stripped down and rebuilt.
Viceroy Taper/Tracer attachment, Shop made cross slide tracer attachment, VSD. - Location: New Zealand
Viceroy TDS 1/1 G.B - Splash Guard and shelf
- Attachments
-

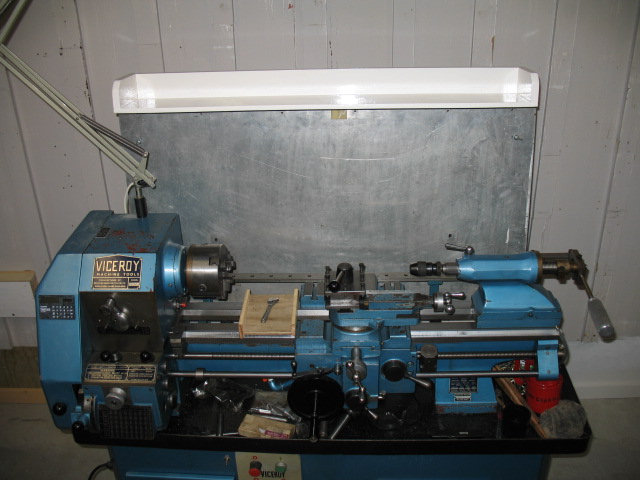

- Front view of the new splash guard and shelf.
- IMG_1438.JPG (95.63 KiB) Viewed 3636 times
-

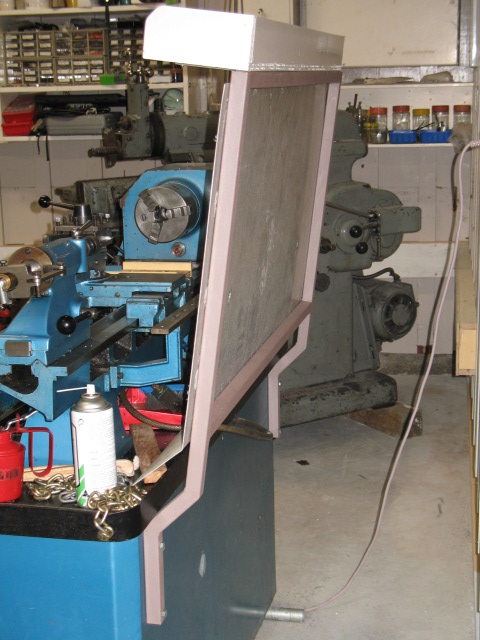

- The shelf slopes to keep items on the shelf.
