Aluminum Machining with the Router 2600 PRO

Post by boots » Fri 12 Sep , 2008 17:08 pm

East Cobb Middle School
Marietta, Georgia, USA

Router 2600 PRO
VR Milling v5
QuickCAM 2D Design

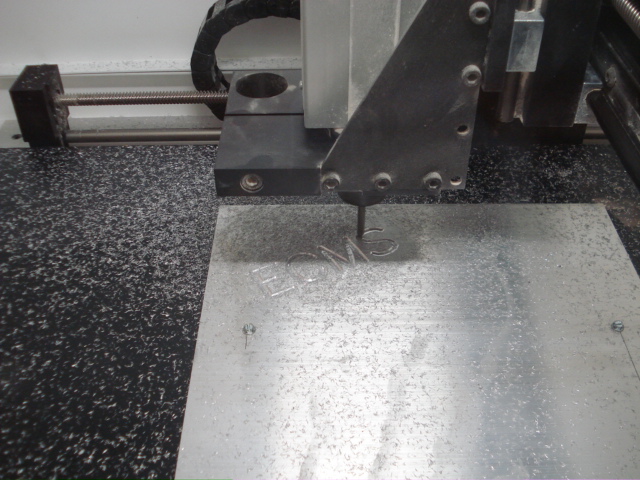

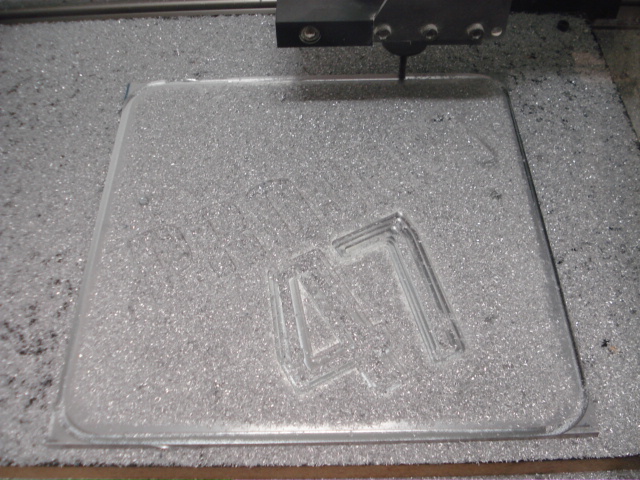

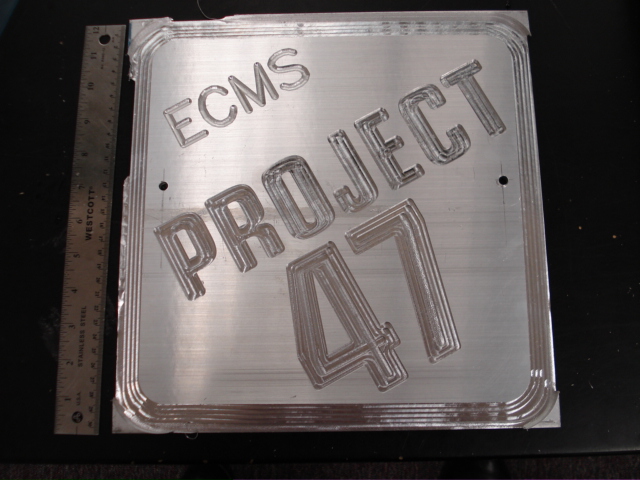

Here are photos of the Router 2600 Pro machining aluminum.

The cutter is a Niagara #85352 Solid Carbide – TiALN Coating
2-flute – SE – Center Cut – 30 degree Helix.
List #C230
The 30 degree helix cutter leaves a very sharp clean edge.

The best cut and finish was achieved with a feed rate of 8 IPM (inches per minute) and a Step down of 15% at a spindle speed of 18.000rpm.
.
Attachments
Top
User avatar
boots
CNC Expert
CNC Expert
Posts: 220
Joined: Tue 16 Jan , 2007 21:22 pm

Post by boots » Fri 12 Sep , 2008 17:10 pm

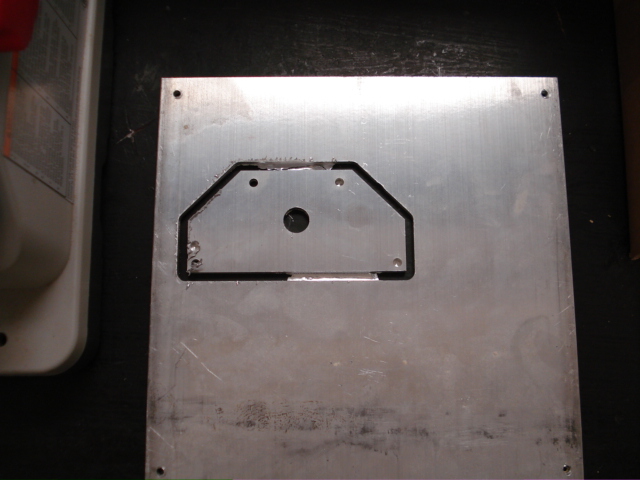

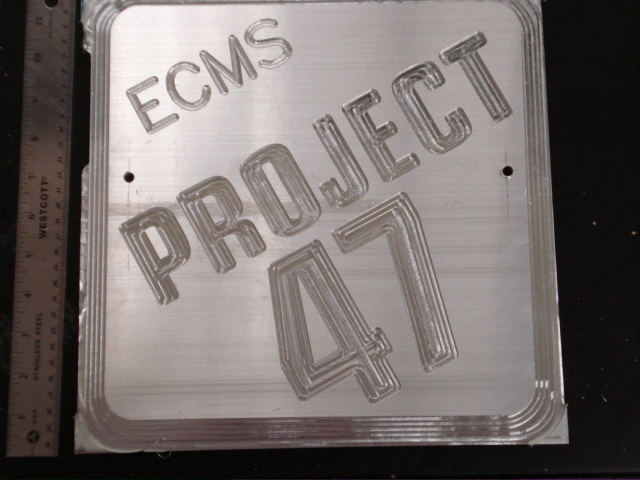

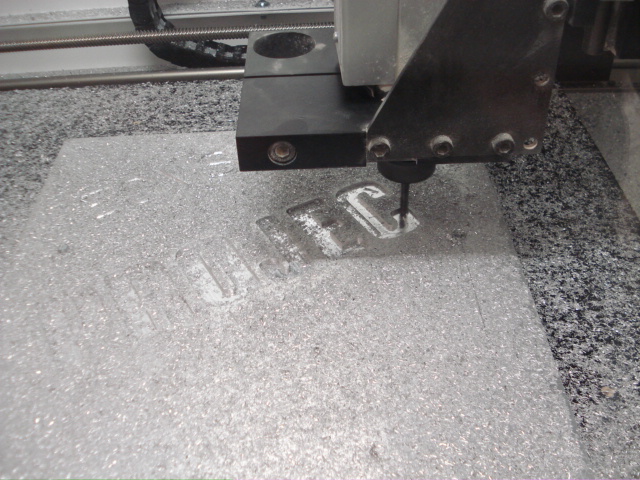

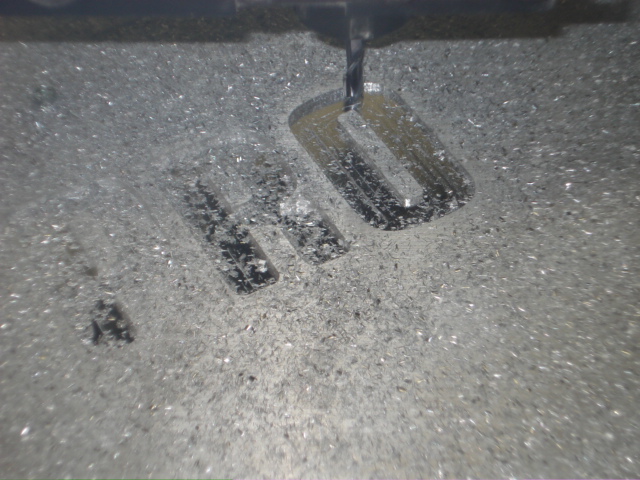

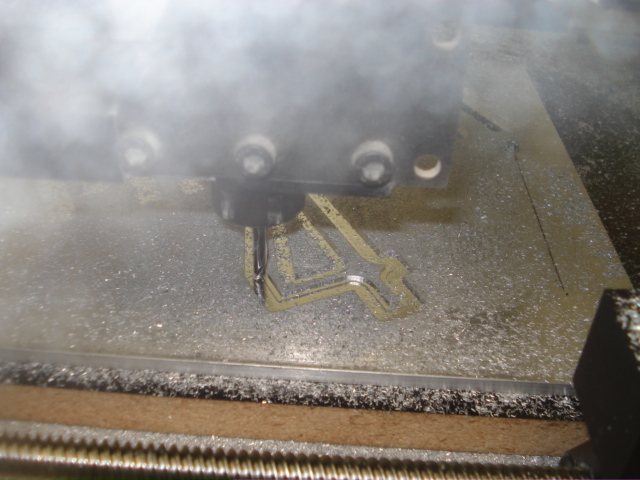

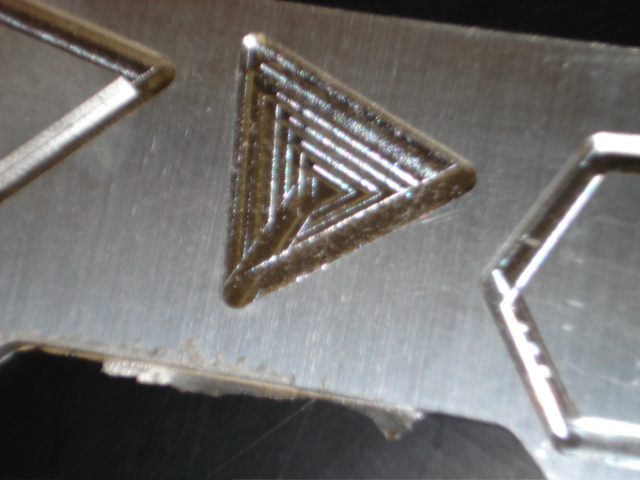

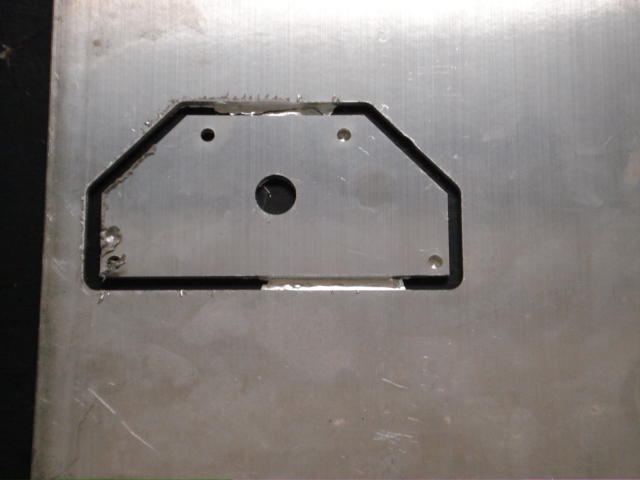

More Photes
Attachments
Top
User avatar
boots
CNC Expert
CNC Expert
Posts: 220
Joined: Tue 16 Jan , 2007 21:22 pm

Post by boots » Fri 12 Sep , 2008 17:11 pm

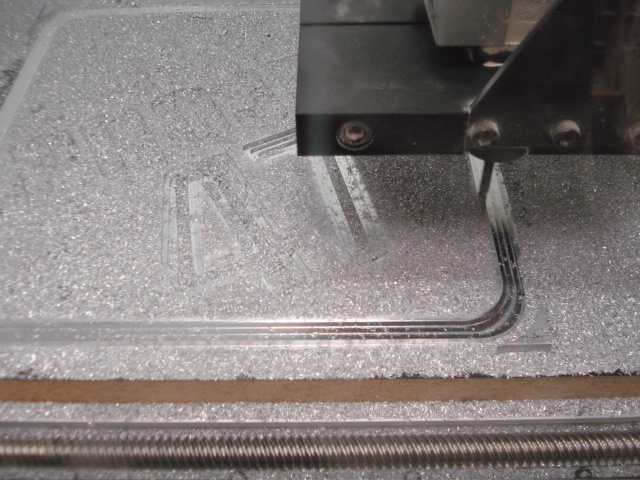

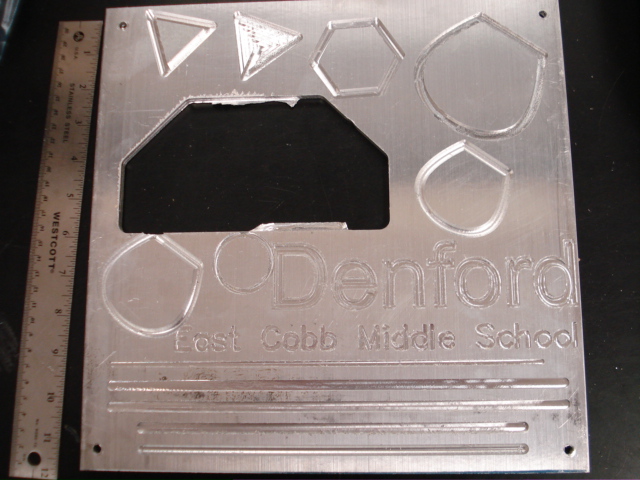

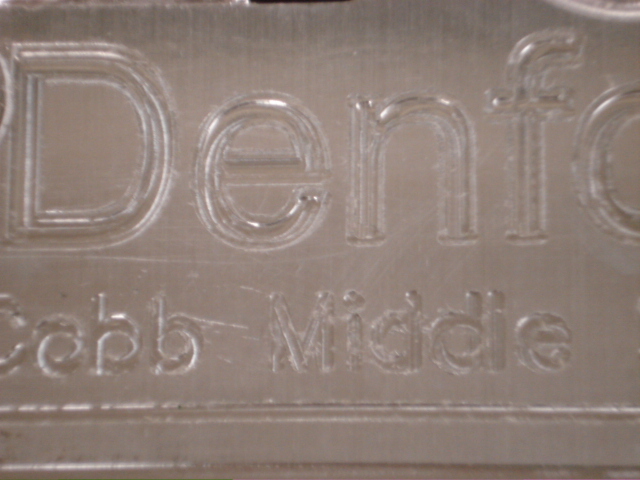

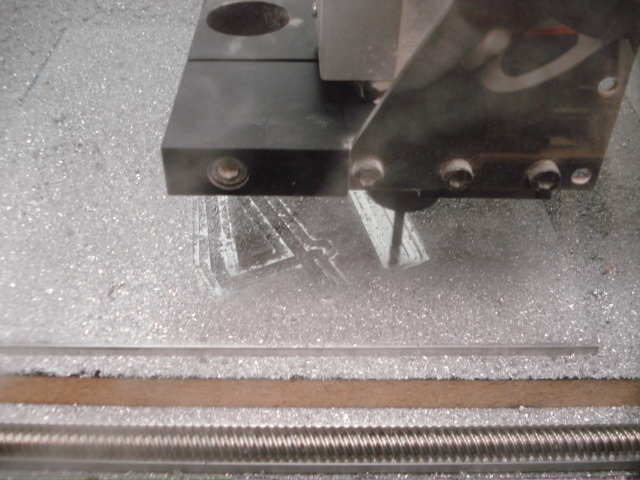

and the last 2 photos
Attachments
Top
prchalc
Posts: 7
Joined: Wed 05 Nov , 2008 12:30 pm

I was told to contact Steve Oddy.

Post by prchalc » Thu 08 Jan , 2009 17:01 pm

Can anyone help me contact Steve Oddy and give me some project ideas?
Jillian Burgan
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Fri 09 Jan , 2009 9:47 am

email
soddy (at } denford.co.uk
Top
User avatar
Steve
CNC Guru
CNC Guru
Posts: 1451
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Post by Steve » Fri 09 Jan , 2009 10:30 am

Hi,

Have you looked at this section on the website?

What type of projects are you looking to do?

Steve
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Fri 09 Jan , 2009 10:32 am

By the way - I'm impressed by the finish you got in aluminium from a Router !
Top
prchalc
Posts: 7
Joined: Wed 05 Nov , 2008 12:30 pm

Projects

Post by prchalc » Fri 09 Jan , 2009 16:39 pm

I'm looking to make something that can be sold to the general public in a school sale to raise money.
Jillian Burgan
Top
