RS232 cable

jaycnc · Post by **jaycnc** » Wed 12 Aug , 2009 22:55 pm

Has anyone got the above to fit a cyclone and Triac please or know where i can get them already made or if not then the part numbers so i can get them from RS and make them please???
If i have to make them has anyone got the diagram also??

thanks
jaycnc

bradders · Post by **bradders** » Thu 13 Aug , 2009 6:49 am

Sorry we are out of stock of those cables as we now use USB cables. Check this link out for the DENFORD MACHINE LINK CABLE

viewtopic.php?f=4&t=765&p=7739&hilit=+link#p7739

Lone_Ranger · Post by **Lone_Ranger** » Fri 14 Aug , 2009 11:20 am

jaycnc wrote:Has anyone got the above to fit a cyclone and Triac please or know where i can get them already made or if not then the part numbers so i can get them from RS and make them please???
If i have to make them has anyone got the diagram also??

thanks
jaycnc

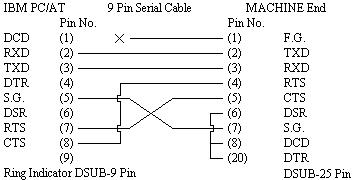

Here is the diagram of pin connections that I use for my RS232 cable, it is used on Denford Cyclone lathes with Fanuc OTB and OTC controls, also the same cable is used on a Bridgeport VMC with Fanuc OM - Mate control and I have no problems whatsoever using it with a USB to Serial adapter to an IBM Laptop and an IBM PC

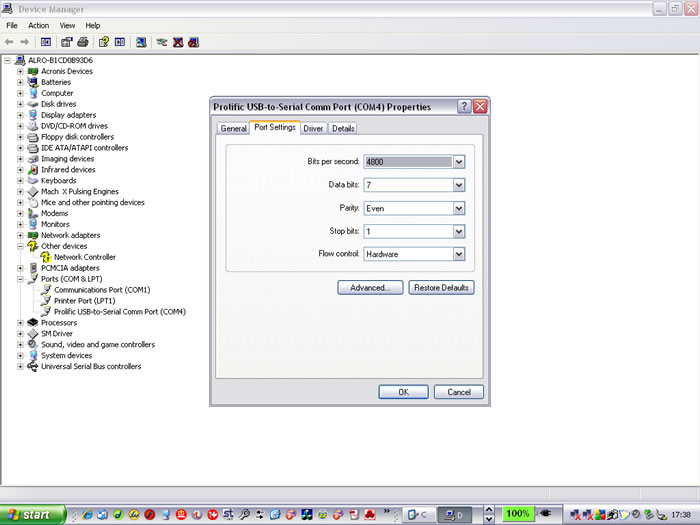

All settings on the DNC and the PC Comm Port should be set to the "Hardware" settings for best results!!
Everything shown below works on all Fanuc O (T or M) controls I have ever used.

jaycnc · Post by **jaycnc** » Sun 23 Aug , 2009 22:07 pm

Great stuff many thanks guys ill give this a go.

Will this run a Triac also by any chance?

Will this be ok to use on a laptop with XP or will i need windows 98 or another to upload and download programs?

How would i go about uploading and downloading programs to and from the mahcine also?

Think this just about covers my questions for now

cheers
j

Post by **Denford Admin** » Mon 24 Aug , 2009 13:52 pm

Others on here have used the industrial text editor to upload programs to their machine.
By the way, we're guessing the cable you are looking for is to upload programs (DNC) to a Fanuc control, not the one to connect and control a denford type machine ?

Some useful links on RS232 software:

Various RS232 DNC software discussed here:
viewtopic.php?f=4&t=1040

modern DNC software from here https://www.cadem.com for FREE:
viewtopic.php?f=4&t=2043&p=7154

Industrial Text Editor software, DOS, free and does RS232 comms
viewtopic.php?t=256

Denford Industrial Text Editor Manual:
viewtopic.php?f=15&t=2056

jaycnc · Post by **jaycnc** » Mon 24 Aug , 2009 23:45 pm

Denford Admin wrote:Others on here have used the industrial text editor to upload programs to their machine.
By the way, we're guessing the cable you are looking for is to upload programs (DNC) to a Fanuc control, not the one to connect and control a denford type machine ?

Some useful links on RS232 software:

Various RS232 DNC software discussed here:
viewtopic.php?f=4&t=1040

modern DNC software from here https://www.cadem.com for FREE:
viewtopic.php?f=4&t=2043&p=7154

Industrial Text Editor software, DOS, free and does RS232 comms
viewtopic.php?t=256

Denford Industrial Text Editor Manual:
viewtopic.php?f=15&t=2056

Yes,one machine is a triac on fanuc OM and the other is the cyclone on Fanuc OTb.
Are there any editing programs about for use on windows XP or Vista by any chance?

Lone_Ranger · Post by **Lone_Ranger** » Tue 25 Aug , 2009 0:28 am

jaycnc wrote:
Denford Admin wrote:Others on here have used the industrial text editor to upload programs to their machine.
By the way, we're guessing the cable you are looking for is to upload programs (DNC) to a Fanuc control, not the one to connect and control a denford type machine ?

Some useful links on RS232 software:

Various RS232 DNC software discussed here:
viewtopic.php?f=4&t=1040

modern DNC software from here https://www.cadem.com for FREE:
viewtopic.php?f=4&t=2043&p=7154

Industrial Text Editor software, DOS, free and does RS232 comms
viewtopic.php?t=256

Denford Industrial Text Editor Manual:
viewtopic.php?f=15&t=2056
Yes,one machine is a triac on fanuc OM and the other is the cyclone on Fanuc OTb.
Are there any editing programs about for use on windows XP or Vista by any chance?

You can edit your Code in whatever DNC software you use for uploading/downloading, also Notepad, Wordpad or even MS Word, the code is output from whatever CadCAM software you are using as a simple .TXT file, usually a .NC extension.

Will this be ok to use on a laptop with XP or will i need windows 98 or another to upload and download programs?

How would i go about uploading and downloading programs to and from the mahcine also?

My Laptop is running XP Pro Service Pack 3, I don`t have any problems. Check the links in previous post for DNC software.

Regards
Rob
.
