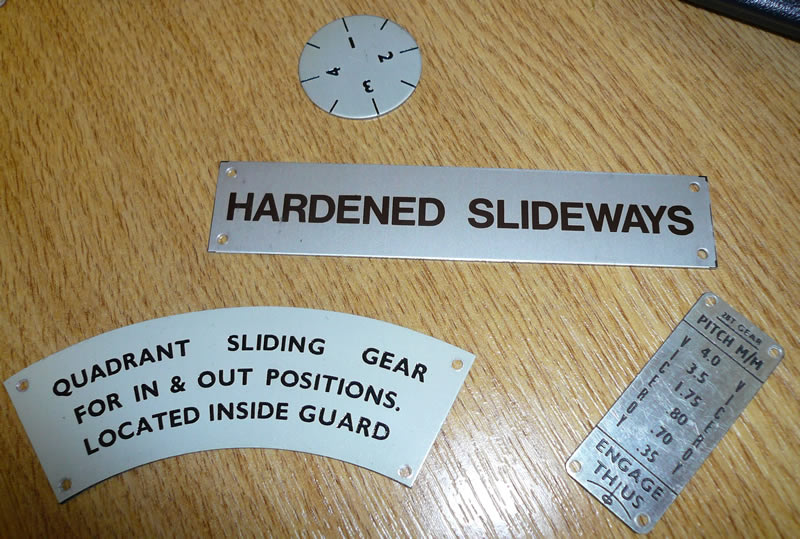

I have been asked about machine plates with gear info on, for a Viceroy lathe - I can't find any like that, but have found a few of these if anyone is interested:
Apart from the machine plates I found previously:
I found a few of these as well:
Apart from the machine plates I found previously:
I found a few of these as well:
- Attachments
-
- viceroy-plates.jpg (111.62 KiB) Viewed 3994 times
-
Andy B
- CNC Guru
- Posts: 396
- Joined: Mon 20 Nov , 2006 18:19 pm
- Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
- Location: East Midlands, UK
Name that plate....
The round one and the small rectangular one on the right are for the threadcutting dial indicator. One of them is probably to drawing CH246 (can't tell which from the drawing list)
The curved one is appliable to most manual lathes with a threadcutting gearbox, but I have only seen it fitted in pictures of the 'Synchro' models.
'Hardened Slideways' probably drawing CH224
Andy
The curved one is appliable to most manual lathes with a threadcutting gearbox, but I have only seen it fitted in pictures of the 'Synchro' models.
'Hardened Slideways' probably drawing CH224
Andy
