QuickCAM 2D CNC program output is broken up (dotted lines)

Post by Denford Admin » Tue 16 Jan , 2007 15:45 pm

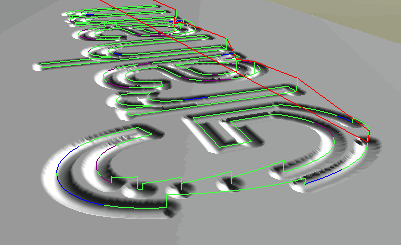

The cnc program being output by QuickCAM 2D is broken up - see example screenshot:
Attachments
Last edited by Denford Admin on Tue 16 Jan , 2007 15:48 pm, edited 1 time in total.
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Tue 16 Jan , 2007 15:45 pm

This is the same problem as the arcs being generated in the wrong plane on certain processors:
viewtopic.php?t=620

is fixed by using QuickCAM 2D v1.4 or by turning off the menu option: Generate -> Convert Output To Arcs
