Create Lego skeletons with image contouring

Post by Denford Admin » Thu 05 Jul , 2007 16:58 pm

We have been improving the image editing and image contouring in QuickCAM and LaserCAM.
To test it out, we made some lego skeleton men from a small jpg image...
Attachments

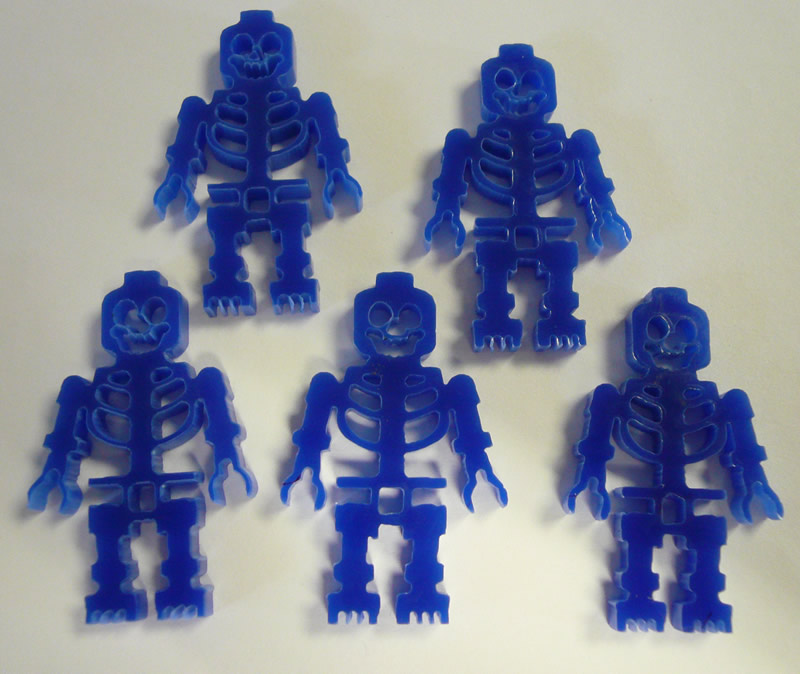

The skeletons - laser cut (unfortunately forgot to offset the vectors to compensate for laser beam width)

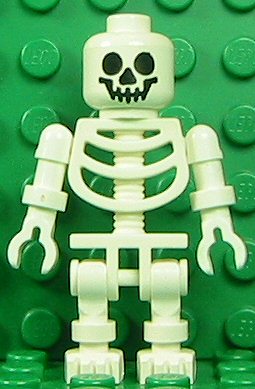

The original image used in LaserCAM 2D. Some cleaning was required, and the "toes" needed added
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Thu 05 Jul , 2007 17:02 pm

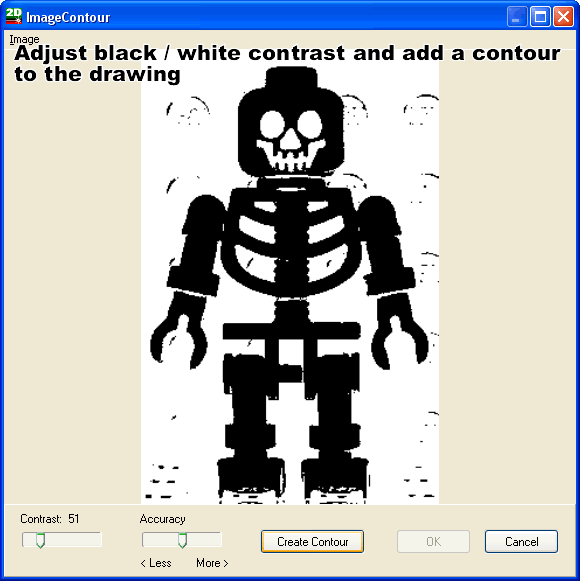

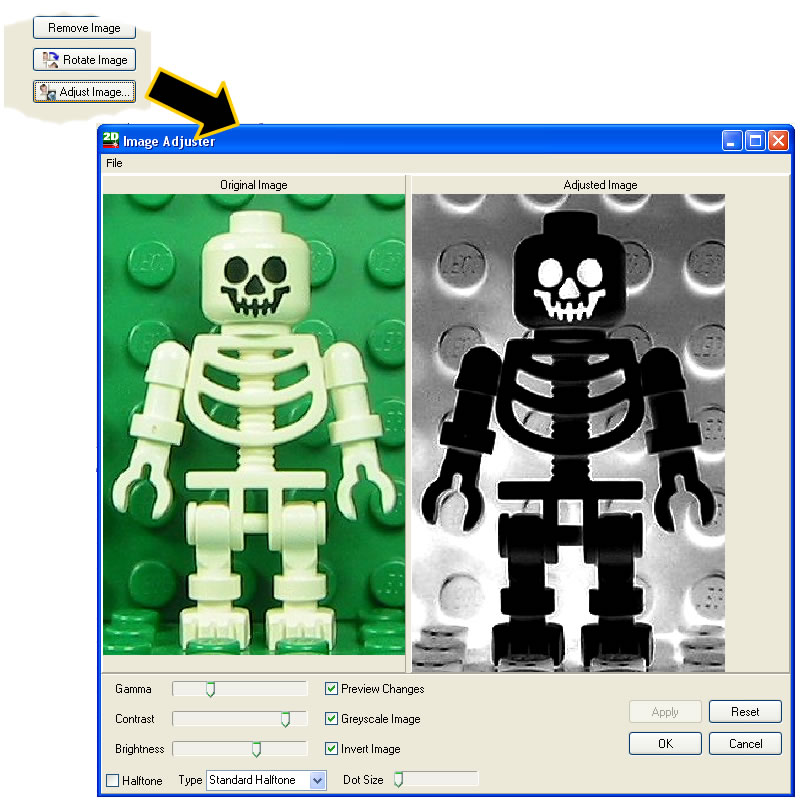

The new contrast / brightness / invert image features come in very handy when lasering or cutting out images - it makes it easier to adjust the image so that only the bit you are interested in remains.
Top
boy1
Posts: 3
Joined: Tue 27 Nov , 2007 12:25 pm

Post by boy1 » Tue 27 Nov , 2007 13:42 pm

Hi, that looks really good.

One of the schools I Technician at has just got a LASER cutter and I was wondering if you could describe the process for the above in a bit more detail, as I'd really like to do something like that for the students doing their GCSE's. I've only had a half day intro on the laser cutter and a few hours actually using it to cut out simple shapes and letters/numbers.

thanks,
Ian.
Top
User avatar
Denford Admin
Site Admin
Posts: 3649
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:
Contact Denford Admin

Post by Denford Admin » Tue 27 Nov , 2007 16:48 pm

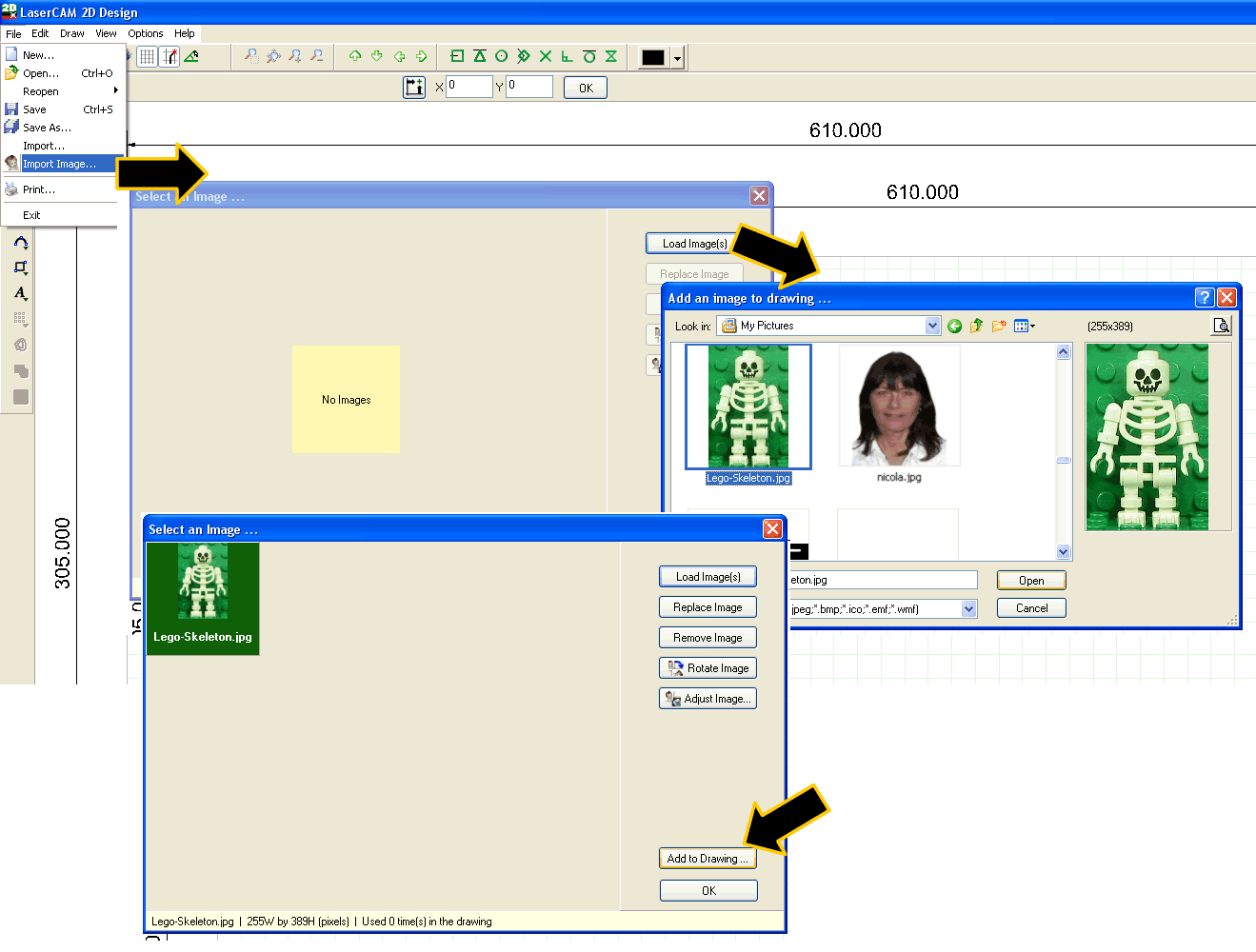

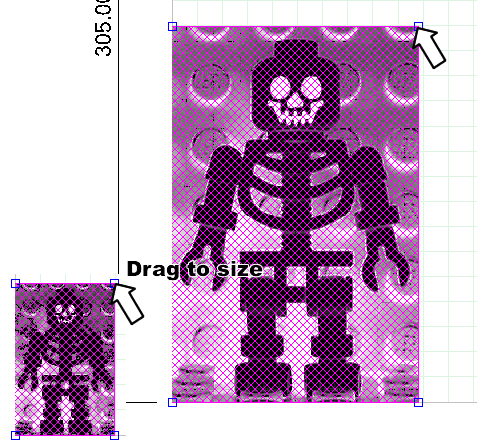

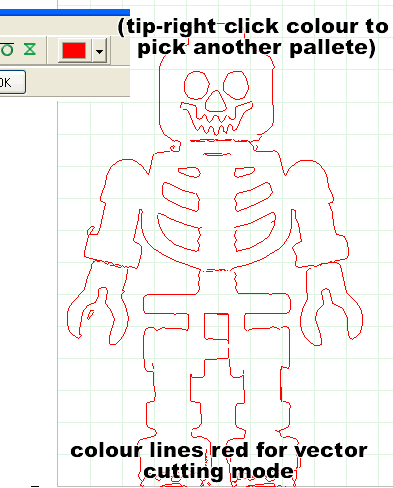

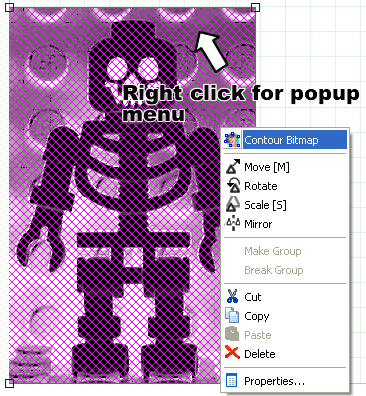

Hopefully these pictures will speak a 1000 words.... (hopefully they will come out in the right order :oops: )
Attachments
Top
boy1
Posts: 3
Joined: Tue 27 Nov , 2007 12:25 pm

Post by boy1 » Fri 30 Nov , 2007 9:55 am

Many thanks,

I'll try and have a go today. :D

Ian.
Top
boy1
Posts: 3
Joined: Tue 27 Nov , 2007 12:25 pm

Post by boy1 » Fri 30 Nov , 2007 15:58 pm

well I gave it a try, and it worked out ok on a couple of tests. :D

Time to see if any of the students can use it for any of their projects.

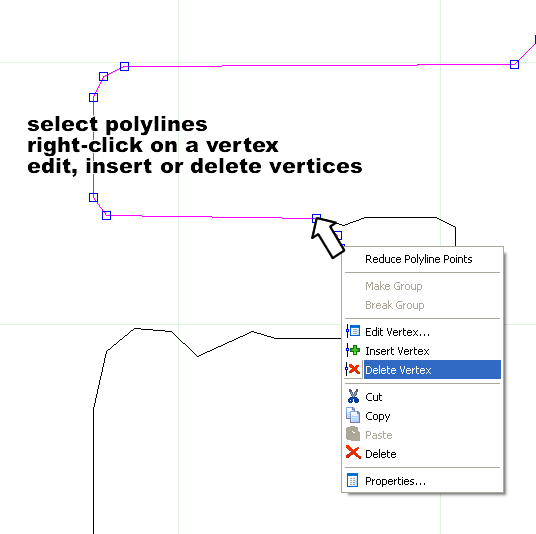

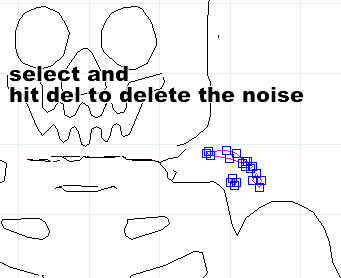

I guess the more time you spend tidying up the contour the
better the results.

Thanks again,

Ian.
