Hi all, I don't know if I'm missing something but my machine won't Spindle orientate or index ie M19,M20,M21,M22,M23 is there something I need to do first? it doesn't error just does nothing when I try to use the code.

thanks Russ

FAUNC OTA SERIAL#CY03079B

Hi all, I'm looking to install a pneumatic chuck on my Cyclone, is there any drawings for the electrical and pneumatic setup?

thanks Russ

sorry Martin, the switch was registering when I pressed it in the diagnostics but not with the dog, I don't know how it had moved but it must have! she's running again now thank you very much for your help it is greatly appreciated.

thanks Martin, the control is seeing the switch in the diagnostics so would you say I have an encoder problem? I'm assuming that the normal zero return method is that the axis moves until is see's the reference switch then the next encoder mark is the zero return? What parameters are ignored while h...

hi Martin, tried that just runs up to the hard overtravel switch. It moves quickly up to reference switch but doesn't decelerate like it normally does when it gets close to the reference switch. I've moved the dog and it doesn't seem to be taking any notice of the switch at all, once the control rea...

sorry forgot to say its a Fanuc 0TA

Good morning all, I've turned on my Cyclone this morning and she won't zero return in the x axis! I get error 510 (stroke limit) I've checked the reference switch that seems fine, does anyone know a way to check that the control is seeing that the switch is being made?

Hi all, I have miss programmed and caused my RH80-6 turret to jam, it will move off the hirth coupling but won't spin to the next programmed station, are there drawings available so I can see how to fix it?

thanks Russ

Thank you very much Martin, I'll put them in later and see if it fixes the speed issue

If you could have a look this afternoon that would be greatly appreciated.

is there any chance of a copy of the original parameters for my machine? # is CY 03079B

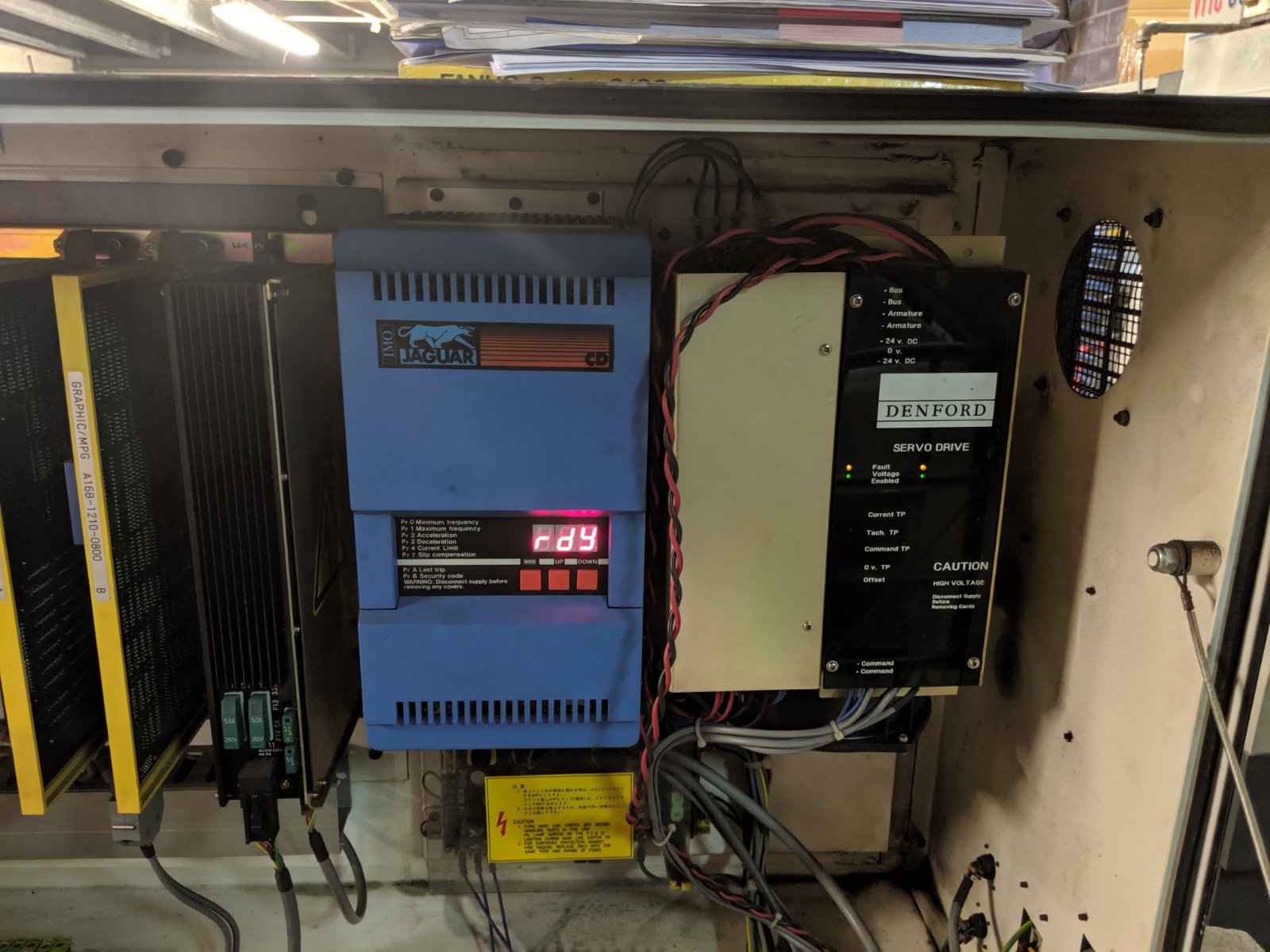

here is all the markings I can see

could it have anything to do with tuning this drive? I dont have any documentation on it

hi Martin, just tried that its not changed the speed problem

Good morning all, the diagnostic changing problem was down to a dodgy program protect key switch, so only the spindle problem remaining! any ideas?

am I correct in saying that I need to set diagnostic 451.0 to 1 to set my machine for the six station Baruffaldi-TOE80 turret? if so how? I've tried to setting PWE to 1 in MDI as I did to input the main parameters but it doesn't let me make the change

Hi, we have just got a Cyclone (CY03079B) when it arrived to us it had already lost its parameters, I've typed them in from the sticky parameters post and that has made the '404 Servo Alarm (VRDY ON)' go and I can now zero return and start the spindle. my problems are that : 1 the spindle doesn't ru...
