ASRS drive

Post by umair » Thu 21 Feb , 2013 3:32 am

i have a problem with ASRS drives, it does not get hommed in the Z-axes. and in normal type of motion it does not moves in the X and Y-axes. Need help regarding the axes motors. and how can i enable the drives.

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1229
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: ASRS drive

Post by Steve » Thu 21 Feb , 2013 10:11 am

Respected Sir,
I am a student of NUST(National universty of Science and technology), Pakistan.. Sir our ASRS is having a problem, it is not getting home correctly.. plus there is this error "Asynchronous axis error" and some times it get homed correctly... means the software behaviour is irregular..
if u can help me, that would be grate full.. thanks

Regards
Umair

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1229
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: ASRS drive

Post by Steve » Thu 21 Feb , 2013 10:12 am

Hi,
I am a student at National University Of Science and Technology. We have got CIM installed by Denford.The ASRS of CIM of serial number'AsRS E00615' is not working.
We are facing problem in troubleshooting of Asrs and folowing errors arise during its usage,
1.Whenever we 'HOME' in X and Y directions,it get homed,but when we home it in Z direction it some time donot Home at all and some time it get free motioned in Z direction and we have to push the emergency button to stop it reaching its maximum limits in -ve Z direction.
2.After reaching its maximum limit in -ve Z direction it no longer home in X and Y direction and it commonly give error "Drives not enabled".
3.Some time it gives the error "Asynchronous axis error".
4.In teach manu it does not move in any axis that is X y and Z axis.
Please guide us in troubleshooting these errors.
regards,
zaheer ud din
student
National University Of Science and Technology Islamabad
Pakistan.

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1229
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: ASRS drive

Post by Steve » Thu 21 Feb , 2013 10:14 am

Sir i have a pic of the motor and electronics controlling it, but i didn't find a way to post pictures in this forum. plus how can i enable the drives..

Regards

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1229
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: ASRS drive

Post by Steve » Thu 21 Feb , 2013 10:18 am

Hi,

It sounds like you have a problem with the Z axis motor Drive or the cables in between.

Once any one of the drives trip then the other axes will also be knocked off as the unit goes into E-Stop.

I would check the motor connections are all tight and the cables to the motor are not damaged.

I would also check that the Z axis is mechanically free.

Also look at the axis drive when the drive trips there will be some indication on the drive as to the fault either by a flashing light sequence or alarm display. I am not sure what motors you have fitted but photos here would help.

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1229
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: ASRS drive

Post by Steve » Thu 21 Feb , 2013 10:20 am

See the following post on adding pictures to the forum.

viewtopic.php?f=17&t=823

User avatar
Denford Admin
Site Admin
Posts: 3586
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: ASRS drive

Post by Denford Admin » Thu 21 Feb , 2013 10:48 am

There have been various drive types used on the ASRS so photos of the drive + motor + electrical cabinet will be helpful

User avatar
bradders
CNC Guru
CNC Guru
Posts: 1247
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:

Re: ASRS drive

Post by bradders » Thu 21 Feb , 2013 16:14 pm

From PM me, i have not received any answers to the LED Codes below..............

An "Asynchronous axis error" means that the ASRS drives are disabled. Open the ASRS control box and switch on the isolator and wait for the controller to power up. What is the Number / Letter on the Green 7 segment display? and what are the status LEDs on the 3 Baldor Microflex axis drives ?

Axis drive LED codes

GREEN - AC power OK, Drive enabled
RED - AC power OK, Drive not enabled, no errors
RED / GREEN (Alternating) - AC Power not present, no errors
GREEN (Flashing) - Firmware download in progress
RED (Flashing) - An error has occurred. The number of flashes (Followed by a pause) indicates which error has occurred

1 DC bus overload voltage
2 IPM (Integrated power module) trip
3 Overcurrent trip
4 Overspeed trip
5 Feedback trip
6 Motor overload (i squared t) trip
7 Overtemperature trip
8 Drive overload (it) trip
9 Following error trip
10 Error input triggered
11 Phase search error
12 All other errors, including :internal supply error, encode supply error, parameter restore failure

umair
Posts: 13
Joined: Tue 19 Feb , 2013 15:10 pm

Re: ASRS drive

Post by umair » Thu 21 Feb , 2013 16:29 pm

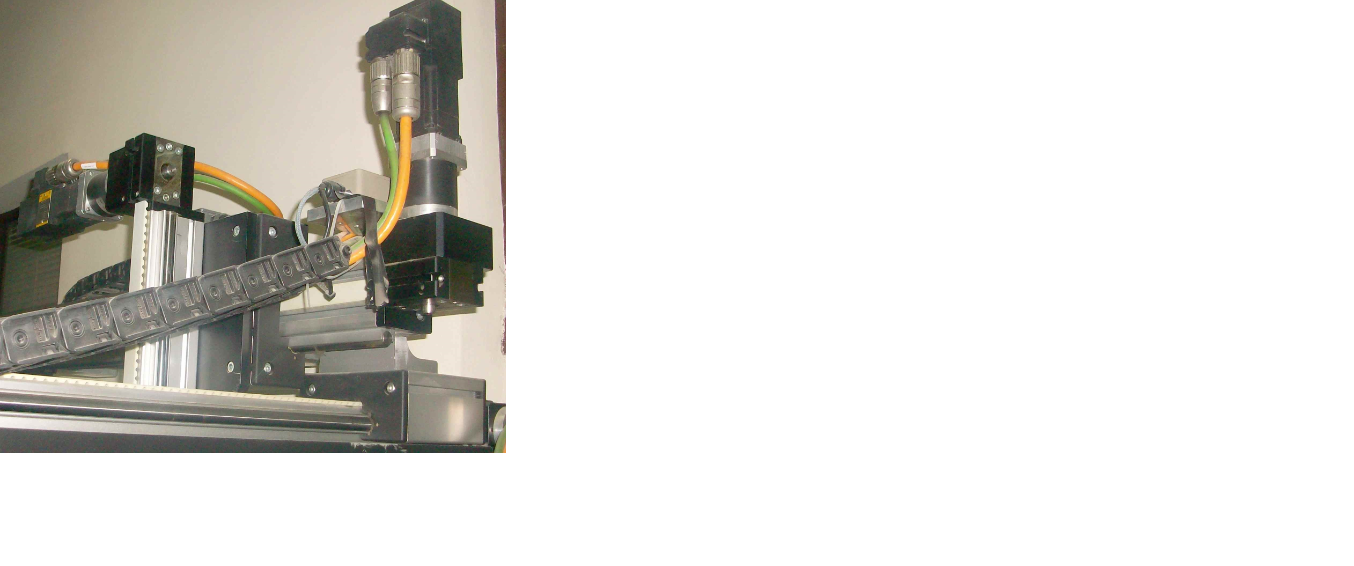

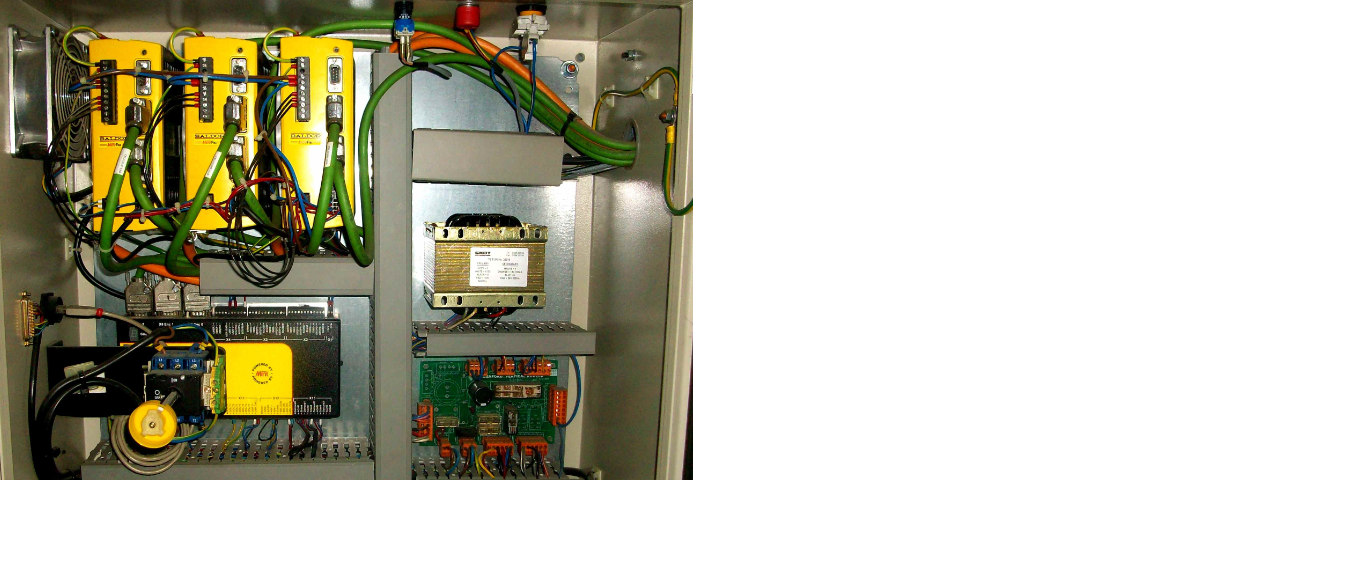

here are some pics of our ASRS control box and the motors..
Attachments

umair
Posts: 13
Joined: Tue 19 Feb , 2013 15:10 pm

Re: ASRS drive

Post by umair » Thu 21 Feb , 2013 16:34 pm

we have not touched the electronics yet and need to know where to start.. no idea about the isolater switch either ...

User avatar
bradders
CNC Guru
CNC Guru
Posts: 1247
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:

Re: ASRS drive

Post by bradders » Thu 21 Feb , 2013 16:35 pm

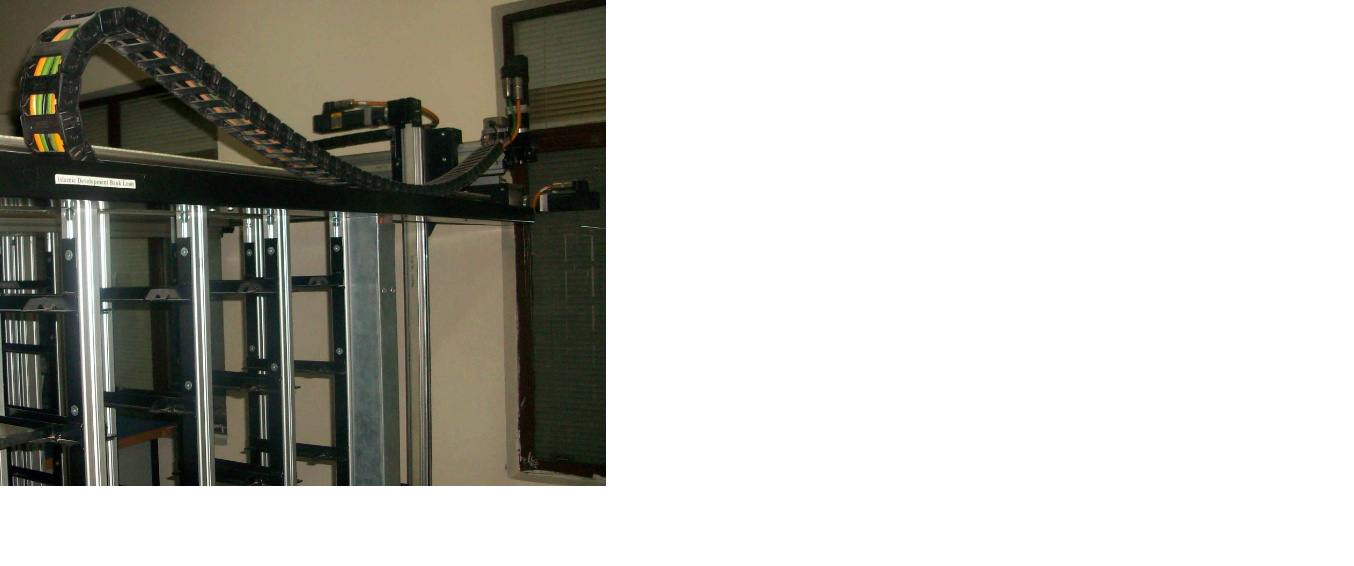

I would get the energy chain that supports the Y axis motor and signal etc cabled repaired or you may get some broken wiring

User avatar
bradders
CNC Guru
CNC Guru
Posts: 1247
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:

Re: ASRS drive

Post by bradders » Thu 21 Feb , 2013 16:50 pm

Turning on the isolator with the door open would be a good start, that's if your health and safety regulations allow you to do so.

Martin
CNC Guru
CNC Guru
Posts: 1605
Joined: Fri 24 Feb , 2006 17:09 pm
Location: Brighouse

Re: ASRS drive

Post by Martin » Thu 21 Feb , 2013 17:44 pm

When you power up what do the LED's on the 3 drives do? (What color & if they flash how many times?)

umair
Posts: 13
Joined: Tue 19 Feb , 2013 15:10 pm

Re: ASRS drive

Post by umair » Thu 21 Feb , 2013 18:23 pm

how do i turn on the isolater, i mean whats the location of the isolator switch... and i will chk the LED response of the drives friday morning(comming day) and then will post the response here..

Martin
CNC Guru
CNC Guru
Posts: 1605
Joined: Fri 24 Feb , 2006 17:09 pm
Location: Brighouse

Re: ASRS drive

Post by Martin » Thu 21 Feb , 2013 23:34 pm

You should be able to turn the isolator circled to the on position with the door open so you can check for errors on the drives.
Attachments

umair
Posts: 13
Joined: Tue 19 Feb , 2013 15:10 pm

Re: ASRS drive

Post by umair » Fri 22 Feb , 2013 6:40 am

Some times the axes motor work correctly. but after a very short time they give the following no of led blinks(red color) means error..
X axes drive= 8 led blinks (drive over load)
Y axes drive= 5 and some times 8 led blinks (feedback trip and drive overload)
z axes drive= some times 6 and some times 8.. (motor over load and drive over load)

8 blinks are most common and most seen high priority target in all axes.. (drive overload)

umair
Posts: 13
Joined: Tue 19 Feb , 2013 15:10 pm

Re: ASRS drive

Post by umair » Fri 22 Feb , 2013 6:50 am

Also if possible can you please provide with any manual for the ASRS and infact for the whole Denford CIM machine. Thanks.

User avatar
Denford Admin
Site Admin
Posts: 3586
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: ASRS drive

Post by Denford Admin » Fri 22 Feb , 2013 10:06 am

Also if possible can you please provide with any manual for the ASRS and infact for the whole Denford CIM machine. Thanks.
Have you viewed the help file on the ASRS software CD-ROM....ASRS.chm ?

User avatar
Denford Admin
Site Admin
Posts: 3586
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: ASRS drive

Post by Denford Admin » Fri 22 Feb , 2013 10:15 am


User avatar
Denford Admin
Site Admin
Posts: 3586
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: ASRS drive

Post by Denford Admin » Fri 22 Feb , 2013 10:31 am
