MRP/0850 Relay Distribution Board

Post by Steve » Tue 08 Jan , 2013 12:04 pm

The Universal Relay board is used in a large range of machines.

There have been 3 different versions of the board all of which are interchangable.

Revision A had some tracks thickened up to protect them if incorrect fuses were fitted.

Revision B has a small change to the E-stop circuit allowing the relay to be controlled by an output of the NextMove to comply with changes in the machinerary directive

Revision C is about to be implemented and currently has not been released. This board has the E-stop contact for the motor supply moved into the AC line rather than the DC path. This should prevent arcing of the E-Stop contact.

I am attaching Photos of the board with fuses and relays identified clearly as well as a schematic for the board.
Attachments

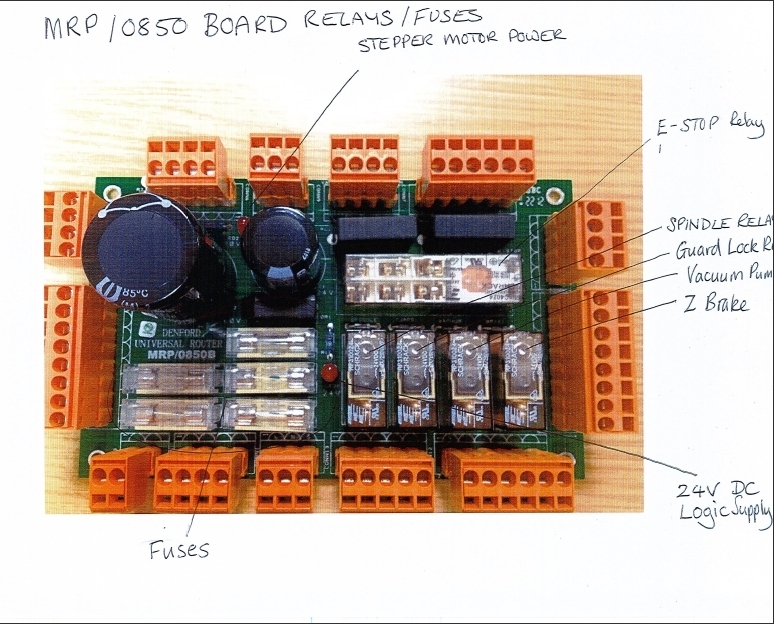

MRP-0850 Board Layout.jpg
MRP-0850 Board Layout.jpg (381.65 KiB) Viewed 3822 times

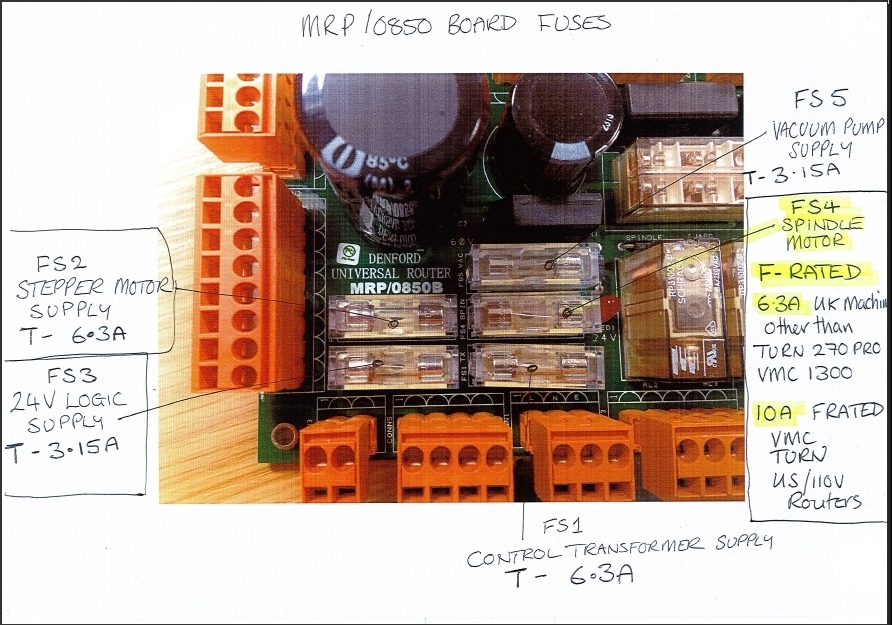

MRP-0850 Fuses.jpg
MRP-0850 Fuses.jpg (441.2 KiB) Viewed 3822 times

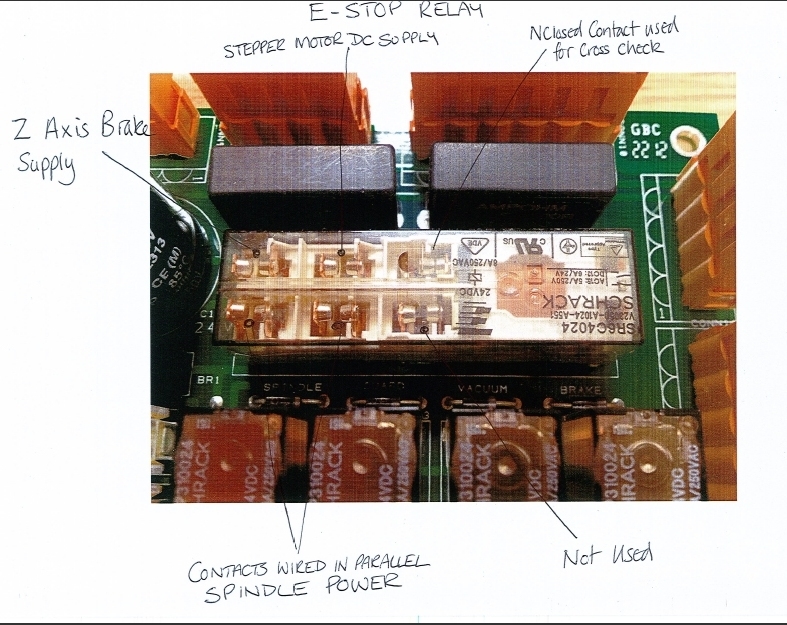

E-STOP RELAY CONTACTS.jpg
E-STOP RELAY CONTACTS.jpg (368.58 KiB) Viewed 3822 times
Schematic Design_ MRP-0850C.pdf
(28.84 KiB) Downloaded 589 times
Schematic Design_ MRP-0850B.pdf
(28.81 KiB) Downloaded 916 times
MRP-0850 Board Layout.pdf
(1.32 MiB) Downloaded 499 times
MRP-0850 ESTOP relay contacts.pdf
(1.29 MiB) Downloaded 509 times
