Micromill 2000 wiring diagram
I have a Micromill 2000 and I need wiring diagram for ON key and the OFF button (with light). All of the wiring diagrams I have found on this forum do not have ON key and the OFF button (with light) setup, they all have the ON key, but the OFF is the E-Stop button. The off button on my machine would light up when you turn it on, and shut off when you push it in to shut the machine off. Any help would be great
- Attachments
-

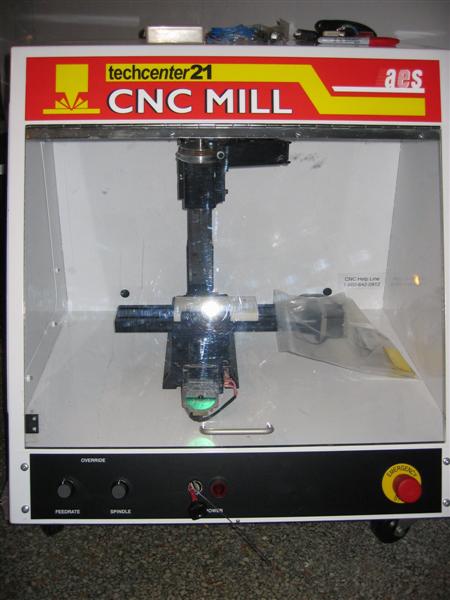

- Front of my machine
- DENFORD (18) (Medium).JPG (43.08 KiB) Viewed 5087 times
-
bradders
- CNC Guru
- Posts: 1251
- Joined: Mon 13 Feb , 2006 12:35 pm
- Location: Brighouse, England
- Contact:
Re: Micromill 2000 wiring diagram
I hope this drawing is of help
- Attachments
-

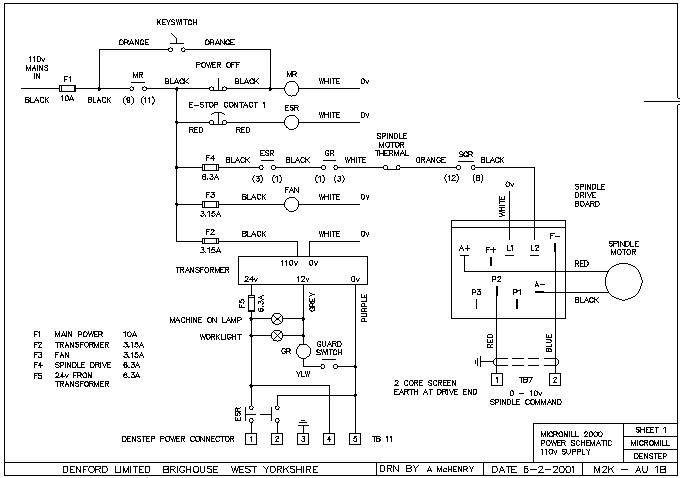

- Micromill Power Schematic US 110V.JPG (54.37 KiB) Viewed 5081 times
-
illmakemyown
- Posts: 31
- Joined: Tue 18 Mar , 2008 4:23 am
- Location: Florida USA
Re: Micromill 2000 wiring diagram
I think this one will help a little, but is there a drawing for how they are connected to the relays. Thanks
-
bradders
- CNC Guru
- Posts: 1251
- Joined: Mon 13 Feb , 2006 12:35 pm
- Location: Brighouse, England
- Contact:
Re: Micromill 2000 wiring diagram
Hope this one helps
- Attachments
-

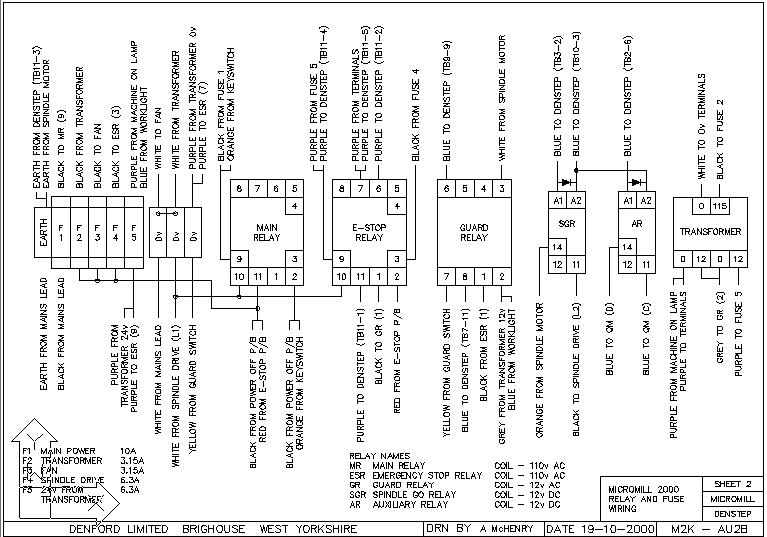

- Relay and Fuse wiring.JPG (98.18 KiB) Viewed 5076 times
