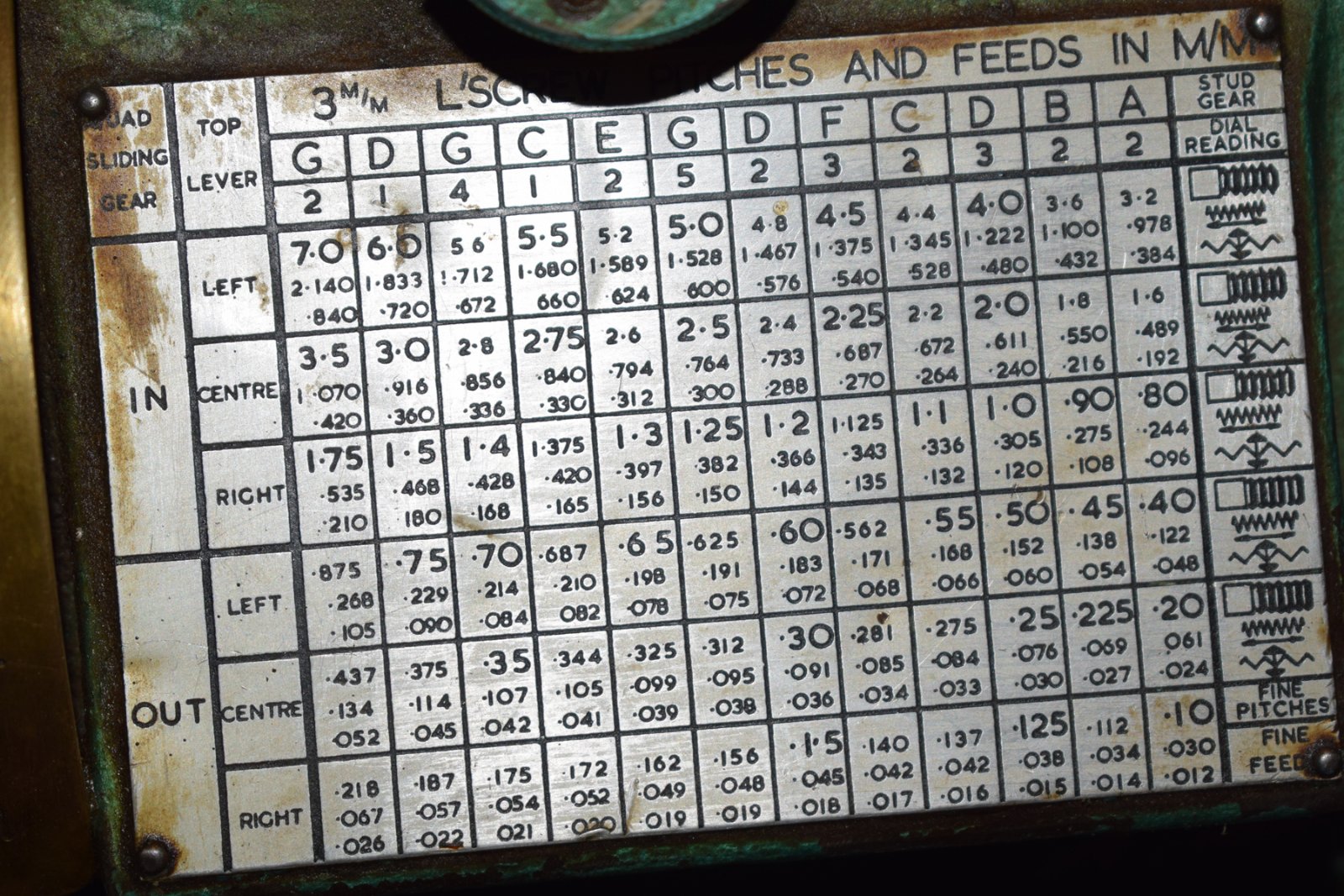

- Hi could any body throw some light on the top line labelled "stud Gear" when selecting feeds. Are they referring to "change gears". I can find no references anywhere to the ABCDEFG to which it alludes
- DSC_1112.jpg (433.89 KiB) Viewed 9512 times
Feed speed chart
Moderators: Martin, Steve, Mr Magoo
-
- Posts: 28
- Joined: Sun 15 Sep , 2019 14:47 pm
- Hardware/Software: Denfird viceroy lathe
- Location: Bolton lancs
-
- CNC Expert
- Posts: 119
- Joined: Wed 11 Aug , 2010 14:17 pm
- Hardware/Software: An old Viceroy with a half installed invertor drive,(when I can decide where to put the control pushbuttons I will wire it up properly)
A WMD25V mini mill.
Tractor, Bobcat 320, and Dumper truck.
7 sheds, about 5 (?) mowers. etc, etc. - Location: Scotland !
Re: Feed speed chart
Hi,
If you open the change gear cover at the left end of the lathe there should be a " parking " stud with a collection of gears on it, towards the rear.
If you have these gears, and examine them you will find they are marked with letters, A to G, if you don't have them you are in a bit of trouble !
Regards,
Les.T.
If you open the change gear cover at the left end of the lathe there should be a " parking " stud with a collection of gears on it, towards the rear.
If you have these gears, and examine them you will find they are marked with letters, A to G, if you don't have them you are in a bit of trouble !
Regards,
Les.T.
-
- Posts: 28
- Joined: Sun 15 Sep , 2019 14:47 pm
- Hardware/Software: Denfird viceroy lathe
- Location: Bolton lancs
Re: Feed speed chart
Hi Les
Not only do I not have the gears but also there doesnt appear to be a stud on which they should be hung.
Were do you position the gears (if you have them)
Not only do I not have the gears but also there doesnt appear to be a stud on which they should be hung.
Were do you position the gears (if you have them)
-
- CNC Expert
- Posts: 156
- Joined: Tue 03 Jun , 2014 15:20 pm
- Hardware/Software: None. I own a pre CNC Denford 280 Synchro lathe.
Re: Feed speed chart
Don'[t worry about the stud. Theres supposed to be one inside the hinged cover on which are stored the spare gears A-G, but my 280 Synchro didn't have one from new. Its a convenient storage spot, so I fitted one. it also makes it much harder to lose them.
Not having the gears is a problem, as you've already been told. They should be 'A' 16T, 'B' 18T, 'C' 22T, 'D' 24T, 'E' 26T, 'F' 27T, 'G' 35T.
If you remove the gear from the end of the tumbler gear output shaft, you should find that it is one of these, the letter will be clearly stamped on it. They are 16DP, 20 degree pressure angle, which is the modern standard, so if you have to get replacements from HPC or Moffet gears, the teeth will be the right shape.
Richard
Not having the gears is a problem, as you've already been told. They should be 'A' 16T, 'B' 18T, 'C' 22T, 'D' 24T, 'E' 26T, 'F' 27T, 'G' 35T.
If you remove the gear from the end of the tumbler gear output shaft, you should find that it is one of these, the letter will be clearly stamped on it. They are 16DP, 20 degree pressure angle, which is the modern standard, so if you have to get replacements from HPC or Moffet gears, the teeth will be the right shape.
Richard
-
- CNC Guru
- Posts: 396
- Joined: Mon 20 Nov , 2006 18:19 pm
- Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
- Location: East Midlands, UK
Re: Feed speed chart

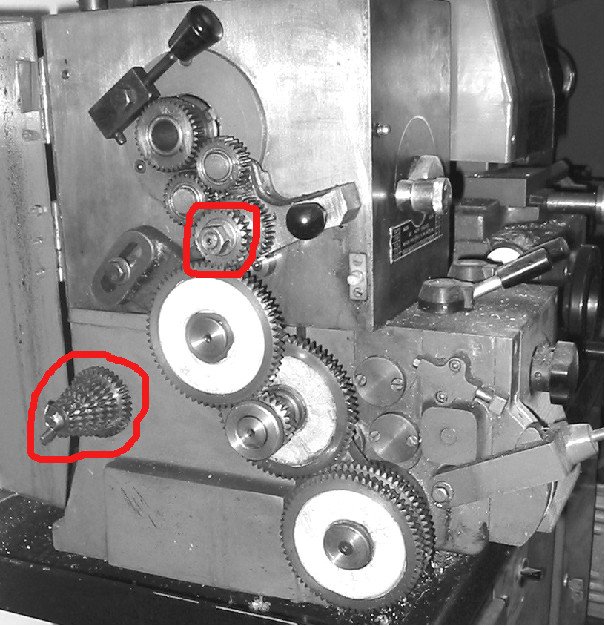

As in attached picture - the stud with the stack of unused gears is circled lower left, and the stud gear in use is circled in the centre.
Andy
Andy
- Attachments
-
- Stud Gears
- stud gear.jpg (101.99 KiB) Viewed 9500 times
-
- Posts: 28
- Joined: Sun 15 Sep , 2019 14:47 pm
- Hardware/Software: Denfird viceroy lathe
- Location: Bolton lancs
Re: Feed speed chart
Hi Richard
Thanks for the info.
Will get hold of my vendor and see if he can shed some light on whats happened to the change gears (fingers crossed)
Thanks for the info.
Will get hold of my vendor and see if he can shed some light on whats happened to the change gears (fingers crossed)
-
- Posts: 28
- Joined: Sun 15 Sep , 2019 14:47 pm
- Hardware/Software: Denfird viceroy lathe
- Location: Bolton lancs
Re: Feed speed chart
Hi Andy removed the stud gear on my lathe as per marked photo.
No letter on it just the number 24 which from your description makes it the "D" gear.
Does this mean I can only use the combination of feeds that has the D listed on the plate.
Regards Art
No letter on it just the number 24 which from your description makes it the "D" gear.
Does this mean I can only use the combination of feeds that has the D listed on the plate.
Regards Art
-
- CNC Guru
- Posts: 396
- Joined: Mon 20 Nov , 2006 18:19 pm
- Hardware/Software: 280 VS lathe, Denford Senior E-type mill, Senior Major Universal Mill
- Location: East Midlands, UK
Re: Feed speed chart
Correct - but that still gives you as good a range of feeds as you'll need for most jobs (as amateurs we don't need to optimise speed / feed rates) and a lot of the common metric thread pitches.Artysmarty wrote: ↑Tue 15 Oct , 2019 13:16 pmDoes this mean I can only use the combination of feeds that has the D listed on the plate.
Andy
-
- Posts: 28
- Joined: Sun 15 Sep , 2019 14:47 pm
- Hardware/Software: Denfird viceroy lathe
- Location: Bolton lancs
Re: Feed speed chart
Thanks for that Andy
