Fanuc 21i - 1004 Spindle Drive Fault

Post by bradders » Fri 24 Apr , 2009 8:20 am

Customer has a 1004 Spindle Drive Fault

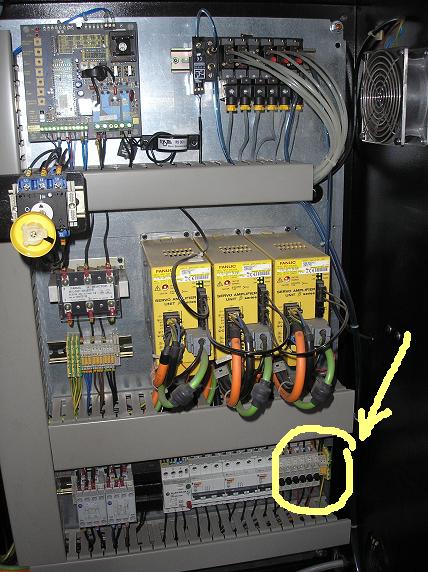

1. All fuses checked - found OK. (See picture)

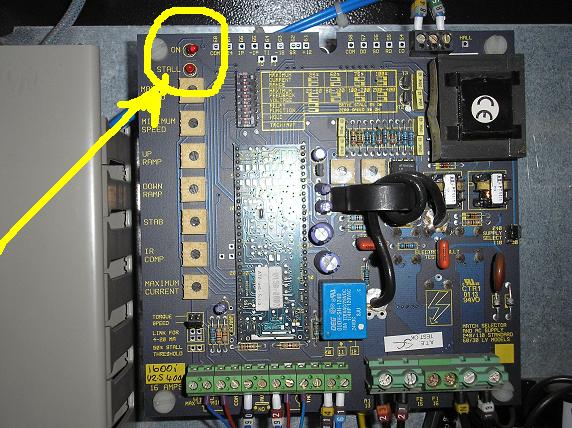

2. The drive card LED showing power ON (See picture).

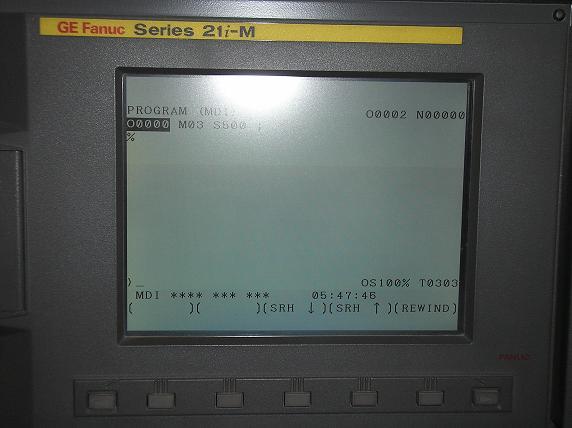

3. When any spindle RPM is given............(See piture).....

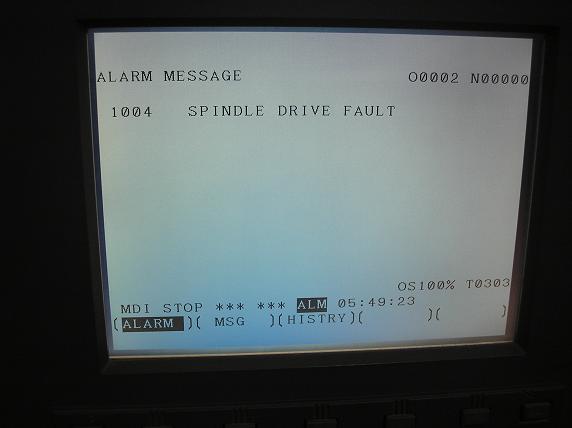

4. Alarm message - 1004 SPINDLE DRIVE FAULT appears on the screen, freezing the controls (See picture)
Attachments
Alarm Message.JPG
Alarm Message.JPG (24.92 KiB) Viewed 7731 times
Spindle Command.JPG
Spindle Command.JPG (34.62 KiB) Viewed 7732 times
Power-LED ON.JPG
Power-LED ON.JPG (78.03 KiB) Viewed 7733 times

User avatar
bradders
CNC Guru
CNC Guru
Posts: 1251
Joined: Mon 13 Feb , 2006 12:35 pm
Location: Brighouse, England
Contact:

Post by bradders » Fri 24 Apr , 2009 8:42 am

The 1004 Spindle Drive Fault alarm is triggered when a STALL or ZERO occurs (See diagram below) this then removes the 24V (Terminal 12) from terminal 10 and redirected onto terminal 11, via a change over contact.

To clear the fault you can remove the wire from terminal 10 and reposition on terminal 11. This will allow you to power up the Triac and do some problem solving with an electrical meter. i.e. is there a Spindle Analogue voltage on terminal 3, is there 24V on the RUN terminal 7 etc



Sprint Spindle Drive Manual.

viewtopic.php?t=2017
Attachments

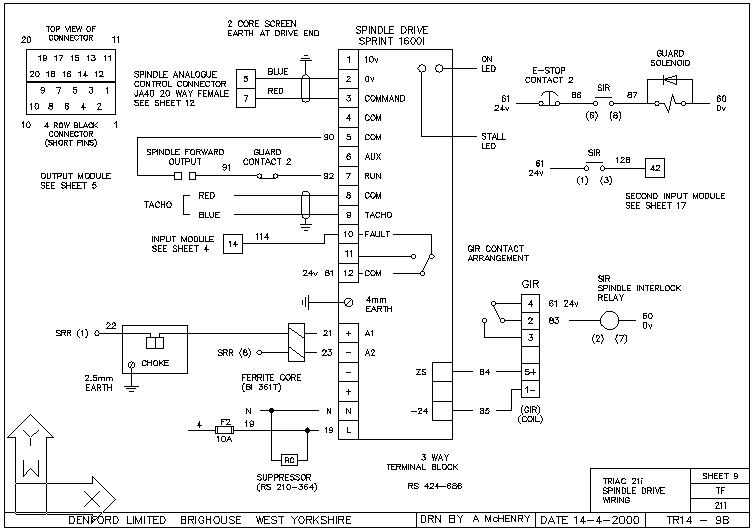

Sprint 1600i wiring (TR14 -9B).JPG
Sprint 1600i wiring (TR14 -9B).JPG (68.32 KiB) Viewed 7728 times

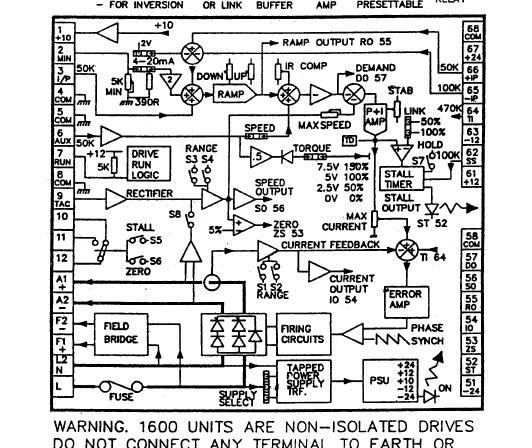

Sprint Spindle drive layout.JPG
Sprint Spindle drive layout.JPG (71.08 KiB) Viewed 7729 times
