 Post subject: What is this boxford thing for ?
PostPosted: Mon 10 May , 2010 8:44 am
Offline
Site Admin
User avatar

Joined: Fri 10 Feb , 2006 12:40 pm
Posts: 3584
Location: Sunny Brighouse Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.

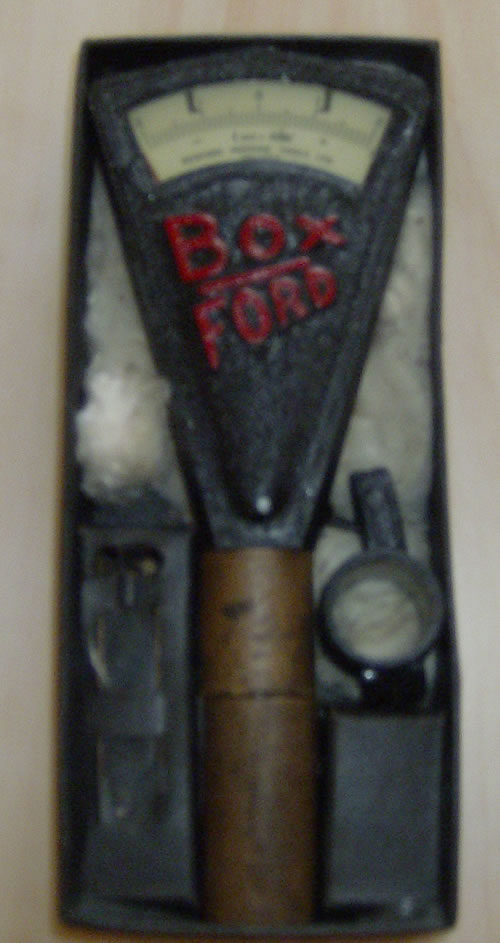

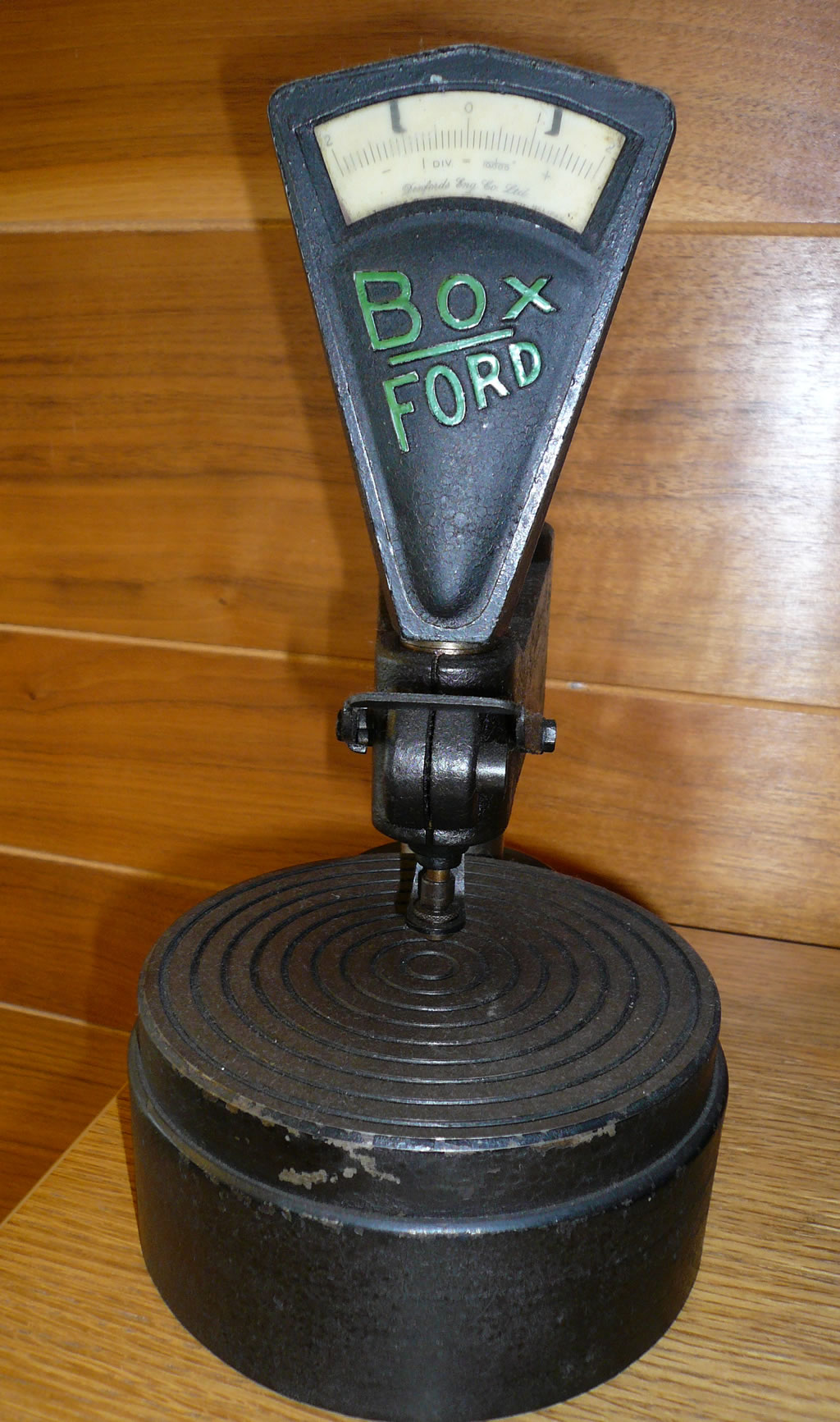

Someone has emailed asking us what this gauge could be for:


Attachments:
boxford-unknown.jpg [ 66.27 KiB | Viewed 6164 times ]
boxford-unknown2.jpg [ 23.45 KiB | Viewed 6164 times ]
Top
 Profile

 Post subject: Re: What is this boxford thing for ?
PostPosted: Mon 10 May , 2010 12:10 pm
Offline
CNC Guru
CNC Guru
User avatar

Joined: Tue 21 Feb , 2006 16:15 pm
Posts: 1224
Location: Denford UK
I Believe it is a clock. If you press in on the plunger at the bottom the dial should indicate the movement.

The brackets are to allow mounting on a Magmount base I think??


Top
 Profile

 Post subject: Re: What is this boxford thing for ?
PostPosted: Mon 10 May , 2010 12:23 pm
Offline
CNC Guru
CNC Guru
User avatar

Joined: Tue 21 Feb , 2006 16:15 pm
Posts: 1224
Location: Denford UK
This link shows a bit about Denford and the Boxford Link.

I believe the part you have was made when the two companies were one.


http://www.lathes.co.uk/viceroy/


Top
 Profile

 Post subject: Re: What is this boxford thing for ?
PostPosted: Mon 10 May , 2010 13:12 pm
Offline
Site Admin
User avatar

Joined: Fri 10 Feb , 2006 12:40 pm
Posts: 3584
Location: Sunny Brighouse Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.

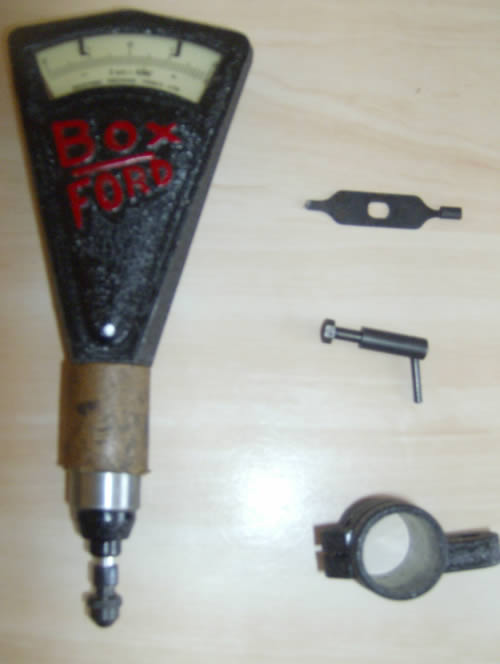

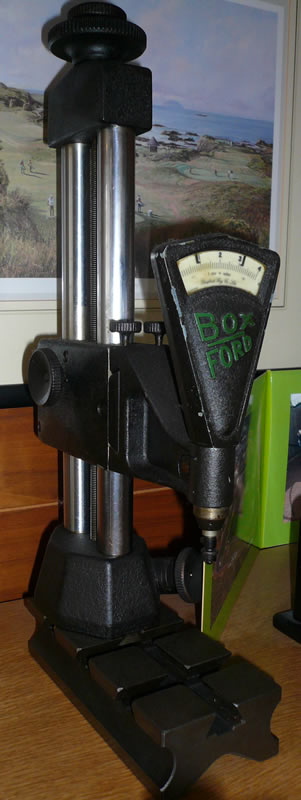

It appears to be a inspection Dial Test Indicator - looking at these below, probably used to check flatness / runout
There are a couple hanging around in Andrew Denford's office:


Attachments:
boxford-dti-4.jpg [ 306.5 KiB | Viewed 6157 times ]
boxford-dti-3.jpg [ 56.8 KiB | Viewed 6157 times ]
Top
 Profile

 Post subject: Re: What is this boxford thing for ?
PostPosted: Mon 10 May , 2010 16:18 pm
Offline
CNC Guru
CNC Guru
User avatar

Joined: Tue 21 Feb , 2006 16:15 pm
Posts: 1224
Location: Denford UK
If you look Closely you can see the "Denford Engineering Co Ltd" on the dial!


Top
 Profile

 Post subject: Re: What is this boxford thing for ?
PostPosted: Wed 03 Feb , 2016 0:51 am
Offline

Joined: Sat 31 Oct , 2015 21:33 pm
Posts: 31
Location: Redhill, Surrey. U.K. Hardware/Software: Denford Triac with original hardware/software
Denford Orac with original hardware/software
Hi Guys,

This bit of kit is a “Comparator”, it compares your turned or milled part to a given size.

You set the Comparator by placing a pack of slips of known size between the clock plunger (pointed end) and the base. The Comparator is then lowered onto the slips until the indicator is in the ZERO or centre position. The slips are removed and are replaced with you turned bar etc and the Comparator will read off the difference in size between your bar and the pack of slips of known size. With this model you will have to be within + or – 0.002” and is accurate to tenths of a thou.

It is an early form of height gauge, something we used back in the dark ages. :)
