Micro Mill Motor Speed

Post by Jeff_HATC » Sun 23 Oct , 2011 15:18 pm

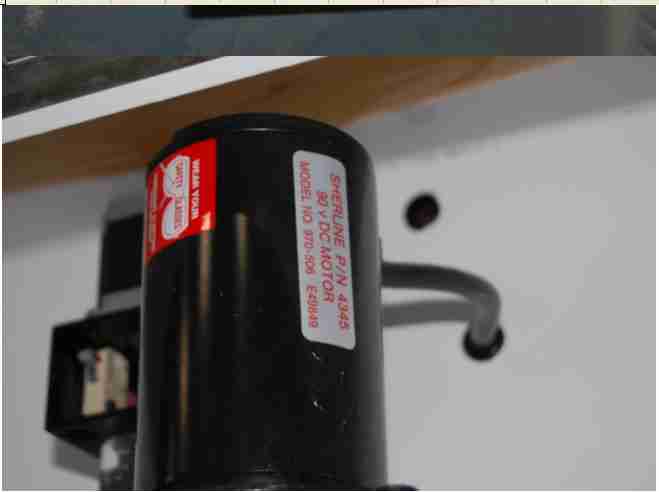

Out Micromill 2000 has a spindle motor in it marked Sherline.

The spindle M03/M05 works under program control, however the S command does nothing, nor does the spindle speed over-ride on the front of the machine.

Is this spindle motor a fixed speed?

If so, what is the rpm if using the top set of pullies...2,800?

Was the orginal motor that came on this machine capable of varialbe speed?

Is there anyway to make this Sherline motor a programmable speed motor?

User avatar
Denford Admin
Site Admin
Posts: 3642
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: Micro Mill Motor Speed

Post by Denford Admin » Tue 25 Oct , 2011 8:56 am

Was the orginal motor that came on this machine capable of varialbe speed?
Yes it should be - post photos of the machine electrical cabinet and the current motor - it sounds like someone has made the motor run directly from the mains - maybe because the drive had stopped working ?

Jeff_HATC
Posts: 20
Joined: Tue 27 Sep , 2011 11:47 am

Re: Micro Mill Motor Speed

Post by Jeff_HATC » Tue 25 Oct , 2011 14:43 pm

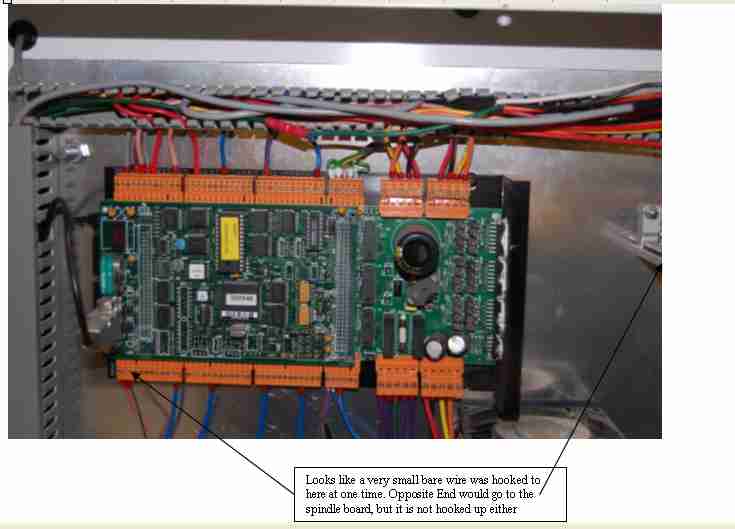

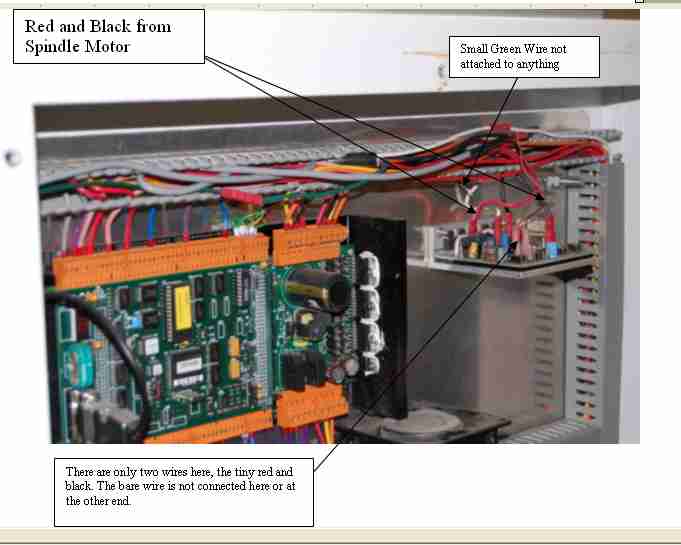

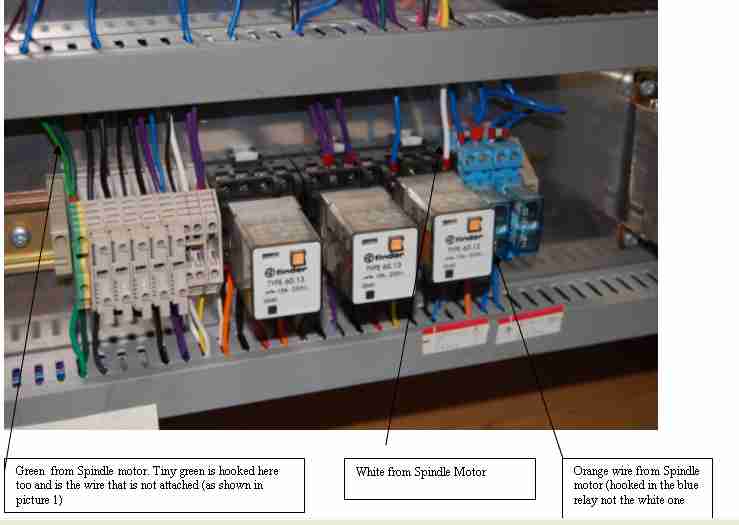

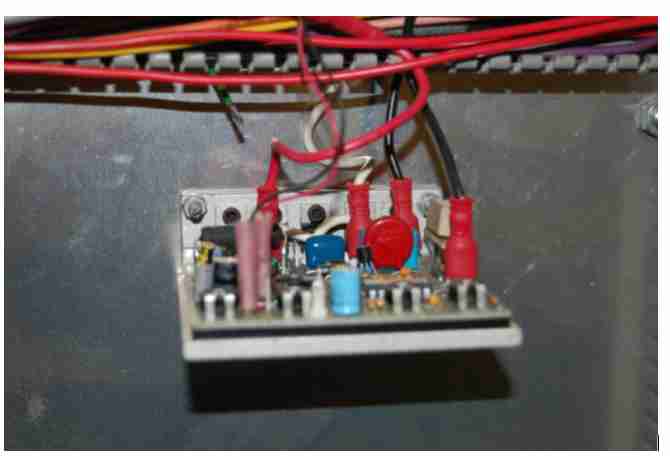

Ok, here are some photos
I did verify that the spindle over ride knob does move the slider on the computer. It doesn't change the spindle speed, but the potentiometer part of it is working.

When using a M03 with any S command, I get what I think is full RPM Spindle reguardless of where the knob is set.
Attachments

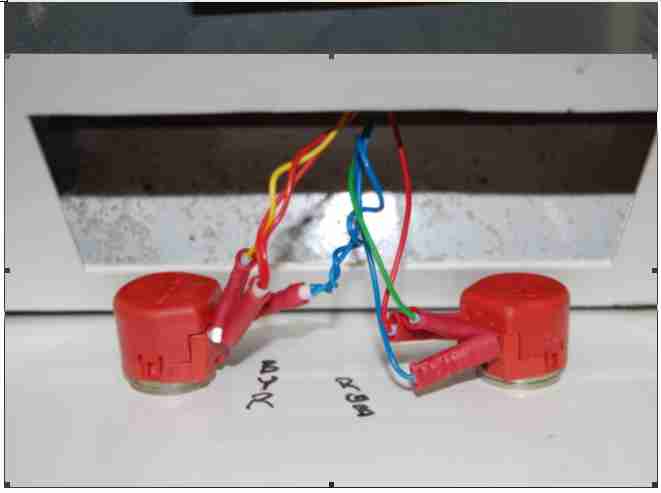

Bare wire not hooked, Green wire dangles (at top)

Martin
CNC Guru
CNC Guru
Posts: 1906
Joined: Fri 24 Feb , 2006 17:09 pm
Location: Brighouse

Re: Micro Mill Motor Speed

Post by Martin » Tue 25 Oct , 2011 16:55 pm

It sounds like it has been modified at some point.

It may be that the spindle analogue may faulty. The easiest way to check is to measure accross terminals 1 & 2 1672on TB7. It should read 0 to 10 volts DC depending on the speed requested.

Attached is a link to the electrical drawing.Schematic Micromill.pdf

viewtopic.php?f=36&t=2929

Jeff_HATC
Posts: 20
Joined: Tue 27 Sep , 2011 11:47 am

Re: Micro Mill Motor Speed

Post by Jeff_HATC » Tue 25 Oct , 2011 22:06 pm

Based on what you said and the wiring diagram, I found that the wires were hooked to 1 and 3 rather than 1 and 2. Put them on the right terminals and it now works correctly. Thanks for your help
