Depth setting Gauge for PCB and Floating Head

Post by Steve » Fri 23 Feb , 2018 16:02 pm

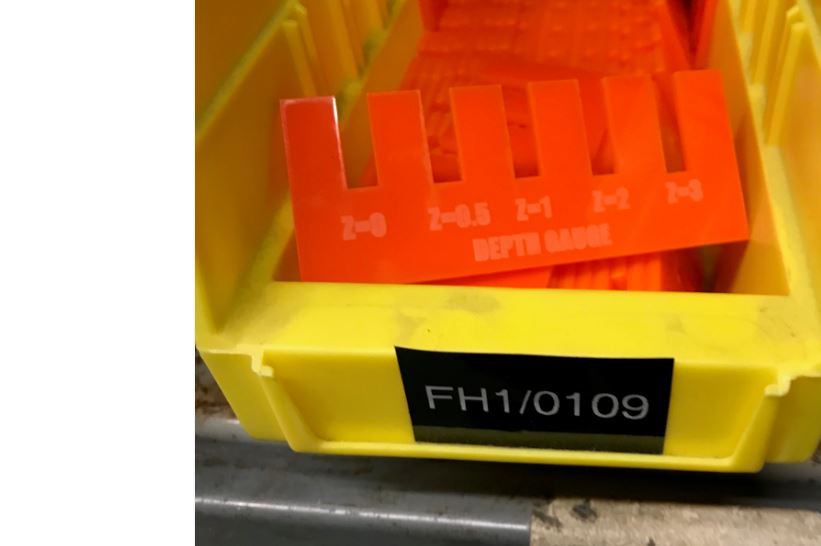

The depth gauge used for the PCB Engraver and floating head just setts the tools to different depths.

These can be simply Laser Cut .

The Part Number is FH1/0109

The attached file can be downloaded and cut.
Attachments
depth gauge.DXF
(114.92 KiB) Downloaded 355 times
