PCB Engraver

Post by mdudas » Tue 27 Oct , 2009 11:13 am

Everything I pull into the PCB engraving software is smaller than it was.

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1286
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: PCB Engraver

Post by Steve » Tue 27 Oct , 2009 11:33 am

Please can you supply more information?

Could you add a sample file?

Are you running in inches or metric?

How much smaller are you talking?

mdudas
Posts: 3
Joined: Thu 15 Oct , 2009 15:21 pm

Re: PCB Engraver

Post by mdudas » Tue 27 Oct , 2009 12:31 pm

everything is in metric.
It happens with DXF, JPG, and BMP
It is about 15% to 20% smaller.

User avatar
Denford Admin
Site Admin
Posts: 3592
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: PCB Engraver

Post by Denford Admin » Tue 27 Oct , 2009 16:31 pm

Are you creating .fnc files from quickcam 2D, then opening those into the PCB engraver software ?

If so, then it could be a fault in QuickCAM 2D, or a fault in the PCB software.
Can you create a .dxf of a 100m x 100m square, and send it here, along with the .fnc file you created for it. Maybe also useful to engrave it and let us know the actual size it comes out.

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1286
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: PCB Engraver

Post by Steve » Tue 27 Oct , 2009 17:42 pm

I am setting up a machine tomorrow. Can you let me know the software version you have and any sample files and I will test here.

mdudas
Posts: 3
Joined: Thu 15 Oct , 2009 15:21 pm

Re: PCB Engraver

Post by mdudas » Tue 27 Oct , 2009 19:08 pm

PCB Engraver 1-3
QuickCam 2D 1-9

Board should be 100mm x 160mm

Comes out 80mm x 135mm

Thanks for your help
Attachments
testpcb.fnc
(98.42 KiB) Downloaded 674 times

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1286
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: PCB Engraver

Post by Steve » Wed 28 Oct , 2009 9:27 am

Thanks for the information .

We will have a look at this today.

You could try a simple test for me in manual jog mode.

If you double click the mouse on the screen the tool moves to that location in X and Y.

Can you double click in each corner of the table and see if the tool moves the full travel?

User avatar
Steve
CNC Guru
CNC Guru
Posts: 1286
Joined: Tue 21 Feb , 2006 16:15 pm
Location: Denford UK

Re: PCB Engraver

Post by Steve » Wed 28 Oct , 2009 9:41 am

What package are you creating the circuit in?

Are you saving the file as Gerber then importing into the PCB software?

User avatar
Denford Admin
Site Admin
Posts: 3592
Joined: Fri 10 Feb , 2006 12:40 pm
Hardware/Software: Go to User Control Panel > Profile
Enter as much information about your CNC hardware and software as you can - it makes it easier for everyone to know what you're talking about then.
Location: Sunny Brighouse
Contact:

Re: PCB Engraver

Post by Denford Admin » Wed 28 Oct , 2009 9:48 am

Can you load this program into the PCB engraver for us (untitled.fnc attached below).

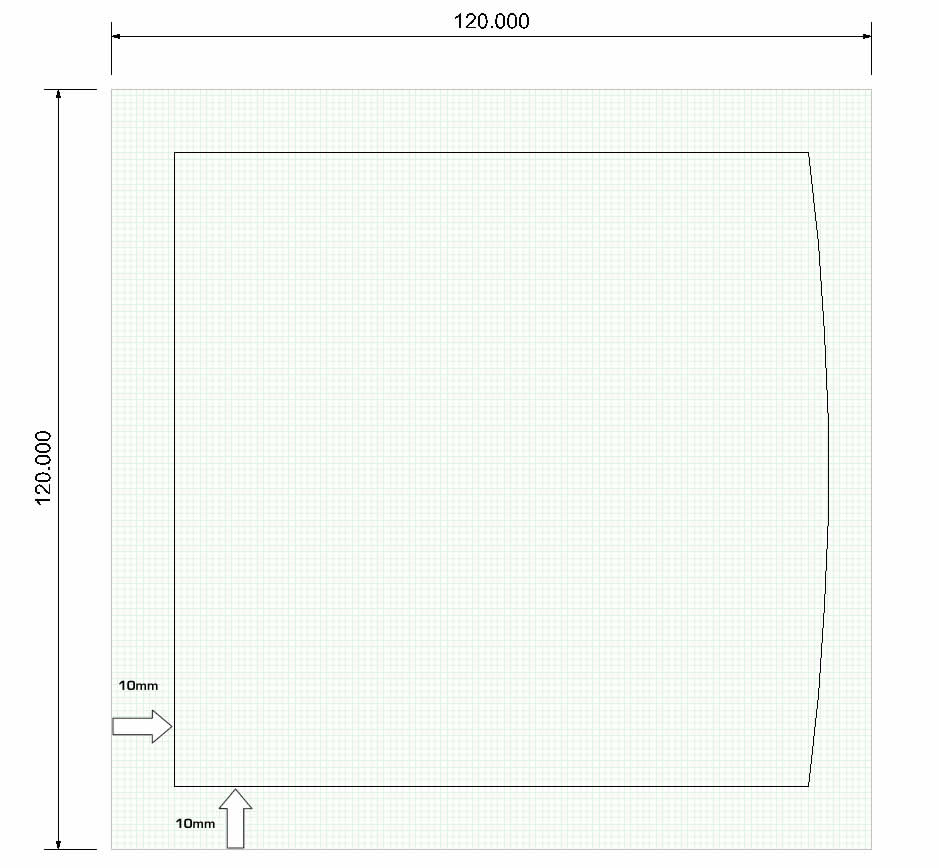

This is a 100mm(X) by 100mm(Y) square with the right hand side curved slightly
The billet size is 120mm (X) by 120mm (Y)
if it looks right in the PCB software, and cuts to size then there must be something wrong with the output from QuickCAM - screenshots of your TestPCB design would be useful
Attachments
untitled.fnc
(691 Bytes) Downloaded 593 times
