Search found 526 matches

by angel-tech
Wed 07 Feb , 2018 13:38 pm
Forum: Denford Classifieds
Topic: Orac for sale
Replies: 7
Views: 848

Re: Orac for sale

ok, thanks for letting me know, good luck with the search. There is a cyclone on ebay atm.
by angel-tech
Mon 05 Feb , 2018 19:47 pm
Forum: Denford Classifieds
Topic: Orac for sale
Replies: 7
Views: 848

Re: Orac for sale

Sorry the pics are orientated wrongly, that was the only way they would upload within the size limit.
by angel-tech
Sat 03 Feb , 2018 10:21 am
Forum: Denford Classifieds
Topic: Orac for sale
Replies: 7
Views: 848

Re: Orac for sale

I'll dig it out and post some up today.
by angel-tech
Thu 01 Feb , 2018 14:41 pm
Forum: Denford Classifieds
Topic: Orac for sale
Replies: 7
Views: 848

Orac for sale

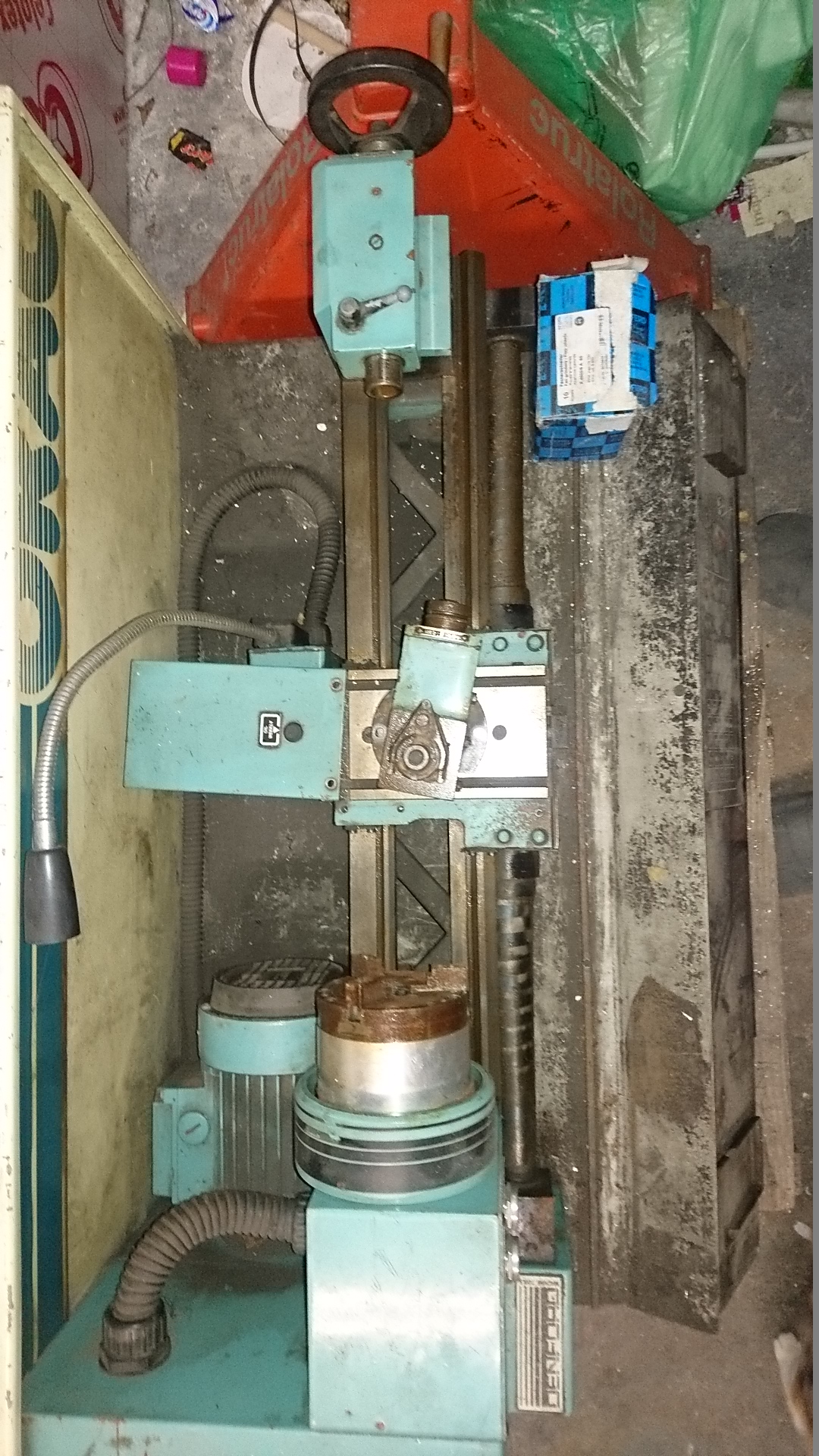

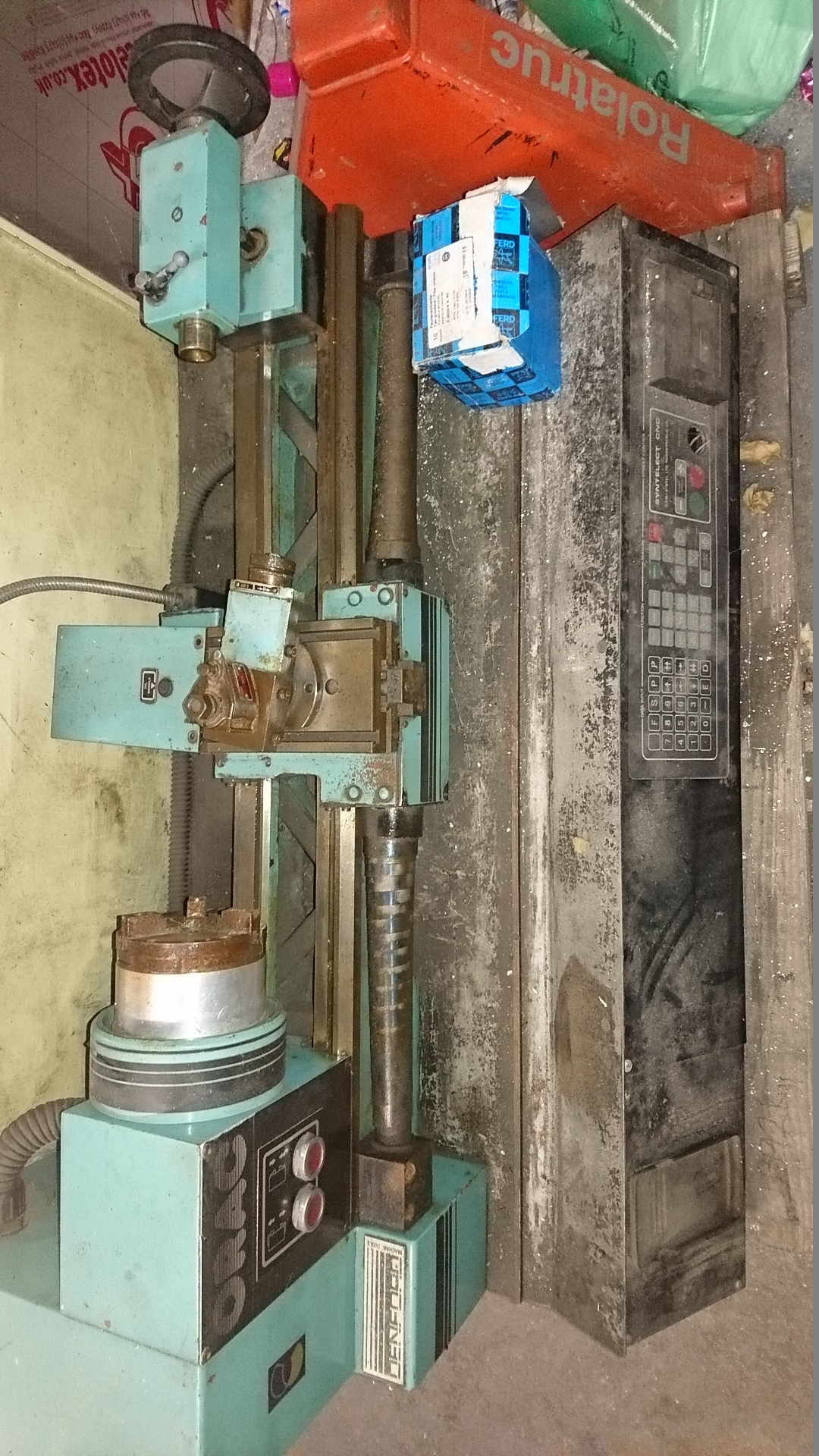

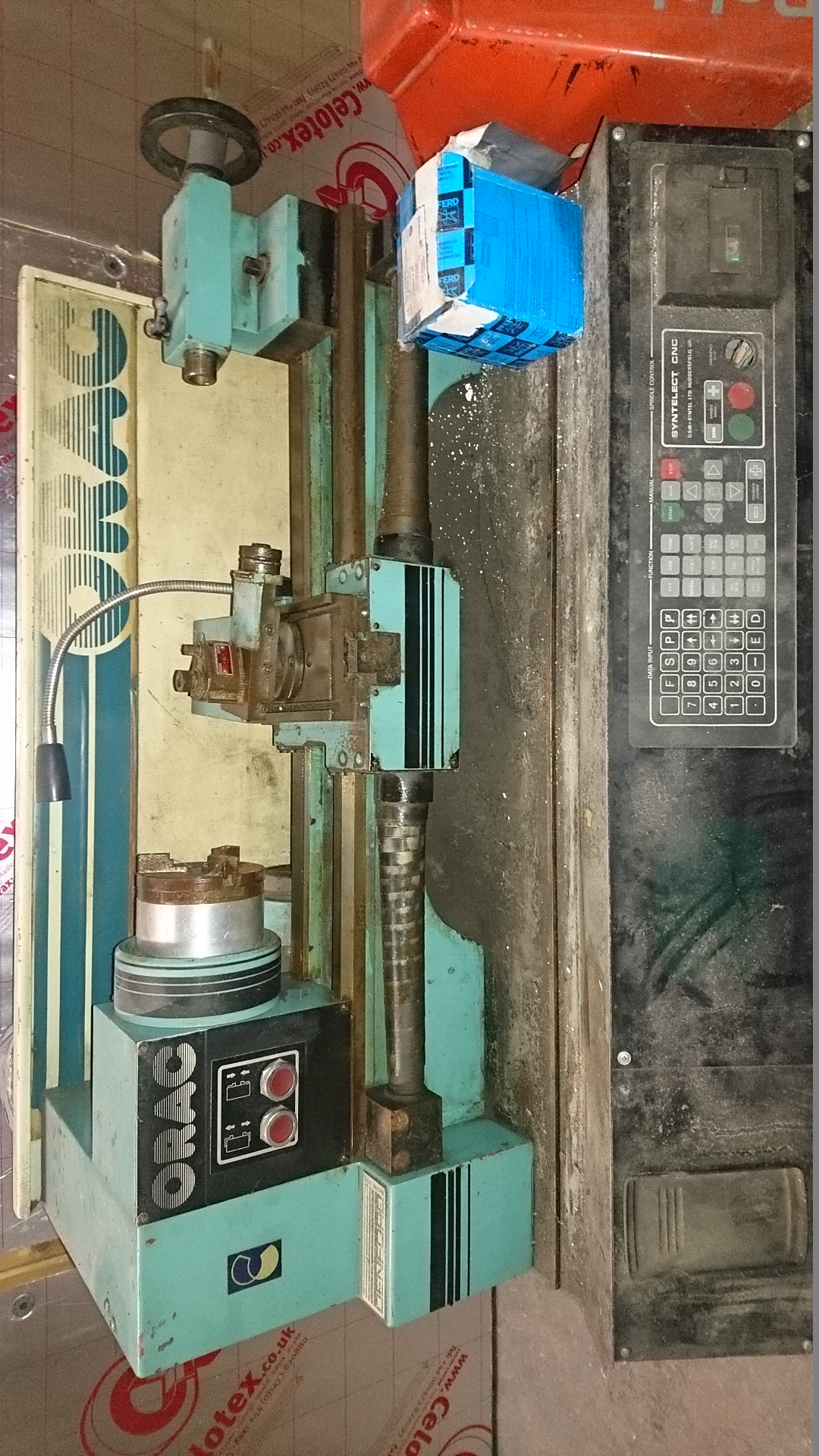

Denford Orac for sale, air chuck. Has been stored for a while so may need a clean up. Offers accepted.
by angel-tech
Wed 15 Mar , 2017 6:24 am
Forum: Machines
Topic: ATC locking up.
Replies: 3
Views: 1498

Re: ATC locking up.

it's probably the reduction gearbox that sits under the motor. One of the gears gets damaged over time and stalls the motor.
by angel-tech
Wed 15 Mar , 2017 5:55 am
Forum: Micromill / Microturn
Topic: Spindle control help please
Replies: 8
Views: 1491

Re: Spindle control help please

Be very careful with the speed control. The Denford spindle drive requires a DC ISOLATED 0-10v input to control it's speed, this must not be connected to ground in any way. DIYCNC make a board that can control the spindle board from a computer, i'll try to find it and add a link.
by angel-tech
Mon 23 Jan , 2017 2:16 am
Forum: Orac
Topic: Orac Mach3 Z stuttering when attempting to thread cut
Replies: 3
Views: 844

Re: Orac Mach3 Z stuttering when attempting to thread cut

try putting a pause in the code after the spindle start and before the first move, something around 5 seconds. This allows the spindle to get up to speed before the code moves the axis.
by angel-tech
Fri 30 Dec , 2016 1:46 am
Forum: Triac
Topic: X Axis Backlash Fanuc Triac
Replies: 3
Views: 6808

Re: X Axis Backlash Fanuc Triac

first off download the triac assembly diagrams and you can see what is behind the x axis pulley. Remove the motor with the plate still attached and then the ballscrew pulley. (there are two grub screws holding it on) Behind the pulley is the bearing assembly which is held in by a tab nut. Fold the t...
by angel-tech
Sat 10 Dec , 2016 2:56 am
Forum: Cyclone
Topic: Cyclone cut thread problem.
Replies: 8
Views: 1613

Re: Cyclone cut thread problem.

try generating your threading program and look at the code, then change the threading g code for the one that your machine accepts.
by angel-tech
Wed 07 Dec , 2016 23:50 pm
Forum: Cyclone
Topic: Cyclone cut thread problem.
Replies: 8
Views: 1613

Re: Cyclone cut thread problem.

i think there are several threading g codes and the software gives the wrong one for the controller. Try editing the g code with the other threading g codes
by angel-tech
Thu 20 Oct , 2016 23:43 pm
Forum: Triac
Topic: Replacing X and Y axis switch wiring?
Replies: 5
Views: 1371

Re: Replacing X and Y axis switch wiring?

the preload should be in the nuts sizing rather than the position of the two nuts to each other. I would have thought the second nut is for extending the life and load of the screw.

This preloading of two opposing nuts is common with leadscrews on mill tables, where the nuts use the leadscrew thread.
by angel-tech
Wed 19 Oct , 2016 22:59 pm
Forum: Triac
Topic: Replacing X and Y axis switch wiring?
Replies: 5
Views: 1371

Re: Replacing X and Y axis switch wiring?

hi Moray, i believe the wiring is put in when the base is open, so you will find it a shade difficult to do on a complete triac.
by angel-tech
Sun 17 Jul , 2016 13:57 pm
Forum: Novamill
Topic: A low profile, flat modular clamping system/vice for Novamil
Replies: 9
Views: 3081

Re: A low profile, flat modular clamping system/vice for Nov

the vices sold with the boxford 190 and 240 are pretty good for the novamill, the one supplied with the 190 is slightly smaller. If you go on the boxford website you can see the exploded view of the vice.
by angel-tech
Fri 20 May , 2016 12:47 pm
Forum: Triac
Topic: Triac PC spindle upgrade
Replies: 1
Views: 1088

Re: Triac PC spindle upgrade

i had some r8 bridgeport spindles reground to 30 taper, they're pretty close on the taper.
by angel-tech
Sun 27 Mar , 2016 15:42 pm
Forum: Triac
Topic: X axis Issue (videos inside)
Replies: 12
Views: 2976

Re: X axis Issue (videos inside)

check the x and y gibs and drive end bearings
by angel-tech
Fri 25 Mar , 2016 12:20 pm
Forum: Triac
Topic: X axis Issue (videos inside)
Replies: 12
Views: 2976

Re: X axis Issue (videos inside)

Looks like the right one, how about the grub screws holding the pulley on could it be proud of the pulley surface.
by angel-tech
Fri 25 Mar , 2016 1:51 am
Forum: Triac
Topic: X axis Issue (videos inside)
Replies: 12
Views: 2976

Re: X axis Issue (videos inside)

Have you got the correct belt, you may have a metric belt on an imperial pulley.
by angel-tech
Sat 30 Jan , 2016 12:12 pm
Forum: Novamill
Topic: Novamill Y-Drive slips
Replies: 20
Views: 5137

Re: Novamill Y-Drive slips

i would check the angular contact bearings on the x axis before attempting any work on the ballscrew.
by angel-tech
Sun 27 Dec , 2015 11:49 am
Forum: Novamill
Topic: Bringing my Novamill back to life
Replies: 34
Views: 10553

Re: Bringing my Novamill back to life

YOU MUST drive this 0-10v input from a DC ISOLATED source. If you connect either of those two wires to ground you will fry something. Opto isolation is not the same as DC ISOLATION. DO NOT make this mistake, as you will fry either the sprint board or the breakout board, sometimes both. On mycncuk fo...
by angel-tech
Fri 11 Dec , 2015 11:58 am
Forum: Mirac
Topic: Mirac Tool Changer
Replies: 3
Views: 1707

Re: Mirac Tool Changer

it's a fair bit of work, but yes it can be done. You may need a different version of denfords software to run it.
